OEM / ODM ： Cold Runner Injection Molding & Glasses Camera Housing+Bracket (1+1) No.23055
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Camera |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 280.000 X 270.000 X 296.000 | IMM Tonnage | 140T |
|---|---|---|---|
| Mold Weight | 132kg | Slide | 2 |
| Lifter | 4 | Part Material | PC |
| Design Software | 3D:UG 4.0, 2D:CAD | Part Weight | 2g |
| Type | Three-plates Mold |
Product Description

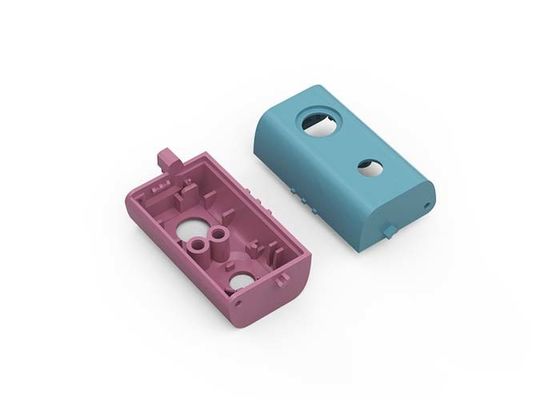

Glasses Camera
Housing+Bracket (1+1)
No.23055
[L] 280mm | [W] 270mm | [H] 296mm
| [Mold base] Standard mold base FCI2327 608080 [Standard]: LKM |
Tool life up to 500k shots | ||||
| [Net weight]: 132 kg [IMM tonnage]: 140T |
|||||
|
[Type]: Three-plates mold |
To meet the high requirements for part appearance, this is a three-plates mold requiring high injection pressure, self-degating, with on one spot on the part surface |
||||
| [Gate]: | 1. Sub gate | ||||
| 1. Sub gate | |||||
| [Surface finish]: | |||||
| Housing | Bracket | ||||
| ① A surface VDI24 etch ② Inner surface EDM with VDI24# (Charmilles) |
① A surface EDM with VDI27# (Makino) ② Gluing surface EDM with VDI21# (Makino) |
||||
| [Steel of cavity and core]: harden with 1+1/S136 [Injection/Runner Type]: Cold Runner |
|||
| [Part material / weight]: |
[Part size]: |
||||
| PC / 2g | ① 33.80 X 17.26 X 11.08mm ② 27.83 X 14.94 X 4.90mm |
||||
| Slide | Lifter |
| 2 | 4 |

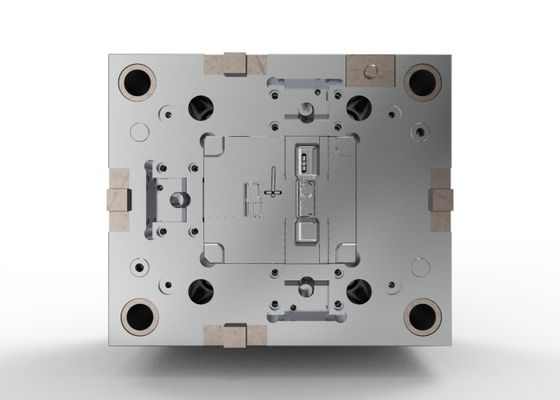

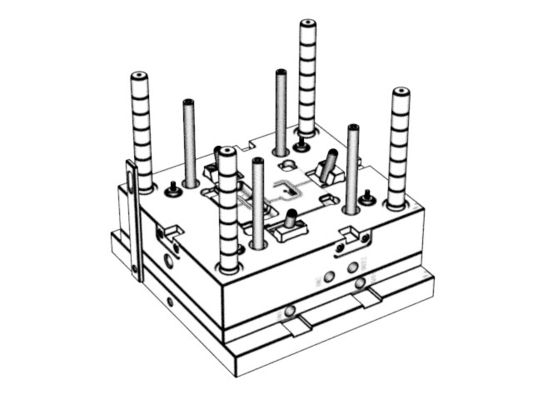

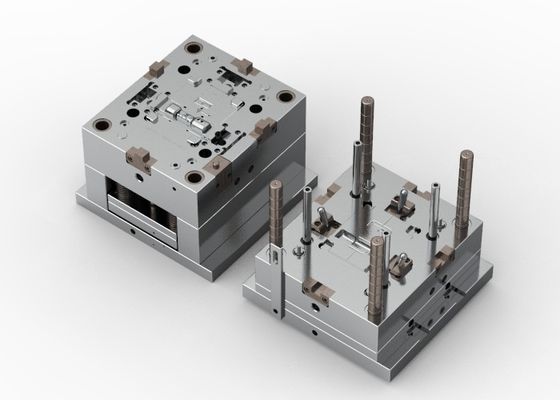

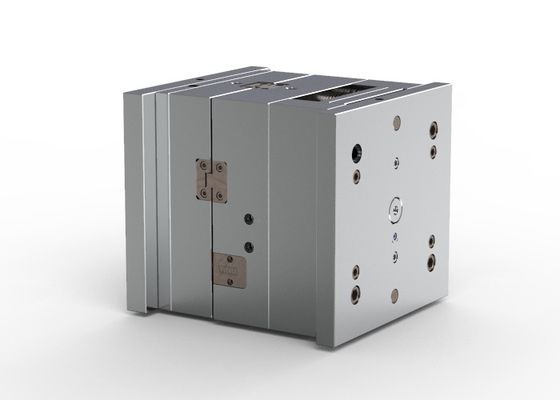

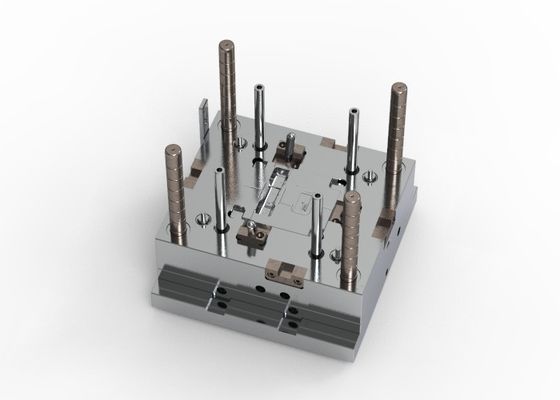

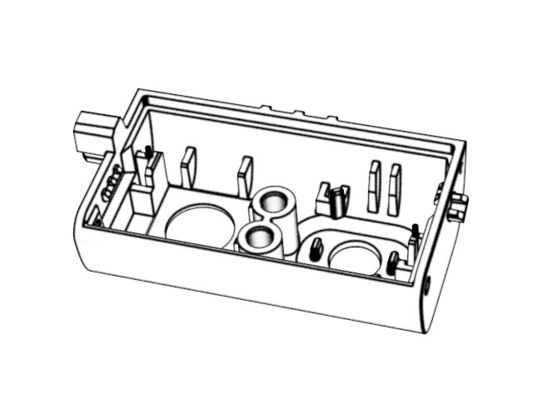

Display diagram
