OEM / ODM ： Cold Runner Injection Molding & Mobile Phone TP Trim (1*1) No.23854
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Mobile Phone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 400.00 X 450.00 X 331.00 | IMM Tonnage | 180T |
|---|---|---|---|
| Mold Weight | 370kg | Runner | Cold Runner |
| Mould Life | 500，000 Shots | Mould Base | LKM |
| Mould Material | Harden（1*4/S136） | Design Software | 3D:UG 4.0/2D:CAD |
| Gate Type | Side Gate(easy To Process) | Part Material | PC+10% GF |
| High Light | LKM Injection Moulding Die,Two Plate Injection Moulding Die,500k Shots injection moulding |
||
Product Description

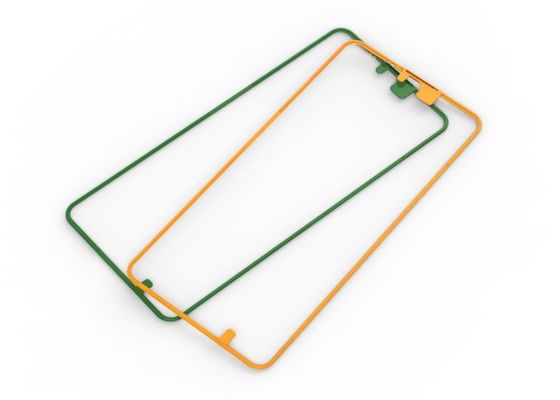

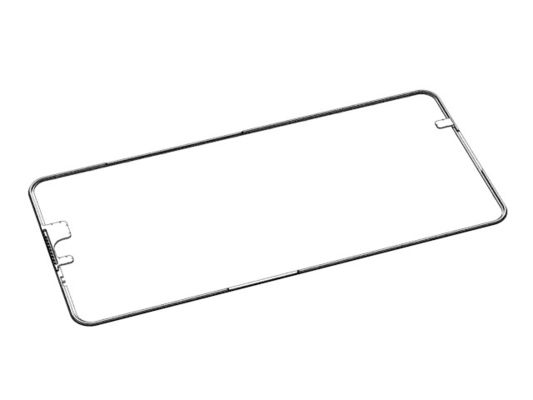

Mobile Phone TP Trim (1*1)
No.23854
Adopt standard mold base P/N: CI3545.60110100
|
|
|
|
|
|
|
|
|
[Steel of cavity and core]:Harden (1*1/S136)
[Surface finish]:
A surface polished to 1000# sandpaper
Secondary surface EDM with VDI21# (Makino)

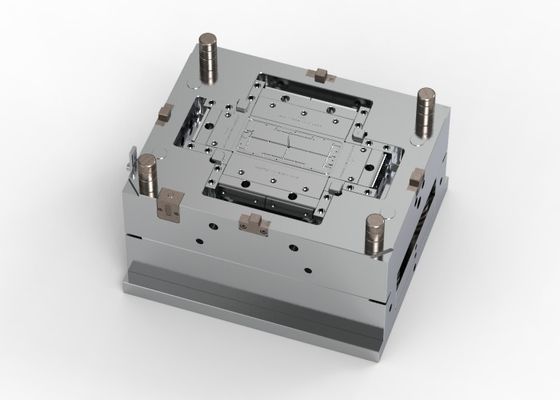

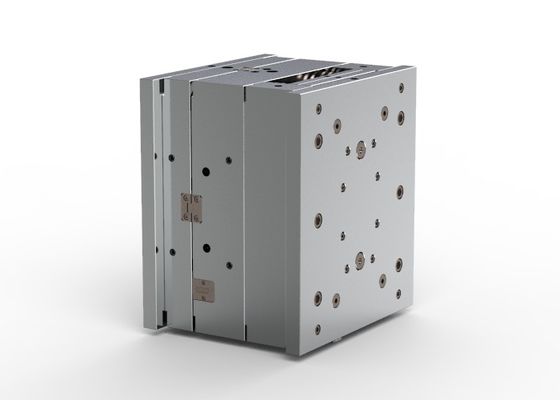

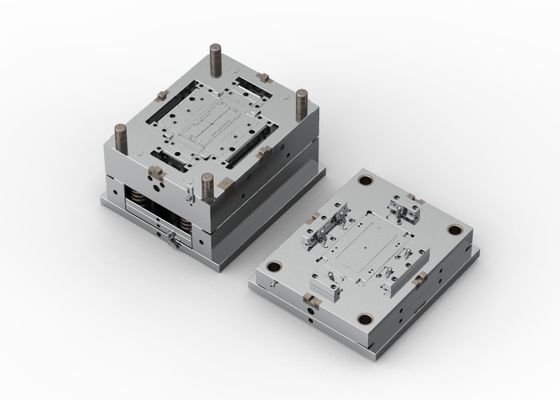

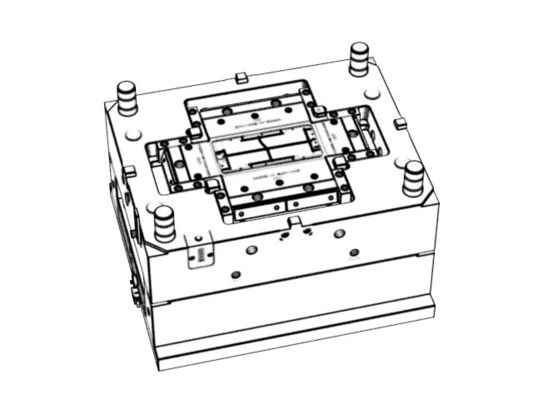

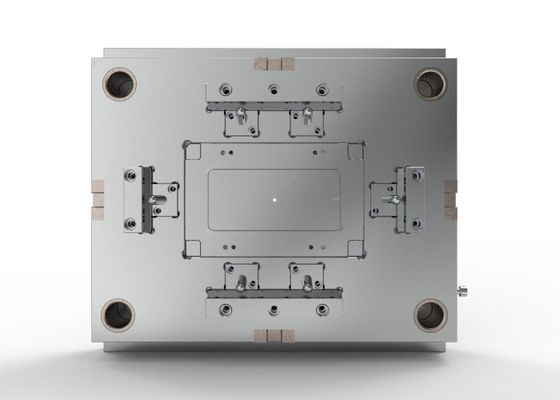

Display diagram
