OEM / ODM ： Cold Runner Injection Molding & Scan Pen Rear Cover (1*2) No.24003
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Scanning Pen |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 450 X 400 X 331 | IMM Tonnage | 140T |
|---|---|---|---|
| Mold Weight | 360KG | Standard | LKM |
| Type | Two-plates Mold | Tool Life | 500k Shots |
| Gate | Direct Gate | Part Net Weight | 6.5g |
| Part Material | PC | ||
| Highlight | LKM Dual Injection Molding,500k Shots Dual Injection Molding,140T Dual Injection Molding |
||
Product Description

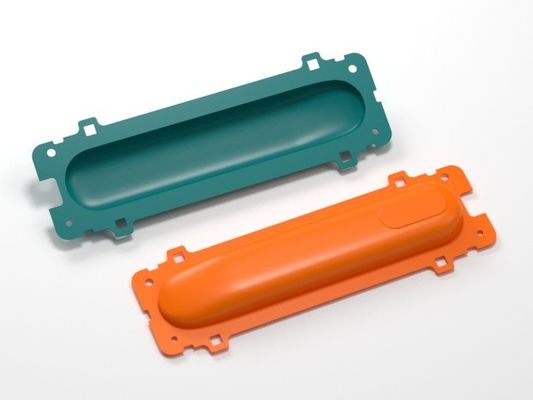

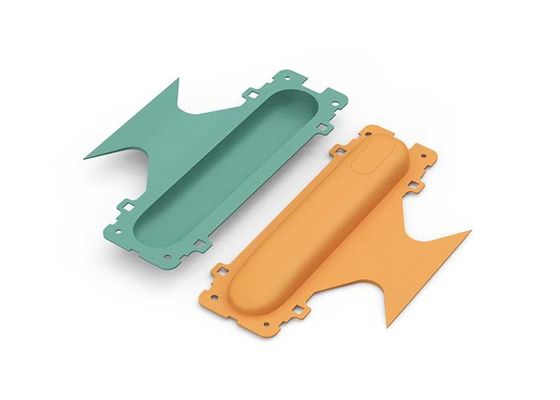

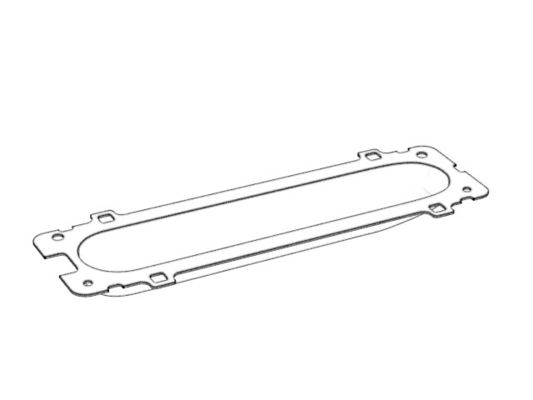

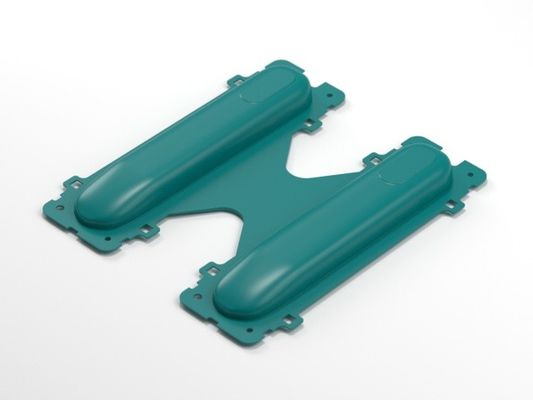

Scan Pen Rear Cover (1*2)
No.24003
|
|
||||||||||||||||
| Type: Two-plates mold | Gate: Direct gate | ||||
| Standard: LKM | Tool life: 500k shots | ||||
| ① Part material: PC ② Part size: 31.96 X 148.50 X 11.70mm ③ Part net weight: 6.5g |
|||||
| The mold is designed with cold runner and direct pin point gate; with smooth runner, uniform cavity pressure, the mold can be filled evenly in a short time. The molded part has uniform density w/o sink marks. A surface polished to SPI-A3; the cavity surface is smooth without pits. Harden the cavity and core with 1*2/S136 to increase the strength and anti-wearing performance and ensure the long tool life and high precision. | |||||||

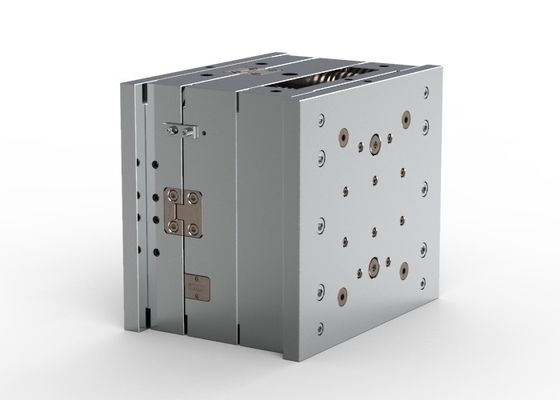

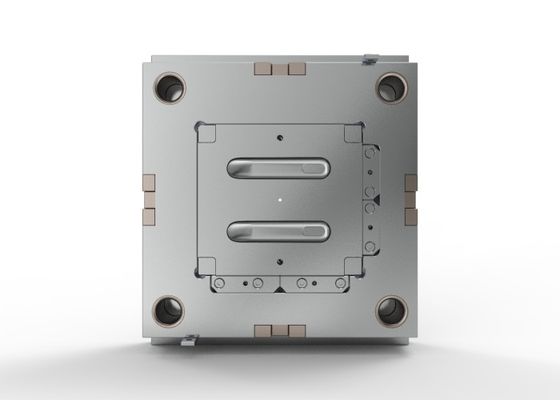

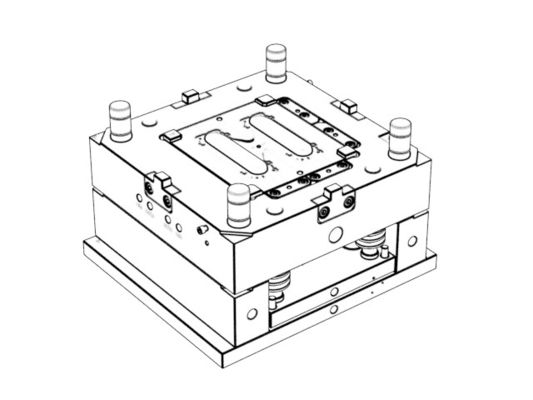

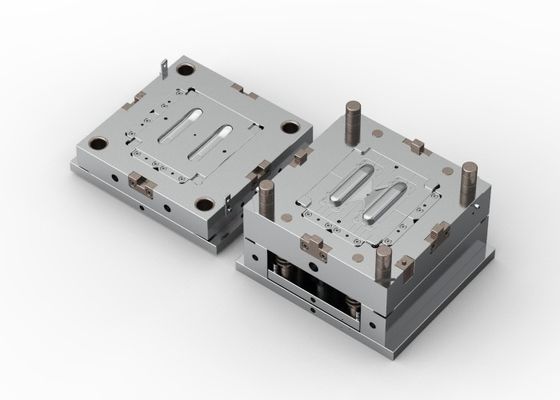

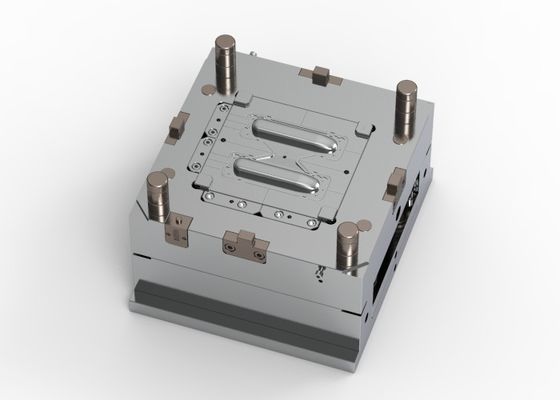

Display diagram
