OEM / ODM ： Cold Runner Injection Molding & Scanner bar (1*4) No.24004
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Scanning Pen |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 300 X 300 X 306 | IMM Tonnage | 110T |
|---|---|---|---|
| Mold Weight | 165KG | Slide | 1 |
| Gate | Pin Point Gate | Tool Life | 500k Shots |
| Standard Mold Base P/N | FCI2530.509080. | Injection Type | Cold Runner |
| Runner Type | Cold Runner | Part Material | POM |
Product Description
Scanner bar (1*4)
No.24004

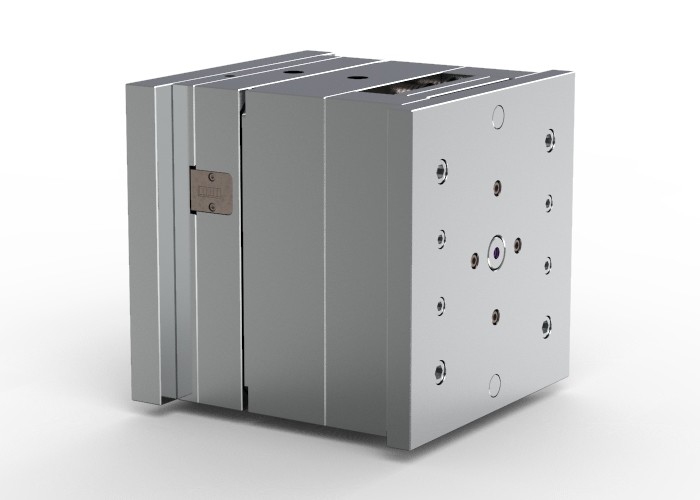

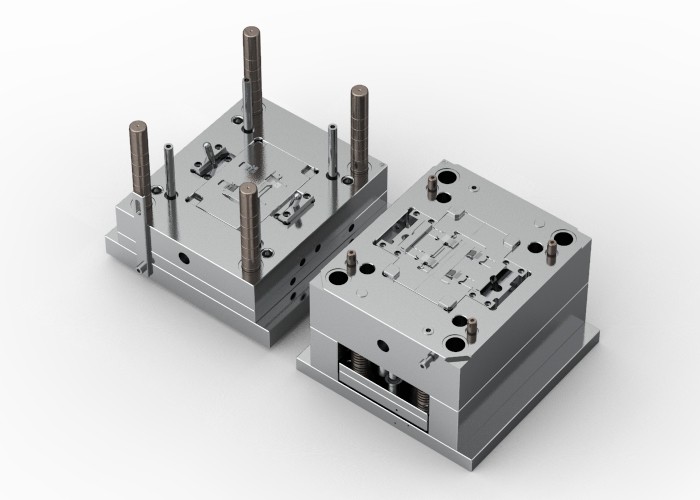

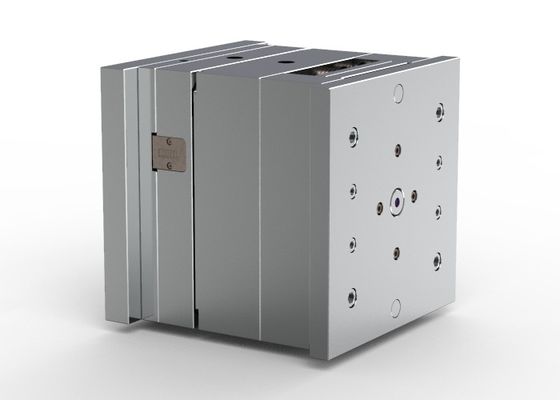

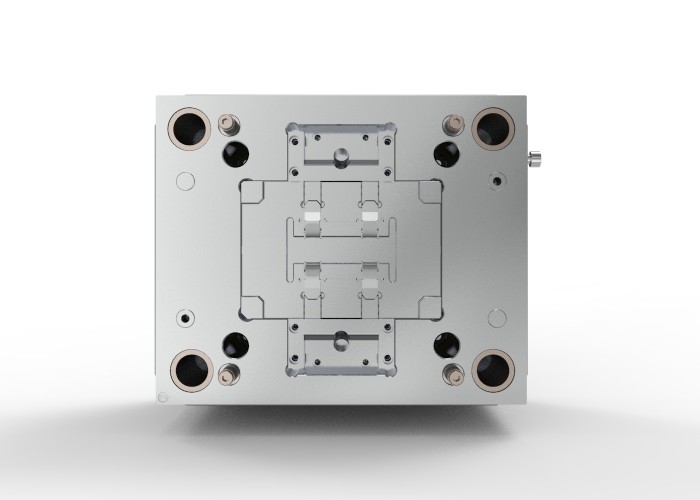

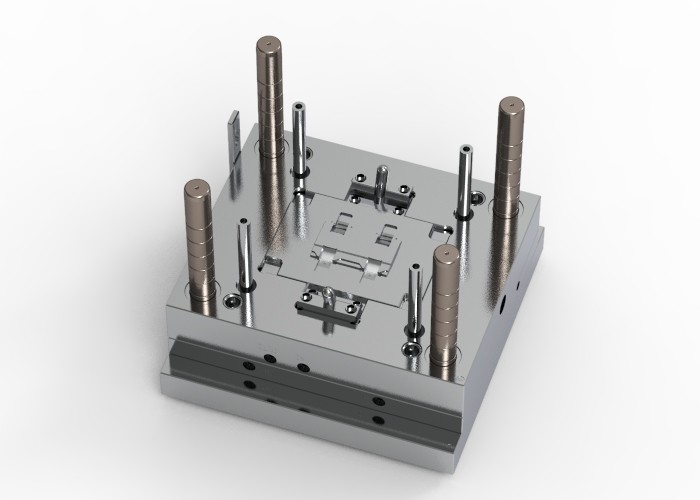

The mold is developed (designed and manufactured) by Chitwing. It fits standard mold
base. The mold size is 300 X 300 X 306mm, LKM standard. The net weight is 165 kg. The

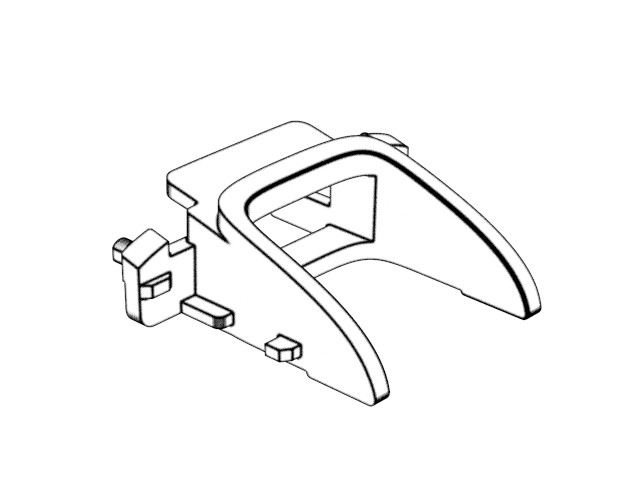

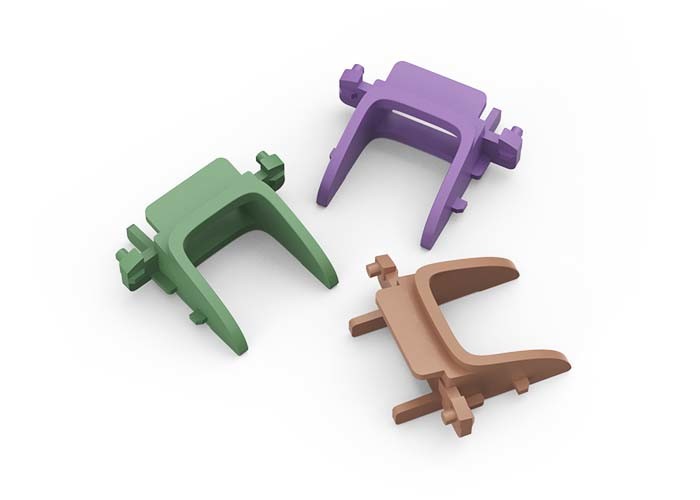

IMM tonnage is 110T. The part size is 19.37 * 22.00 * 7.94mm, and the part weight is only 0.5g.
| Gate | Slide |
| Pin point gate | 1 |
| According to the part material POM, the mold is designed with cold runner. A surface EDM with Charmilles VDI24#. Harden the cavity and core with 1*4/S136 to have higher hardness and anti-wearing performance. The part has short cycle time, stable high quality w/o sink marks and flow marks. | |||||||
| Type | Tool life |
| Three-plates mold | 500k shots |

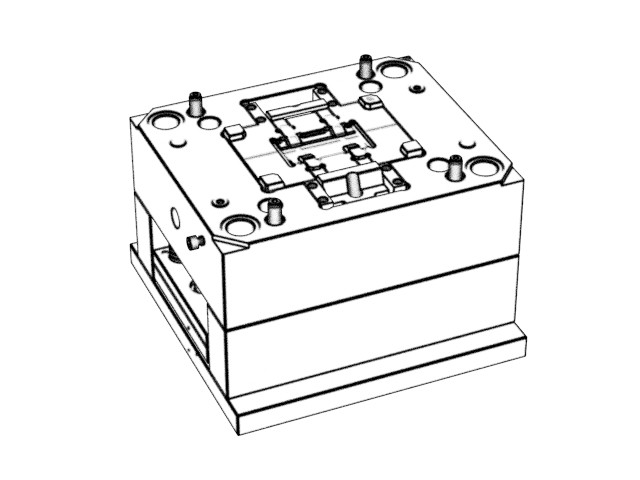

Display diagram
