OEM / ODM ： Cold Runner Injection Molding & Scan Pen Camera Trim Ring (1*4) No.24005
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Scanning Pen |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 250 X 250 X 241 | IMM Tonnage | 110T |
|---|---|---|---|
| Mold Weight | 88KG | Part Weight | 0.2g |
| Part Material | POM | Mold Base | Standard FCI2530.509080. |
| Runner | Cold Runner | Mould Life | ≥500000 Shots |
| Design Software | 3D:UG 4.0, 2D:CAD | ||
| High Light | Cold Runner mold plastic injection,500k Shots mold plastic injection,POM mold plastic injection |
||
Product Description
Scan Pen Camera Trim Ring (1*4)
No.24005

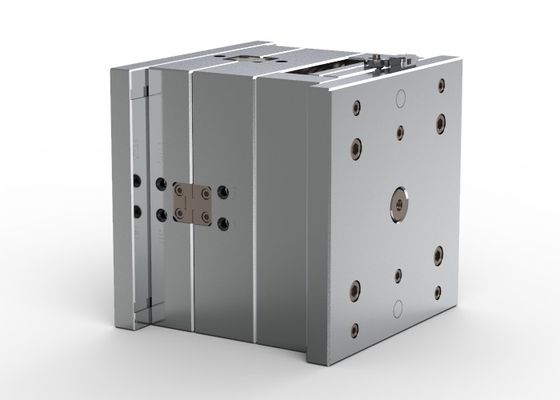

☆ Mold base:Standard FCI2530.509080.
| L × W | Height | Net weight |
| 250 X 250mm | 241 | 88kg |
☆ Fit 110T machine

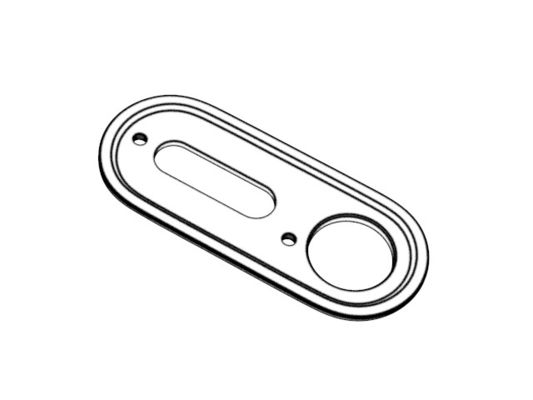

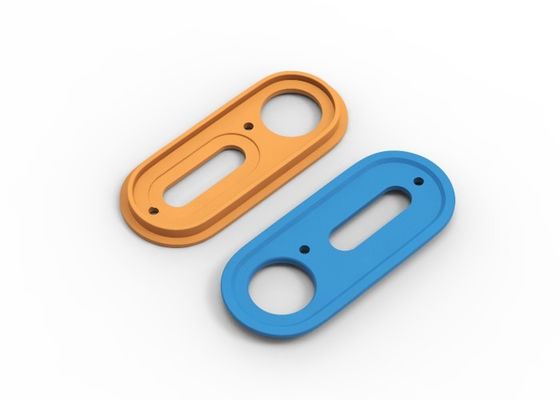

☆ The part material is POM, the part size is 33.65 * 2.26 * 14.52mm,
and the part net weight is only 0.2g.
|
|

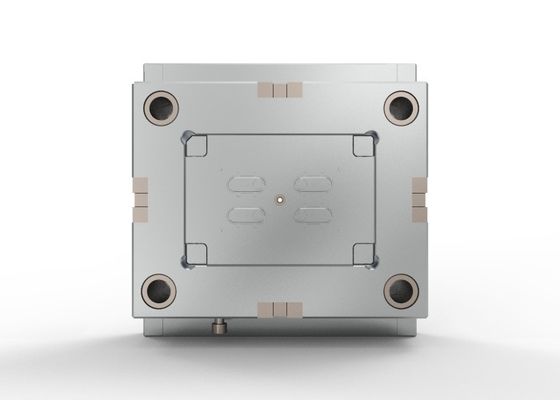

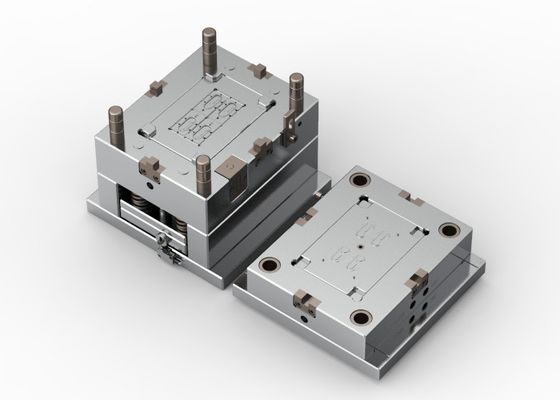

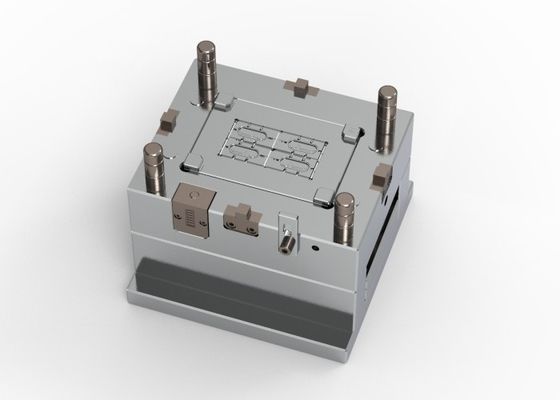

| This is a three-plates mold designed with LKM standard, the pin point gate turns to the side gate; the sprue bushing is set in center of mold base; the molded part has stable high quality and needs no post-processing, greatly reducing labor costs. A surface polished to 600# sandpaper, and the secondary surface EDM with Charmilles VDI21#, with smooth cavity surface. Harden the cavity and core with 1*4/S136 to have higher hardness and anti-wearing performance. Smooth runner and stable cavity pressure ensure the molded part has smooth surface and clear details w/o burrs | |||||||

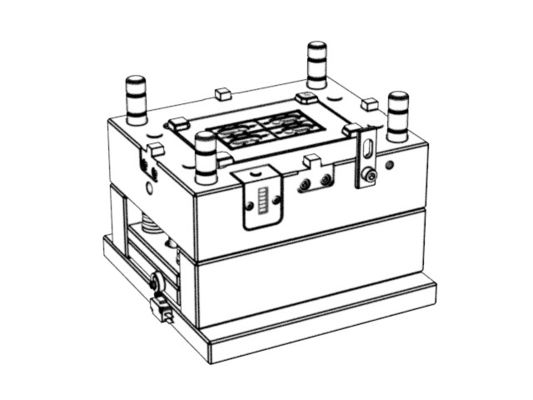

Display diagram
