OEM / ODM ： Cold Runner Injection Molding & Scan Pen Power Key (4+4) No.24006&24007
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Scanning Pen |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 230*390*266mm | IMM Tonnage | 200（T） |
|---|---|---|---|
| Mold Weight | 181（KG） | Standard | LKM |
| Injection/runner Type | Cold Runner | Part Material | PC+TPU |
| High Light | TPU Cold Runner Injection Molding,200T Cold Runner Injection Molding,500k Shots mold injection plastic |
||
Product Description
Scan Pen Power Key (4+4)
No.24006&24007
| Size | 230 X 390 X 266mm | ||
| Mold base P/N | Custom FCI2330.308080 | ||
| Brand | Chitwing | ||
| Place of origin | China | ||
The mold is designed with pin point gate turns to side gate. Sprue bushing can set at center
of mold base for stable molding. Mold weight 181kg, fits 200T machine.

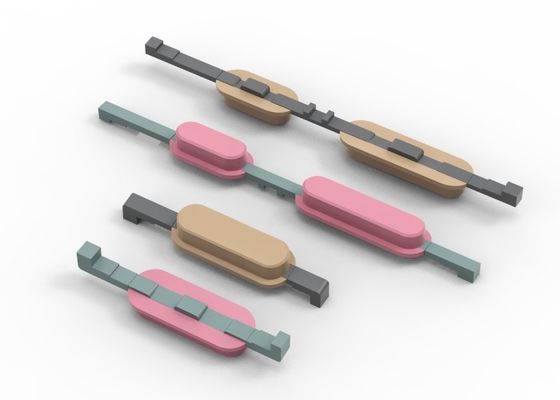

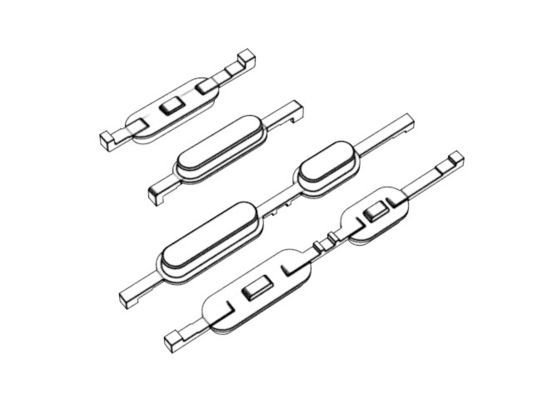

Part size: 1st short:11.20*3.80*2.34mm, 2nd short :31.85*2.05*1.09mm, part weight: 1st
short: 0.2g 2nd short:0.1g
| Part material | Type | Three-plates mold | Standard | LKM | |
| PC+ABS | PC+TPU | Injection/runner type | Cold runner | ||
This is a 2k mold for cost-effective consideration. A surface polished to SPI-A1; Cavity and core
are hardened with 4+4/S136, so that the mold has high hardness and anti-wearing performance

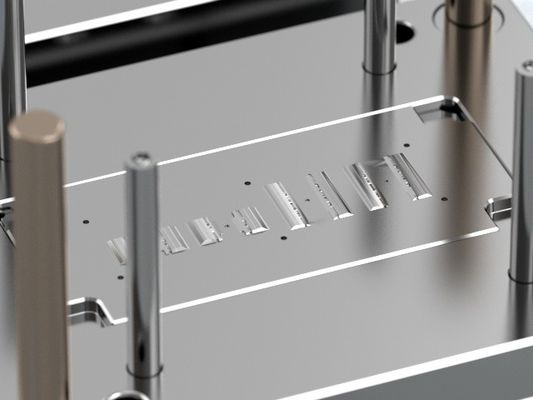

and is more suitable for PC+ABS/TPU double-shot molding. The cavity has high polished, so
that the part has smooth molding surface, with no flash, minimized material loss, good bonding
of 2 materials. The tool life is up to 500k shots.

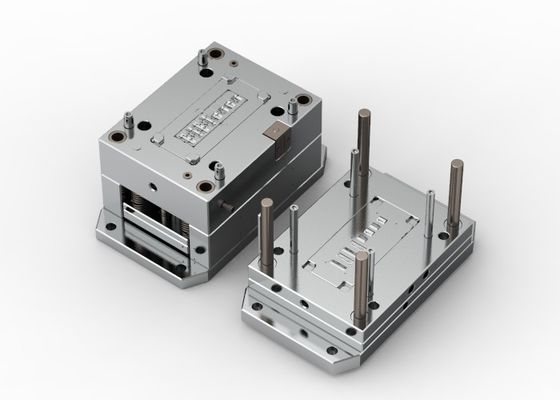

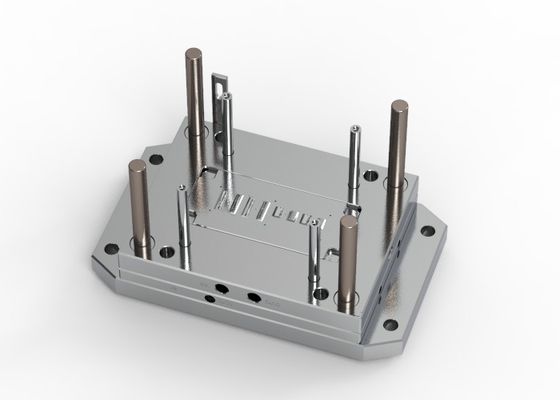

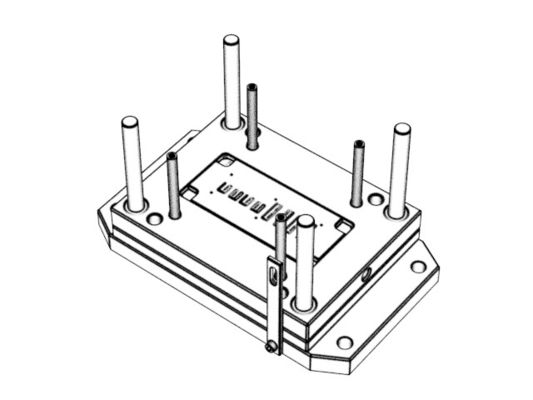

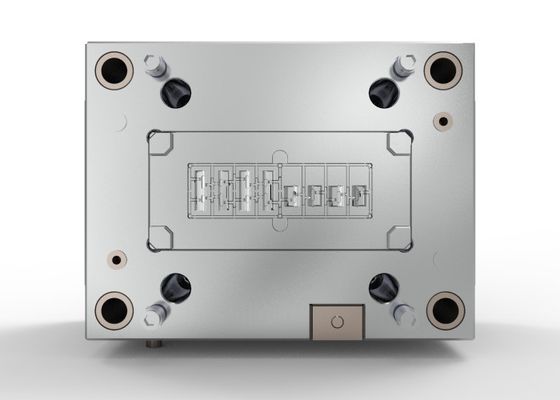

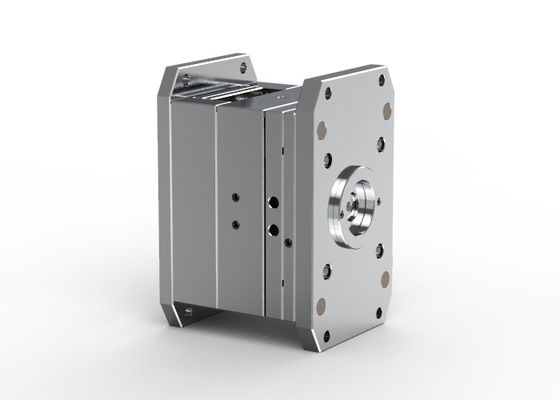

Display diagram
