OEM / ODM ： Cold Runner Injection Molding & Left + Right Transparent Eye Shell(1+1) No.23056
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Camera |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 350.00 X 400.00 X 351.00 | IMM Tonnage | 110T |
|---|---|---|---|
| Mold Weight | 277kg | Slide | 2 |
| Angled Slide | 2 | Lifter | 2 |
| Gate | Sub Gate |
Product Description

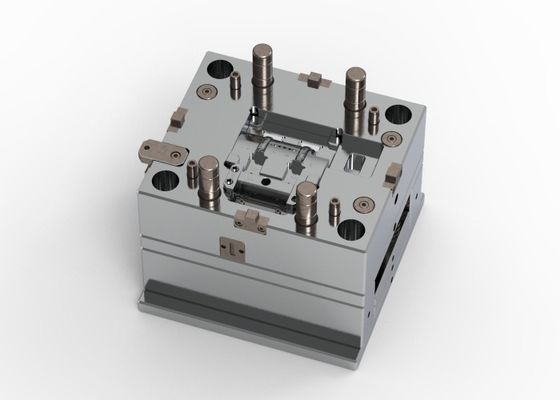

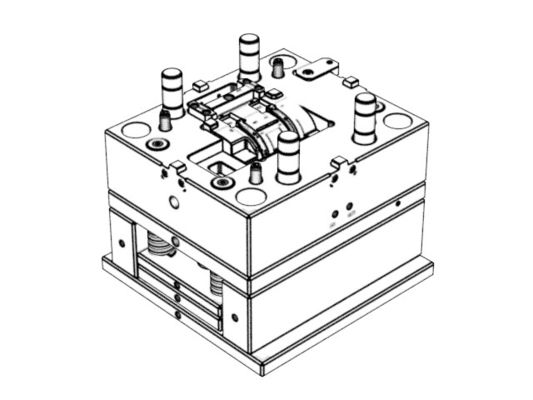

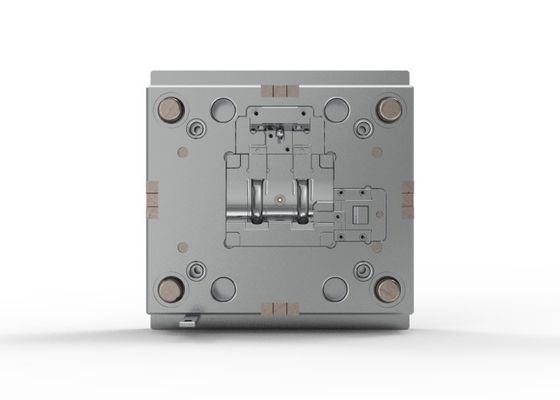

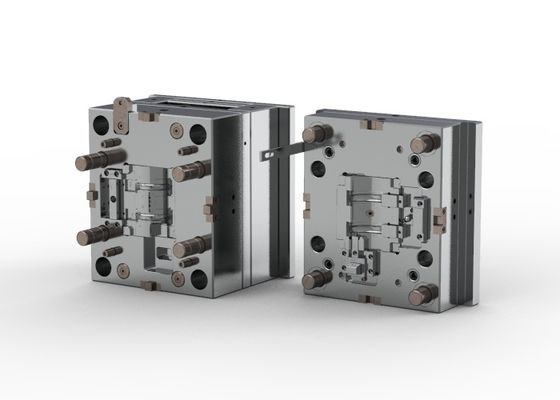

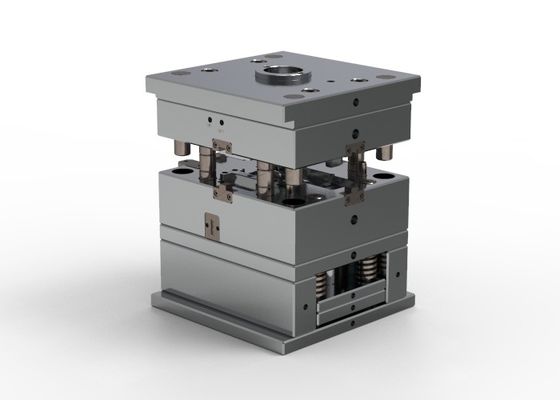

Left + Right Transparent Eye Shell(1+1)
No.23056
[Mold base]: Custom mold base ED3035 1 set A70-B100-C100
| Part size: 350x400x351 Net weight: 277kg Gate: Sub gate The gate is flexible in position, and self-degating with minimized gate mark) Type: Two-plates mold (side gate mold) Standard: General plastic mold standard LKM in China IMM Tonnage: 110T |
|||||
| Part material: PC Injection/runner type: Hot runner |
Slide | Angled slide | Lifter | ||
| 2 | |||||
| Surface treatment: A surface VDI24 etch. Steel of cavity & core: 1+1/S136 harden. |
|||||
This mold is independently developed by chitwing(designed and manufactured), to meet
customer's cost-effective requirement.
This is a 2 plates mold with:
1) hot runner.
2) short cycle time.
3) free of cold runner(not material loss of runner and improve part quality).
4) melt get into cavity evenly to mold uniform high quality parts.
5) self-degating.
6) with nice and clear part surface, W/O flow mark.
7) with harden and well-polished cavity and core, get high hardness and good anti-wearing,
anti-corrosion performance.
8) tool life 500k shots.

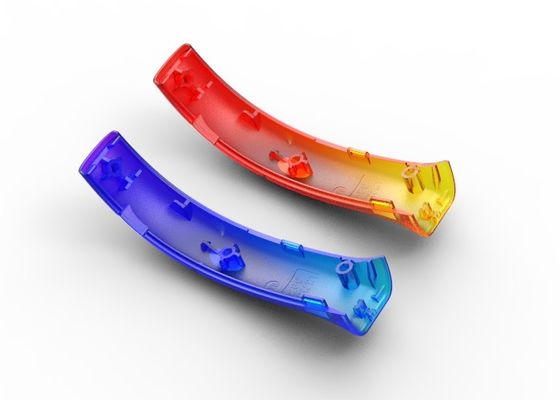

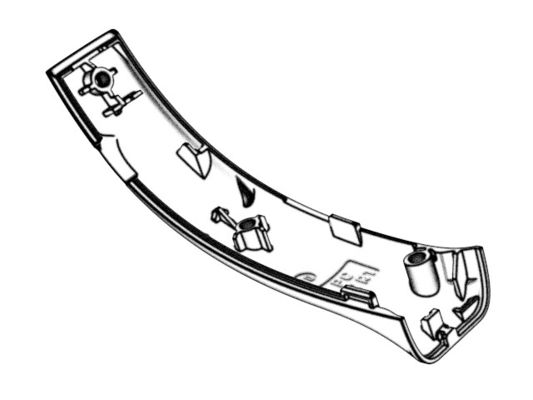

| Part weight: 2.5g Part size: 58.64 X 16.99 X 37.70mm |
|||||
Display diagram
