OEM / ODM ： Cold Runner Injection Molding & Transparent Medical Instrument Bottom Shell (1*2) No.23672
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Armamentarium |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 300 X 300 X 314.5mm | IMM Tonnage | 100（T） |
|---|---|---|---|
| Mold Weight | 174（kg） | Type | Three-plates Mold |
| Mould Base | LKM | Design Software | 3D:UG 4.0, 2D:CAD |
| High Light | LKM Medical Device Injection Molding,500k Shots Medical Device Injection Molding,100T Medical Injection Molding |
||
Product Description
Transparent Medical
Instrument Bottom Cover (1*2)
No.23672
| Part information | ||||
| Size: 300x300x314.5 (L X W X H) | ||||
| Standard mold base P/N FCI2530.609080 LKM standard |
||||
|
The mold is designed with cold runner, pin point gate, and three-plates structure, and is tailor-made for characteristics of ENH2900 material; short cycle time, better details, mold good fitted, minimizedmaterial loss of runner, more uniform pressure in the cavity. The mold has the tool life of 500k shots and good anti-wearing performance, with stable quality for mass production, w/o leakage and burrs |
||||
|
Surface finish: ① A surface polished to SPI A2 ② Other surfaces EDM with VDI24# Steel of cavity & core: Harden (1*2/S136) Injection/Runner Type: Cold Runner |
||||
|
Mold net weight: 174kg IMM Tonnage: 100T |
Part material: ENH2900
Part weight: 1.98g
Part size: 42*34.38*2.3mm

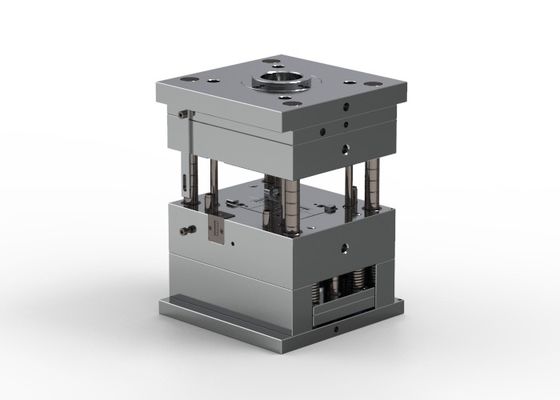

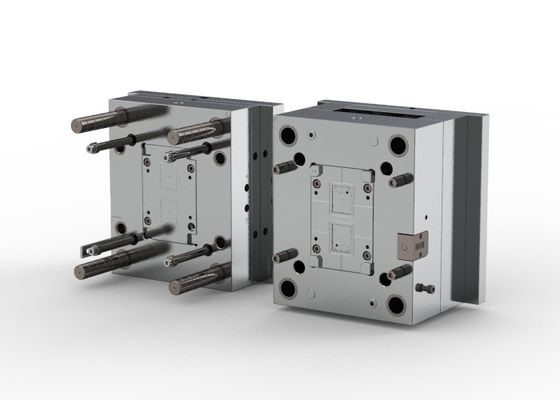

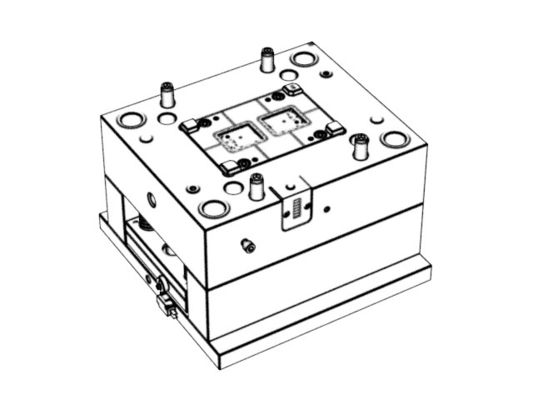

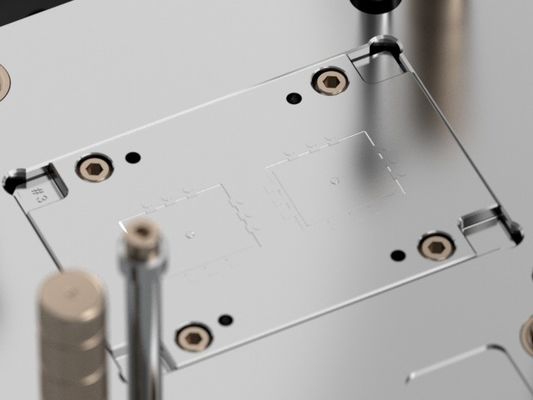

Display diagram
