OEM / ODM ： Cold Runner Injection Molding & Transparent Smart Glasses Case Shaft (1*2) No.23847
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Smart glasses Case |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 350 X 450 X 346 | IMM Tonnage | 100T |
|---|---|---|---|
| Mold Weight | 341KG | Tool Life | 500k Shots |
| Standard Mold Base P/N | FCI3045 1 Set A60-B90-C90 | Injection/runner Type | Cold Runner |
| Part Material | PP | Gate | Pin Point Gate |
| Slide | 2 | ||
| High Light | PP Cold Runner Injection Molding,100T Cold Runner Injection Molding,500k Shots multi cavity mold |
||
Product Description

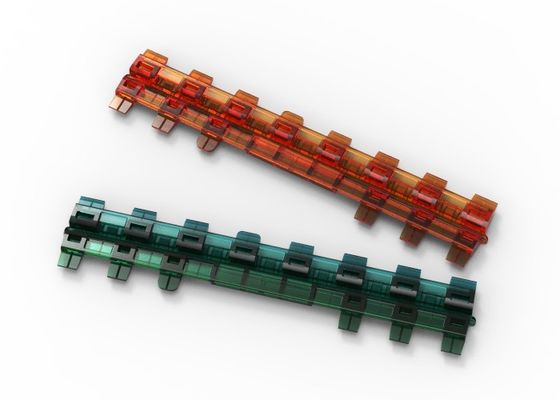

Transparent Smart
Glasses Case Shaft (1*2)
No.23847

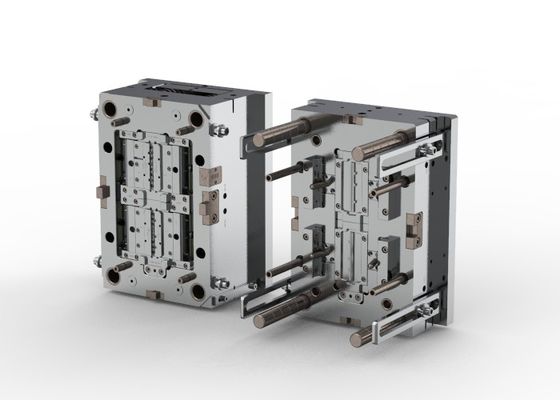

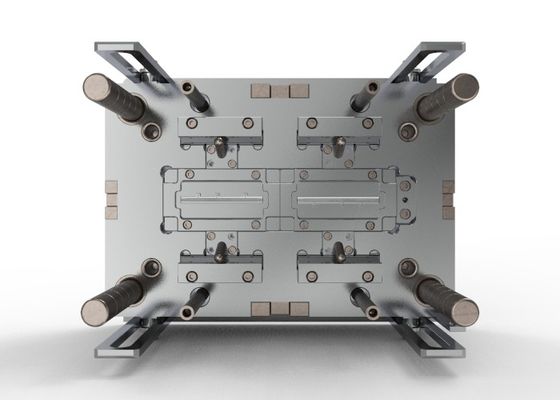

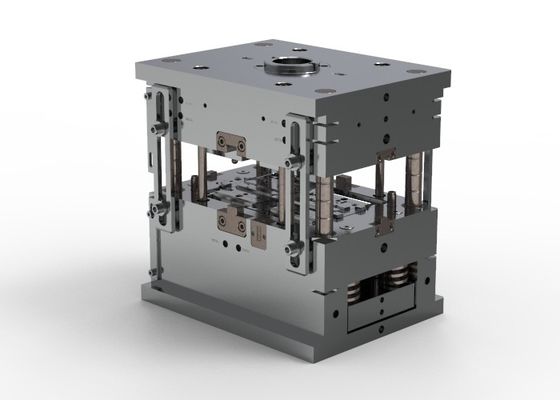

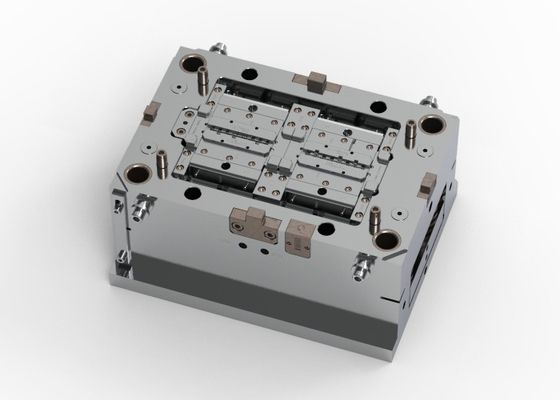

| This mold was developed (designed and manufactured) by Chitwing with two slides, cold runner and short cycle time; the molded part has stable high quality, accurate details and good fitting. | |||||||
| Standard mold base P/N FCI3045 | Net weight | 341kg | |||||
| Size | 350 X 450 X 346mm | Tool life | 500k shots | ||||
IMM tonnage: 100T
| Surface finish | Steel of cavity and core |
| A surface EDM with VDI21# | Harden (1*2/S136) |
| Gate | Pin point gate |
| Part | Part material | PP | ||
| Size | 18.27 X 94.44 X 4.49mm | |||
| Weight | 16.7g | |||
| The mold has been treated by mature technology, with uniform wall thickness, higher anti-corrosion and anti-wearing performance, extremely high hardness and toughness. |

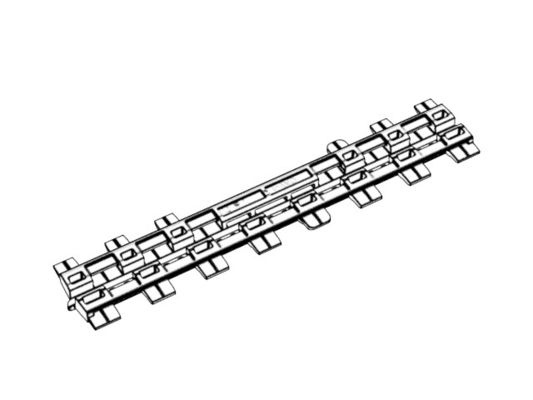

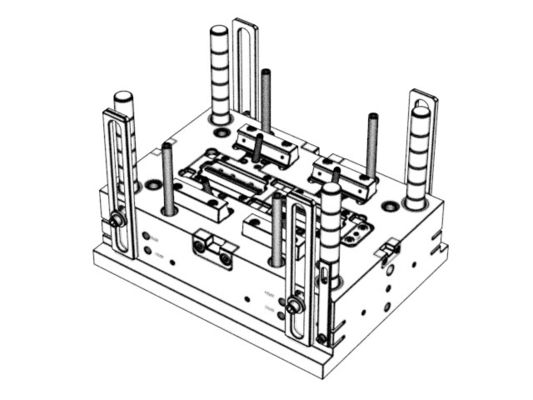

Display diagram
