OEM / ODM ： Cold Runner Injection Molding & Transparent Left Front Housing of Scan Pen (1*2) No.24001
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Scanning Pen |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | 2 Slides And 1 Lifter | Size | 400 X 500 X 361 |
|---|---|---|---|
| IMM Tonnage | 140T | Mold Weight | 457KG |
| Gate | Pin Point Gate/Side Gate | Injection/runner Type | Cold Runner |
| Tool Life | 500k Shots | Part Weight | 3g |
| High Light | 3 Cavity Cold Runner Injection Molding,140T Cold Runner Injection Molding,500k Shots high pressure injection molding |
||
Product Description

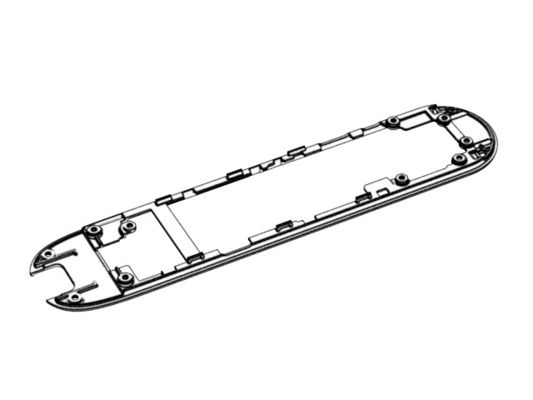

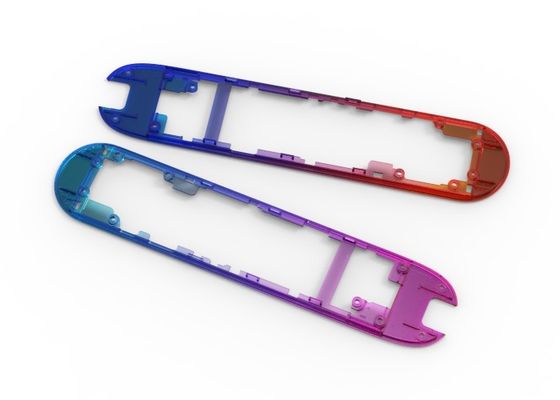

Transparent Left
Front Housing of Scan Pen (1*2)
No.24001
|
Standard mold base P/N: FCI3550.6010090. |
Standard | Type | |||
| LKM | Three-plates mold | ||||
| Size | LxWxH | Slide | Lifter | ||
| 400 X 500 X 361mm | 2 | 1 | |||
| Gate | Injection/runner type | Part material | |||
| Pin point gate | Side gate | Cold runner | PC | ABS | |
| Surface finish | Harden with 1*2/S136 | ||||||
|
A surface polished to 800# sandpaper |
Other surfaces EDM with VDI21# (Makino) |
Steel of cavity | Steel of core | ||||
| The mold is mode of steel billet with high purity. Through forging, cutting and hardening, the mold has high hardness, good fitting and uniform wall thickness. It fully considers the cost-effective performance to reduce loss of material and shorten the cycle time. Stable cavity pressure and smooth inner surface make the molded parts with clear details. | |||||||
| The mold net weight is 457kg, fits 140T machine. The part size is 148.89 X 31.87 X 5.69mm, and the part weight is 3g. | |||||||

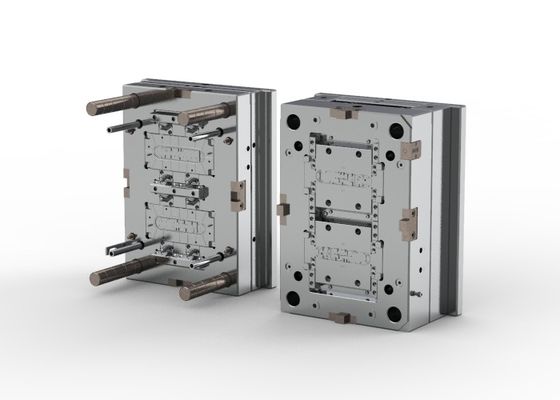

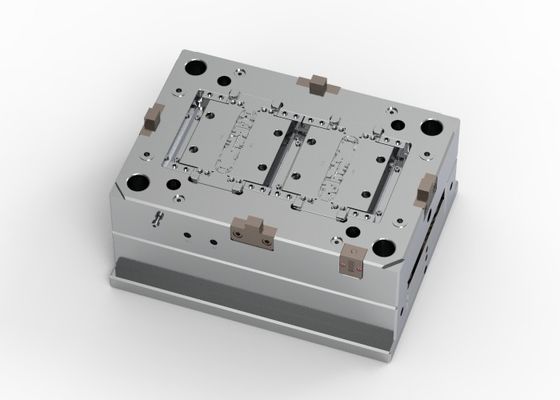

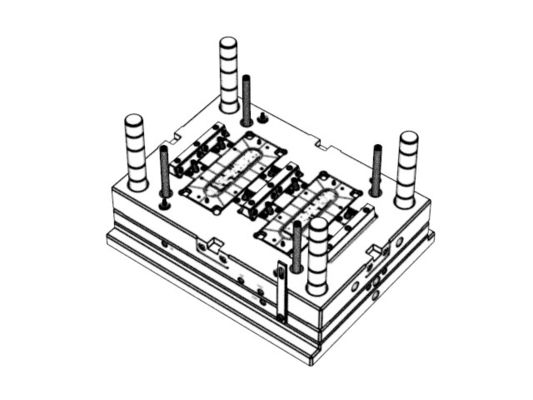

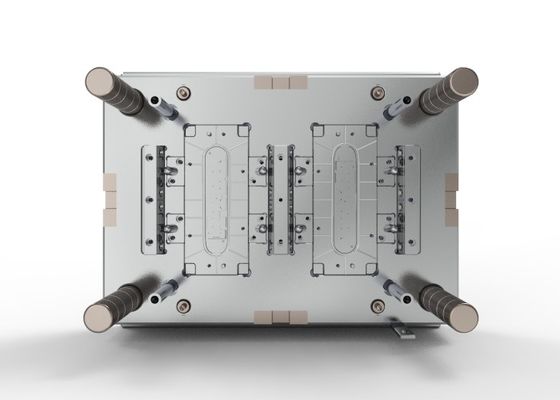

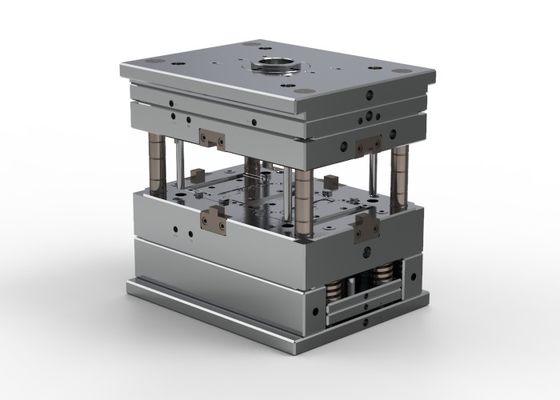

Display diagram
