OEM / ODM ： Cold Runner Injection Molding & Transparent Scan Pen Camera Decorative Ring (1*4) No.24005
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Scanning Pen |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Make A Plating Bracket | Size | 50 X 250 X 241 |
|---|---|---|---|
| IMM Tonnage | 110T | Mold Weight | 88KG |
| Mold Base | Standard FCI2530.509080. | Tool Life | 500K Shots |
| Type | Three-plates Mold | ||
| High Light | Three Plate Cold Runner Injection Molding,110T Cold Runner Injection Molding,500k Shots molding injection plastic |
||
Product Description

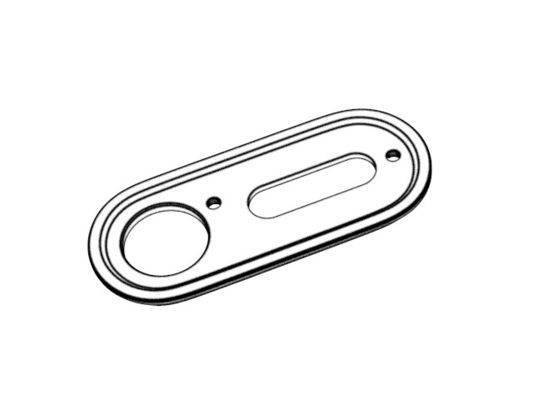

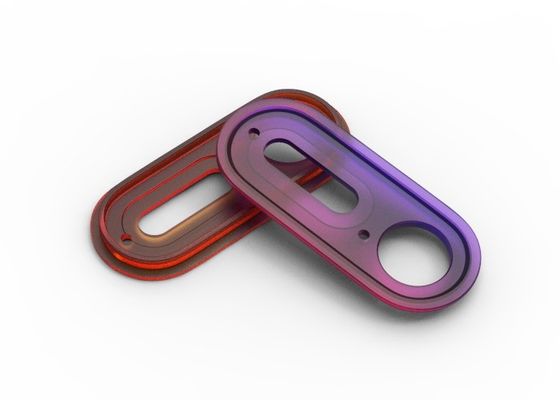

Transparent Scan Pen
Camera Decorative Ring (1*4)
| Mold base:Standard FCI2530.509080. | Type | Standard | Net weight | ||
| Length | Width | Height |
Three-plates mold |
LKM | 88kg |
| 250 | 250 | 241 | |||
| IMM Tonnage | Part material | Part size | Part weight | ||
| 110T | POM | 33.65*2.26*14.52 |
0.2g |
||
| Surface finish | A surface polished to 600# sandpaper | Steel of cavity and core | |||
| Secondary surface EDM with Charmilles VDI21# | Harden (1*4/S136) | ||||
| Fully considering customer requirements, the mold is designed pin point gate turning to side gate; the sprue bushing is set in center of mold base. Harden the mold to effectively improve the hardness and anti-wearing performance, so that the tool life > 500k shots; uniform cavity wall thickness, good strength, minimized cold slug, and short cycle time; with smooth part surface and clear details w/o flow marks and fitting tolerance < 0.1mm | |||||||

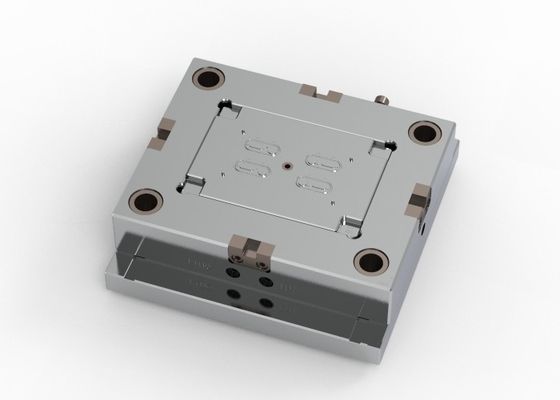

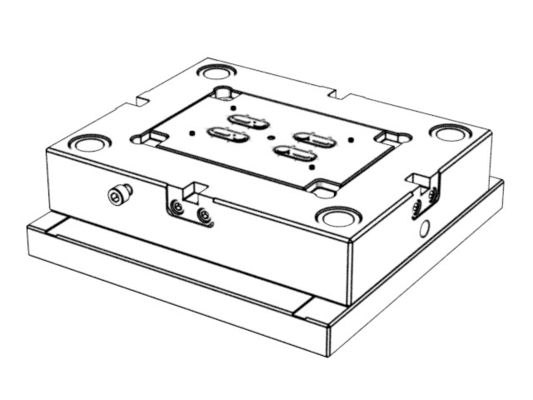

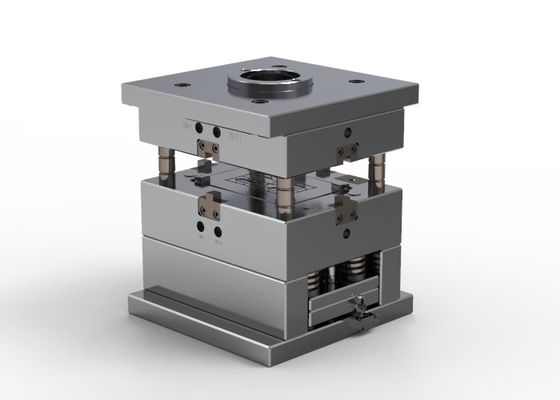

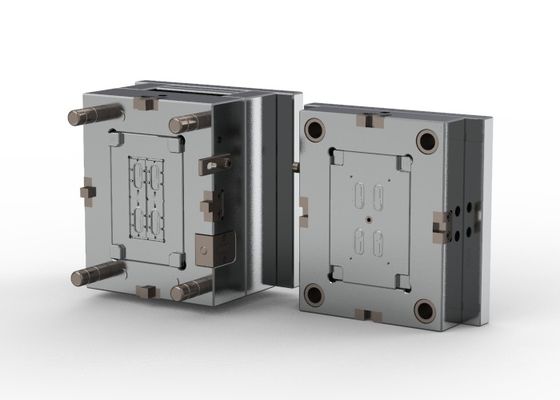

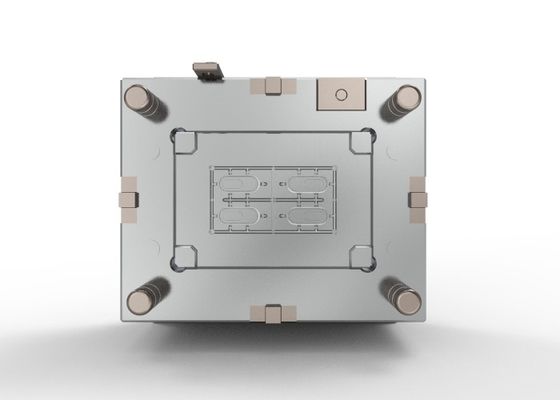

Display diagram
