OEM / ODM ： Cold Runner Injection Molding & Glasses Camera Housing+Bracket 1+1 No 23055-B
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Camera |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 280.000 X 270.000 X 296.000 | IMM Tonnage | 140T |
|---|---|---|---|
| Mold Weight | 132kg | Slide | 2 |
| Lifter | 4 | Part Material | PC |
| Design Software | 3D:UG 4.0, 2D:CAD | Part Weight | 2g |
| Type | Three-plates Mold | ||
| High Light | plastic cold runner system injection molding,precision cold runner system injection molding,polycarbonates cold runner mold |
||
Product Description

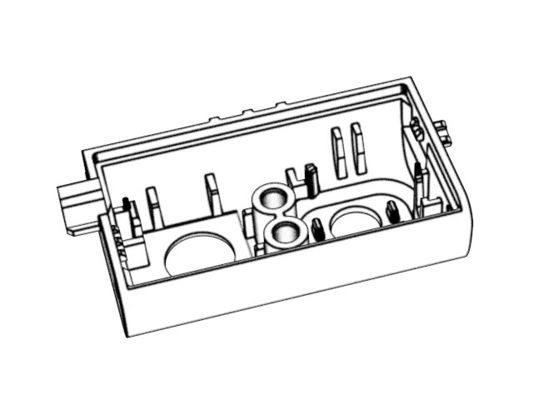

Glasses Camera
Housing+Bracket (1+1)
No.23055-B

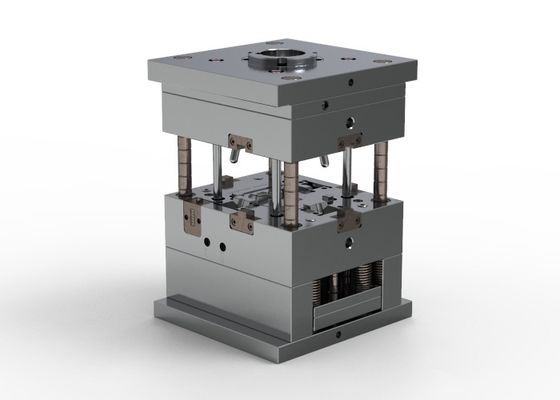

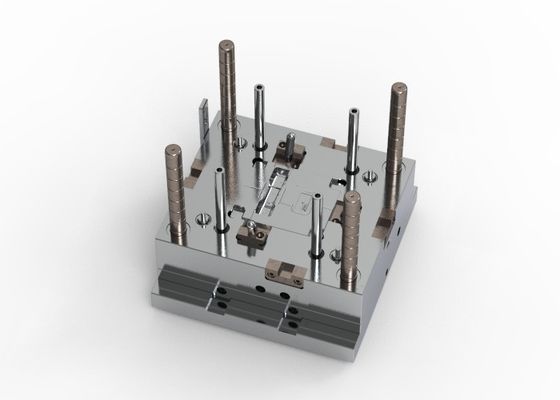

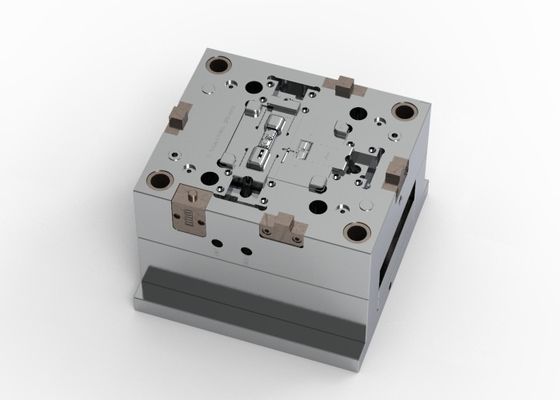

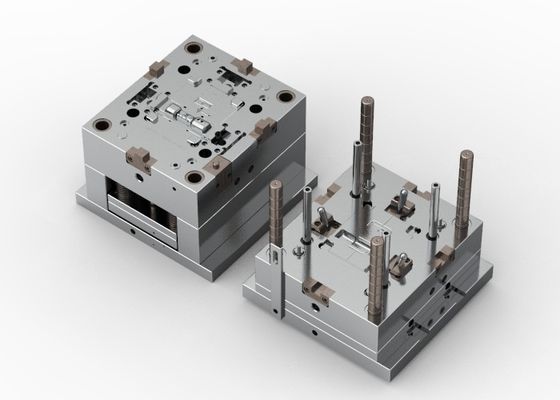

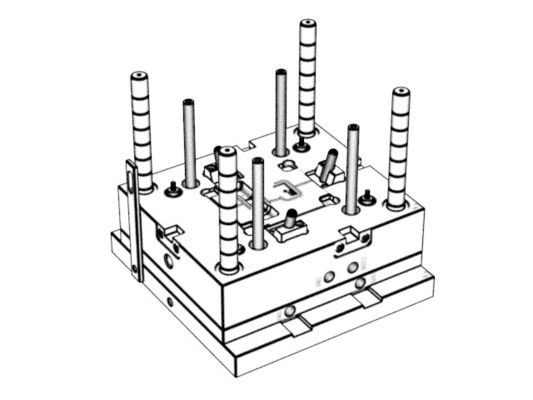

| The mold is a three-plates mold with a size of 280mm (L) x 270mm (W) x 296mm (H). It is built on a standard mold base FCI2327 608080 from LKM. |
| The mold is designed to have a tool life of up to 500k shots and has a net weight of 132 kg. It requires an injection molding machine with a tonnage of 140T.To meet high requirements for part appearance, the mold has a sub gate and requires high injection pressure. It is also self-degating, meaning there is no need for additional trimming or cutting of the part after molding. The surface finish of the housing includes VDI24 etch on the A surface and EDM with VDI24# on the inner surface using Charmilles equipment. For the bracket, the A surface is EDM with VDI27# and the gluing surface is EDM with VDI21#, both done using Makino equipment.The cavity and core of the mold are made of hardened steel with a composition of 1+1/S136. |

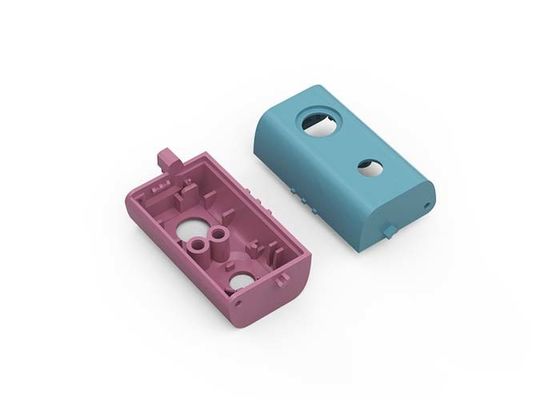

| The injection and runner type used is a cold runner system. The part material used is PC (polycarbonate) with a weight of 2g. The part has two different sizes: 33.80mm x 17.26mm x 11.08mm and 27.83mm x 14.94mm x 4.90mm. The mold includes 2 slides and 4 lifters. |
