OEM / ODM ： Cold Runner Injection Molding & Left + Right Transparent Eye Shell 1+1 No 23056-B
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Camera |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 350.00 X 400.00 X 351.00 | IMM Tonnage | 110T |
|---|---|---|---|
| Mold Weight | 277kg | Slide | 2 |
| Angled Slide | 2 | Lifter | 2 |
| Gate | Sub Gate | ||
| High Light | plastic hot runner mold,precision injection hot runner mold,polycarbonates hot runner mould |
||
Product Description
Left + Right Transparent Eye Shell(1+1)
No.23056-B
|

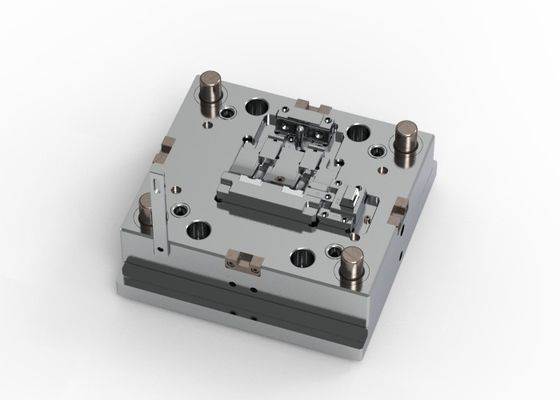

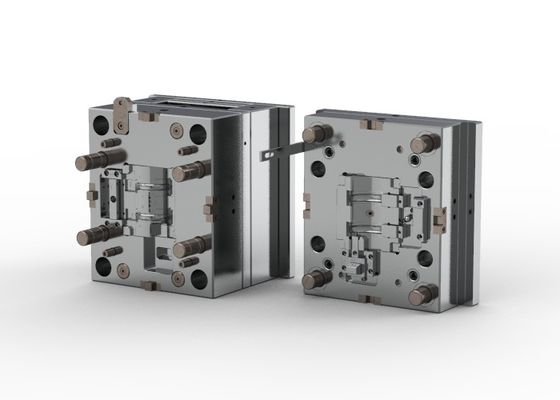

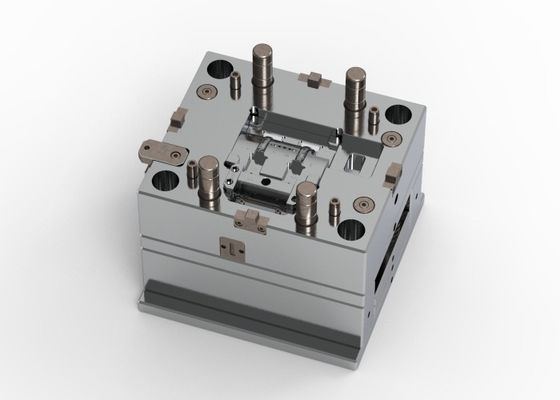

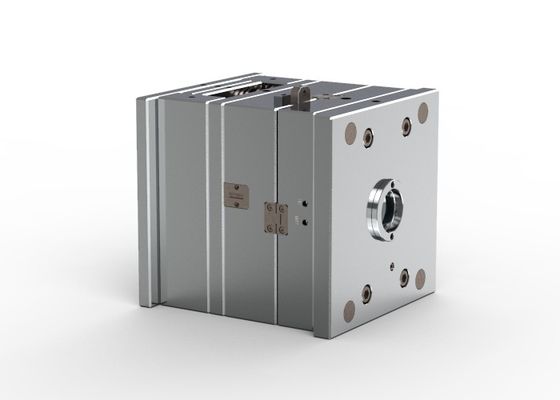

This mold is a custom mold base called ED3035 1 set A70-B100-C100. It is designed to produce parts with a size of 350x400x351 and a net weight of 277kg. The mold uses a sub gate, which is flexible in position and self-degating to minimize gate marks. It is a two-plates mold, specifically a side gate mold, following the general plastic mold standard LKM in China. The mold is suitable for an injection molding machine with a tonnage of 110T. The part material used is PC, and the injection/runner type is a hot runner system. The mold also includes 2 slides, 2 angled slides, and 2 lifters.
|
|
The surface of the molded parts is treated with a VDI24 etch, resulting in a nice and clear part surface without flow marks. The cavity and core of the mold are made of 1+1/S136 hardened steel, providing high hardness and good anti-wearing and anti-corrosion performance. The mold has a tool life of 500k shots.
|
|

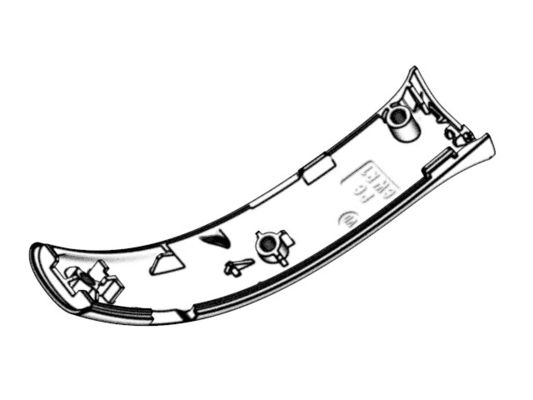

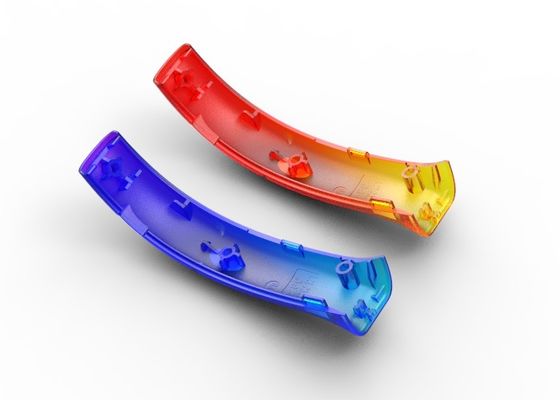

The molded parts produced by this mold have a weight of 2.5g and a size of 58.64 X 16.99 X 37.70mm.
|

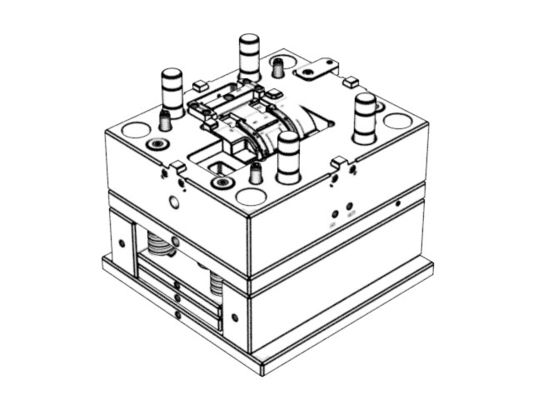

Display diagram
