OEM / ODM ： Cold Runner Injection Molding & Glasses Inner Housing 1*1 No 23057-B
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Camera |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | 5 Slides And 7 Lifters | Size | 350.0000 X 450.0000 X 446.0000 |
|---|---|---|---|
| IMM Tonnage | 140T | Mold Weight | 425kg |
| Mould Base | DAI3045 70120100 | Standard | LKM |
| Steel Of Cavity And Core | Harden (1*1/S136) | Surface Finish | A Surface VDI24 Etch |
| Type | Three-plates Mold | ||
| High Light | plastic cold injection molding,three plates cold injection molding,polycarbonates cold runner system injection molding |
||
Product Description
Glasses Inner Housing (1*1)
No.23057-B

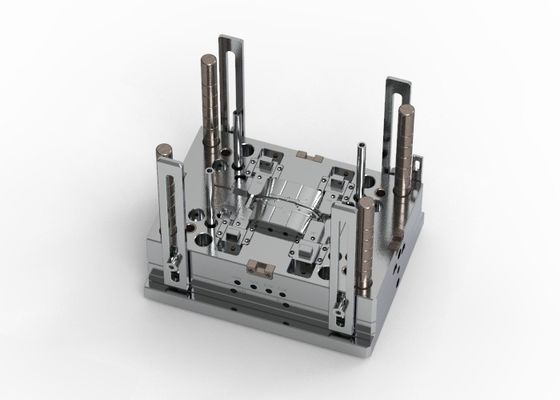

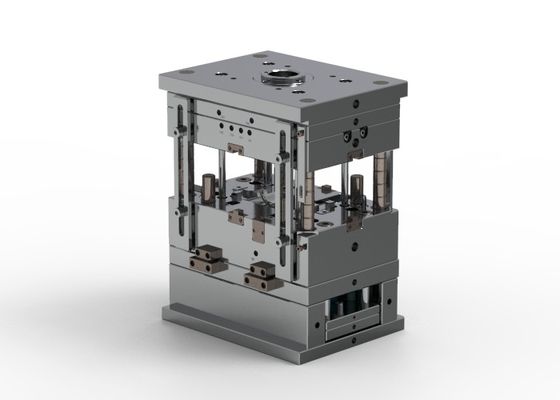

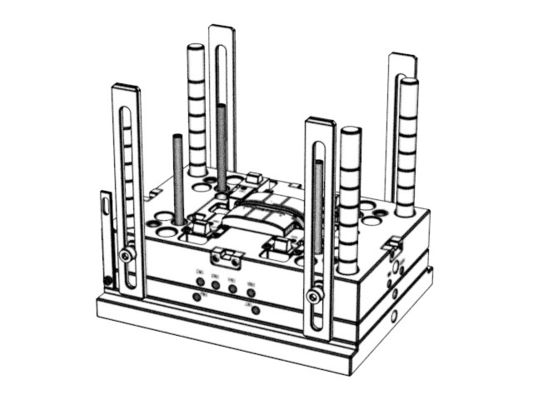

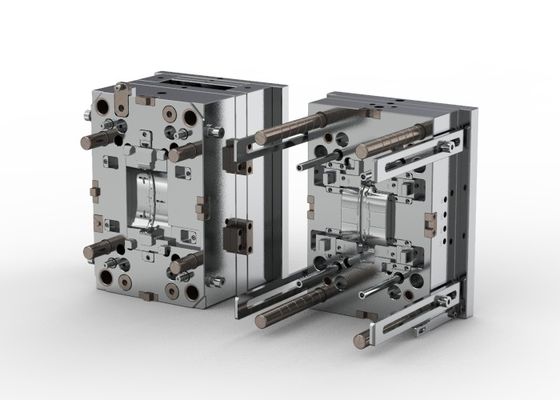

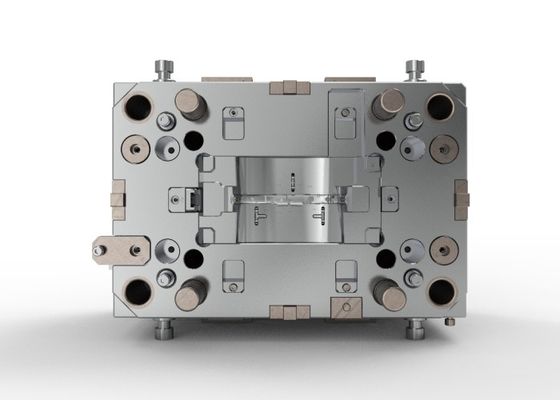

| The mold is a three-plates mold with a size of 350mm (L) x 450mm (W) x 446mm (H). It has a net weight of 425kg and is built on a DAI3045 70120100 mold base. The mold follows the LKM standard and features 5 slides and 7 lifters. It is designed for an injection molding machine with a tonnage of 140T. The tool life of the mold is expected to be 500,000 shots. |

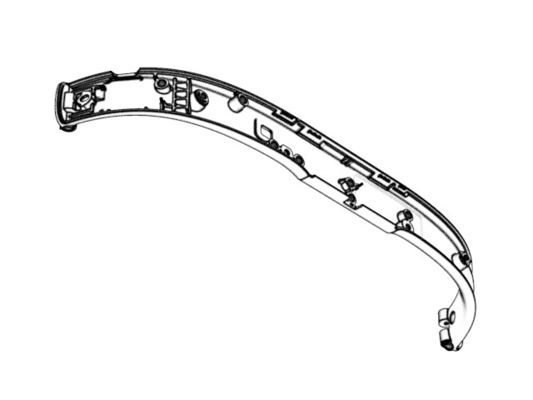

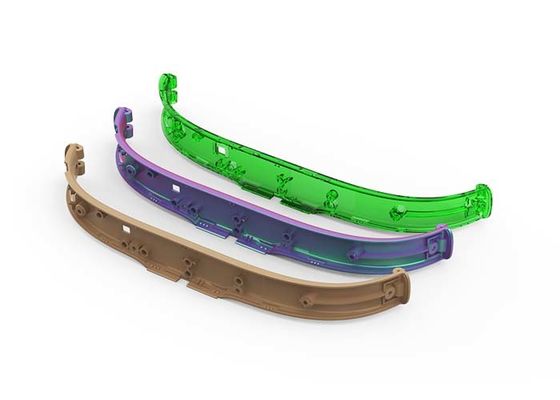

| The gate type used is a sub gate, and the surface finish is achieved through a VDI24 etch on the A surface. The cavity and core of the mold are made of hardened steel (1*1/S136). The injection system uses a cold runner. The injection part is made of PC material, weighs 4.6g, and has dimensions of 17.00mm x 147.90mm x 33.24mm. |
Display diagram
