OEM / ODM ： Cold Runner Injection Molding & Transparent Glasses Middle Bracket 1*2 No.23058-B
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Camera No.CWM23058 |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 320.000 X 350.000 X 316.000 | IMM Tonnage | 180T |
|---|---|---|---|
| Mold Weight | 222kg | Injection Runner System | Cold Runner |
| Mould Life | ≥500000 Shots | Mould Base | LKM |
| Mould Material | Harden（1*4/S136） | Surface Treatment | Polishing |
| Design Software | 3D-UG 4.0/ 2D-CAD | Structure | Fixed Cavity + Movable Side + Runner Stripper Plate + Runner Plate |
| High Light | 1*2 cold runner injection molding,3 plates cold runner injection molding,cold runner mold polycarbonates |
||
Product Description

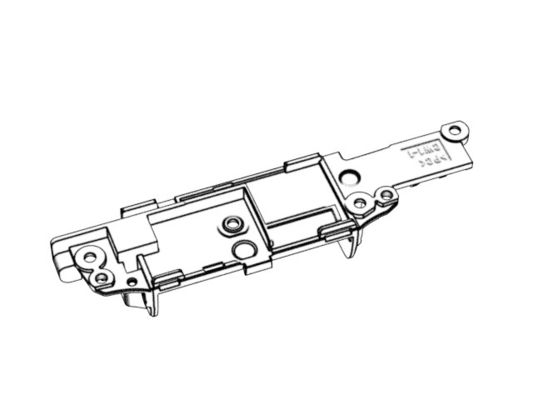

Transparent glasses middle bracket (1*2)
No.23058-B
|

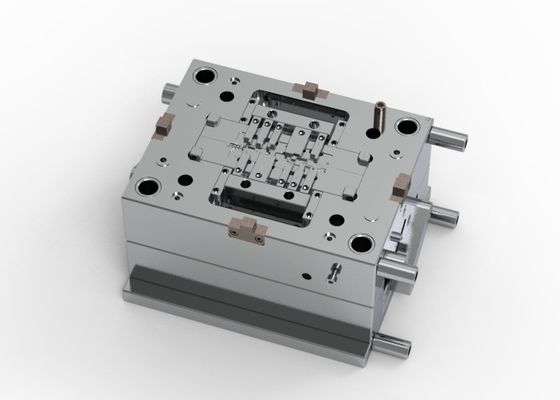

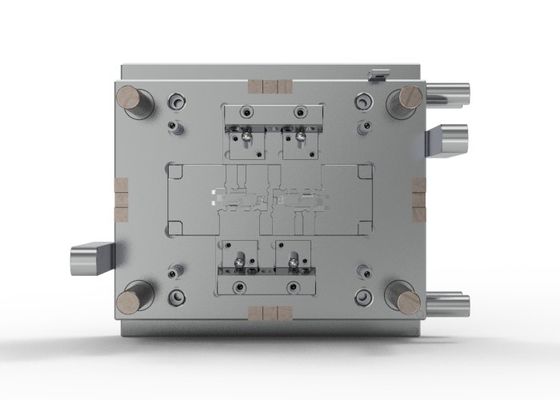

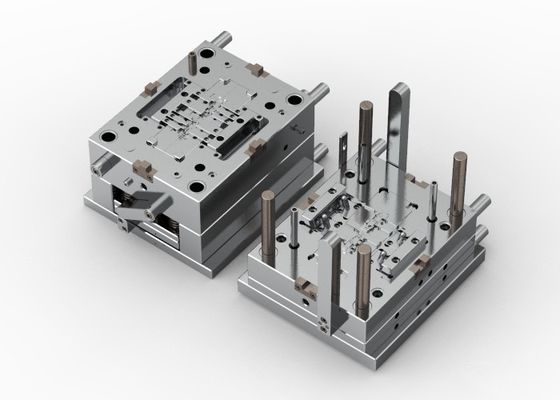

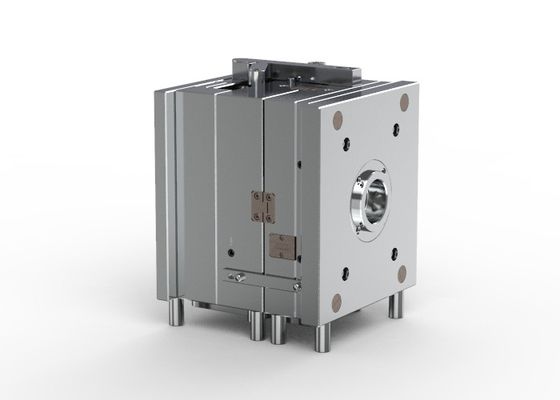

This mold is a three-plates mold with a mold base of FCI2735 609080. It follows the LKM standard and has a size of L 320mm X W 350mm X H 316mm. The mold features 5 slides and 2 lifters, contributing to its functionality. The net weight of the mold is 222kg.
The required IMM tonnage for this mold is 180T, and it utilizes a Cold Runner injection/runner type. The mold is designed to provide a smooth surface and precise details for the molded parts. This is achieved through a surface finish that includes VDI24 etching and polishing with 800# sandpaper. These treatments improve the mold surface glossiness and reduce pits, ensuring that the molded parts have a smooth surface and do not stick to the mold.
|
|
The cavity steel is hardened with 1*2/S136, which enhances the mold's hardness, anti-wearing, and anti-corrosion performance. It also extends the tool life of the mold, allowing for up to 500k shots.
The mold steel used is also hardened with 1*2/S136, further contributing to its durability and performance.
|
|

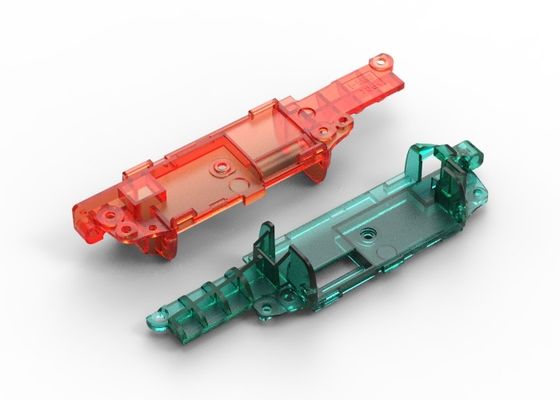

The injection part material for this mold is PC, and the weight of the injection part is 1.5g. The size of the injection part is 16.20 X 66.25 X 11.50mm.
|

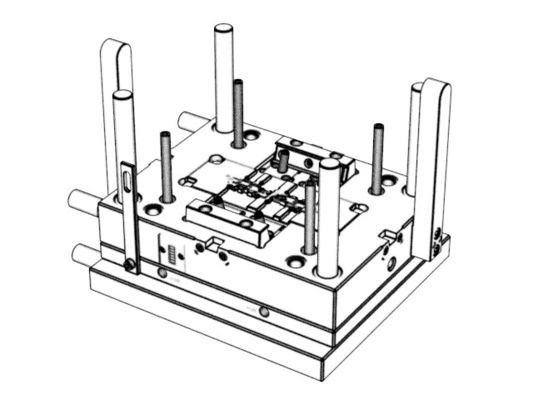

Display diagram
