OEM / ODM ： Cold Runner Injection Molding & Crystal Right Belt 1*2 No 23187-B
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | VR Products |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 550 X 650 X 551 | IMM Tonnage | 280T |
|---|---|---|---|
| Mold Weight | 1188kg | Design Software | 3D:UG 4.0, 2D:CAD |
| Runner | Cold Runner | Mould Life | ≥500000 Shots |
| Mould Base | LKM | ||
| High Light | plastic injection molding cold runner,500000 shots injection molding cold runner |
||
Product Description
Crystal Right Belt (1*2)
No.23187-B

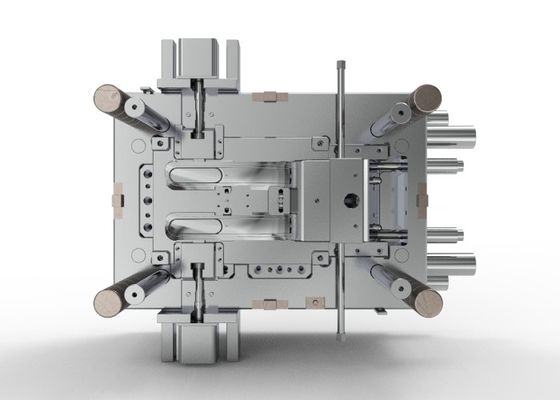

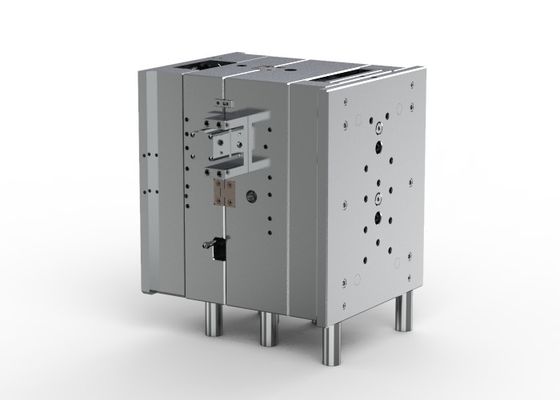

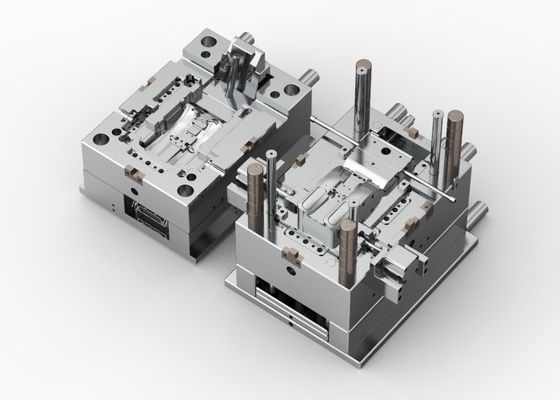

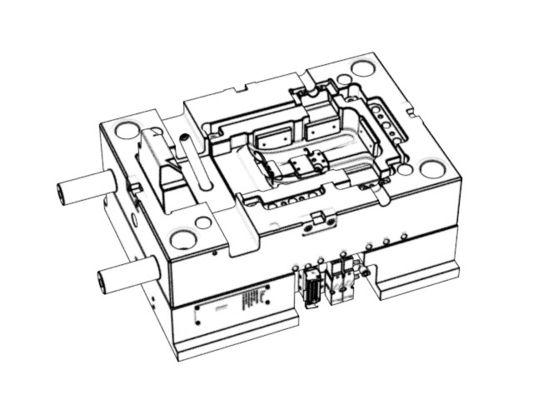

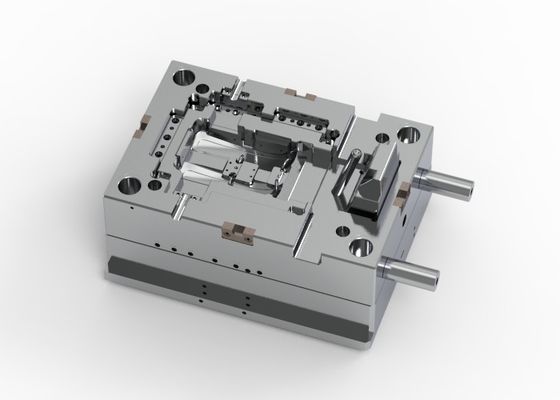

| Presenting a meticulously designed mold featuring a cold runner system and a cashew gate. With dimensions measuring 550mm X 650mm X 551mm, this mold showcases exceptional craftsmanship. |
| The surfaces are treated with MT11010 etching, while the cavity and core are hardened using 1*2/S136 steel, ensuring durability and longevity. Adhering to the esteemed LKM standard, this mold incorporates 1 slide and 5 lifters, facilitating smooth and precise molding actions. The surface finish is further enhanced with MT11010 etching on select surfaces, resulting in a hardness exceeding 600HV. With a net weight of 1188kg, this mold requires an impressive IMM tonnage of 280T. |

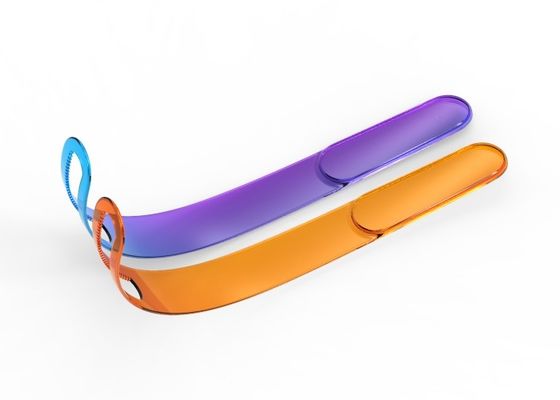

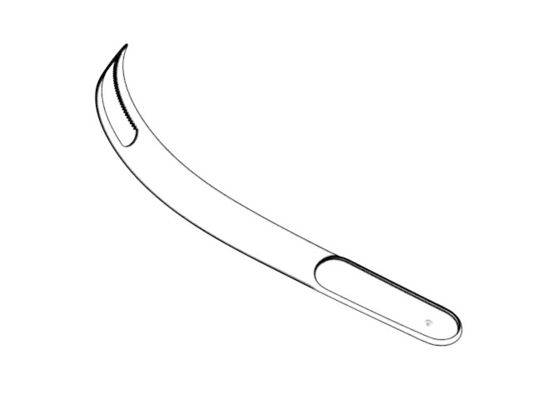

| The molded part itself weighs 25.5g and boasts dimensions of 31mm X 344mm X 6.35mm. |
Display diagram
