OEM / ODM ： Cold Runner Injection Molding & Smart Watch Base Lower Housing 1*4 No.23305
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Smart Watch |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 350.000 X 450.000 X 391.000 | IMM Tonnage | 180T |
|---|---|---|---|
| Mold Weight | 392kg | Tool Life | 500K Shots |
| Gate | Side Gate | Part Net Weight | 1.6g |
| Part Size | 21.41 X 50.40 X 25.18mm | Injection Type | Hot Runner |
| Runner Type | Hot Runner | Steel Of Cavity & Core | Harden (1*4/S136) |
| High Light | plastic cold runner mold,three plates cold runner mold,cold runner injection molding polycarbonates |
||
Product Description

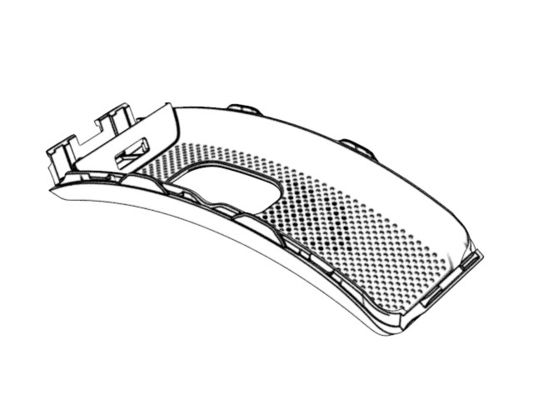

Smart Watch Base Lower Housing (1*4)
No.23305

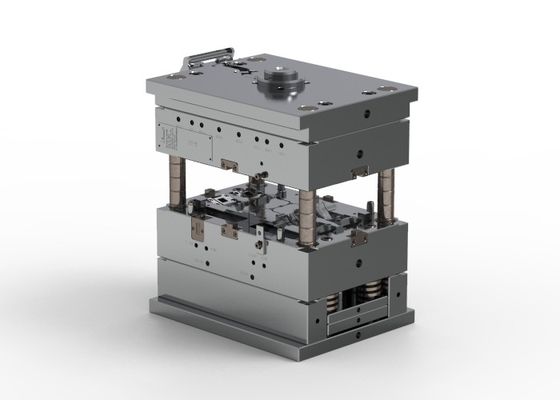

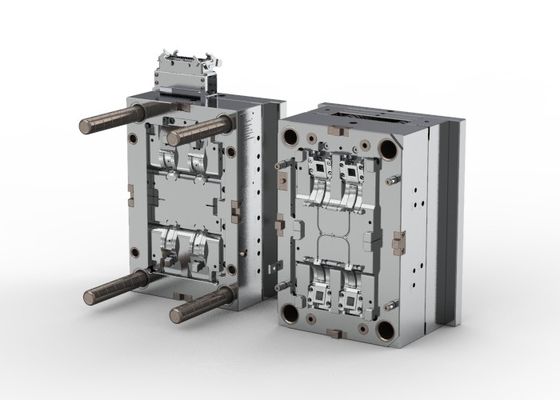

| The mold, with the part number GCI3045 10011090, is a three-plates mold designed for more automatic operation. It has a size of 350x450x391 and follows the LKM standard. |
| The mold base weighs 392kg and is suitable for an injection molding machine with a tonnage of 180T. The mold features a side gate for the PC material, which is used to produce a part with dimensions of 21.41 x 50.40 x 25.18mm and a net weight of 1.6g. |
| The mold is designed for a tool life of 500K shots, ensuring durability and longevity. It utilizes a hot runner system, allowing for even pressure distribution and proper cavity filling, resulting in molded parts with uniform texture density, smooth surfaces, easy demolding, and minimal deformation. |
| The mold surface is polished using A surface EDM with SPI-B1, providing a glossy finish and eliminating flow marks. The cavity and core of the mold are made of hardened steel (1*4/S136), ensuring high hardness, wear resistance, corrosion resistance, and a long tool life, making it suitable for stable high-volume mass production. |
Display diagram
