OEM / ODM ： Cold Runner Injection Molding & Scan Pen Camera Trim Ring (1*4) No.24005-B
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Scanning Pen |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 250 X 250 X 241 | IMM Tonnage | 110T |
|---|---|---|---|
| Mold Weight | 88KG | Part Weight | 0.2g |
| Part Material | POM | Mold Base | Standard FCI2530.509080. |
| Runner | Cold Runner | Mould Life | ≥500000 Shots |
| Design Software | 3D:UG 4.0, 2D:CAD | ||
| High Light | OEM Cold Runner Injection Molding,Camera Trim Ring Cold Runner Injection Molding |
||
Product Description
Scan Pen Camera Trim Ring (1*4)
No.24005-B
Description:
| Cold runner injection molding offers several distinct advantages over other molding processes. Firstly, it allows for reduced material wastage, as the runner system can be reused for subsequent molding cycles, leading to cost savings and increased efficiency. Additionally, the use of a cold runner system enables better control over the molding process, resulting in improved part quality and consistency. This is particularly beneficial for high-precision molding applications where tight tolerances are required. Furthermore, the cold runner design facilitates easier color changes and material transitions, making it a versatile option for manufacturers with diverse production needs. Overall, the Cold Runner Injection Molding process stands out for its cost-effectiveness, precision, and flexibility, making it a preferred choice for many industrial applications. |
Application:
Smart doorbell
Consumer Electronics
plastic shell
plastic accessory
Features:
| Mold base | Standard FCI2530.509080. |
| Mold size | 250 X 250 X 241mm |
| Net weight | 88kg |
| Tool life | 500K shots |
| Features | Make a plating bracke |
| Fit 110T machine | |
|

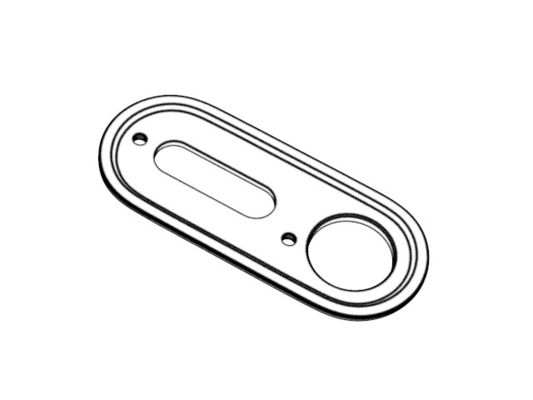

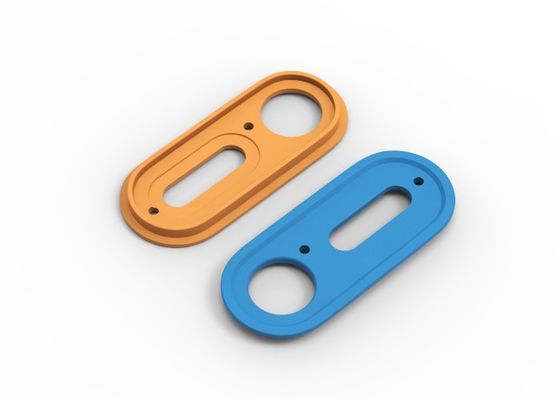

The part material is POM, the part size is 33.65 * 2.26 * 14.52mm, and the part net weight is only 0.2g. |
|
|

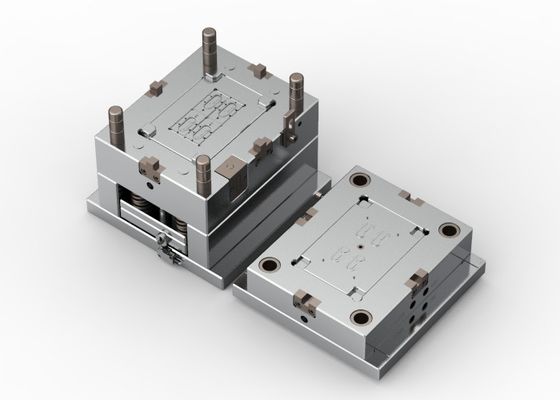

This is a three-plates mold designed with LKM standard, the pin point gate turns to the side gate; the sprue bushing is set in center of mold base; the molded part has stable high quality and needs no post-processing, greatly reducing labor costs. A surface polished to 600# sandpaper, and the secondary surface EDM with Charmilles VDI21#, with smooth cavity surface. Harden the cavity and core with 1*4/S136 to have higher hardness and anti-wearing performance. Smooth runner and stable cavity pressure ensure the molded part has smooth surface and clear details w/o burrs |
|
Advantage:
| Our "Cold Runner Injection Molding" molds offer a range of advantages that make them a preferred choice in the industry. Firstly, they are designed to minimize material wastage, leading to cost savings and environmental benefits. The cold runner system allows for efficient reusability, contributing to overall cost-effectiveness. Moreover, the precise control enabled by the cold runner system ensures consistent part quality, making it suitable for high-precision applications. Additionally, the flexibility of the cold runner design allows for easy color changes and material transitions, catering to diverse production needs. Overall, our Cold Runner Injection Molding process is characterized by its efficiency, precision, and adaptability, making it an ideal solution for various industrial applications. |

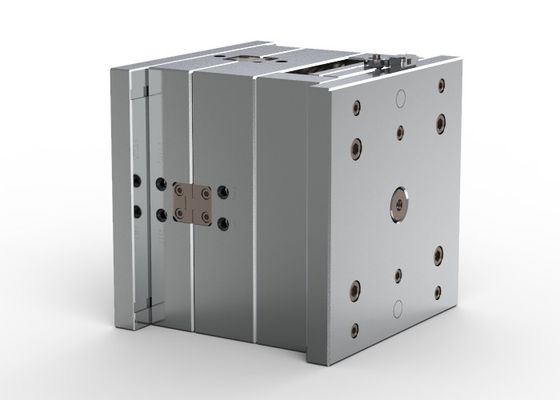

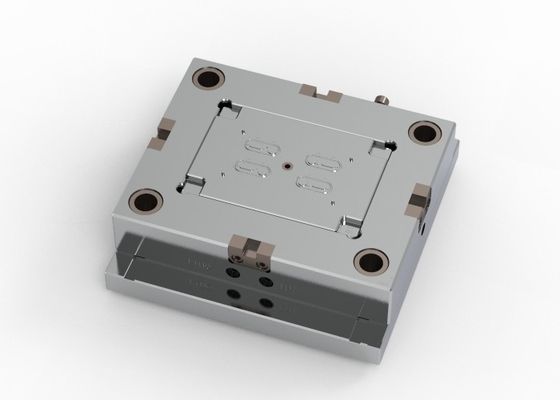

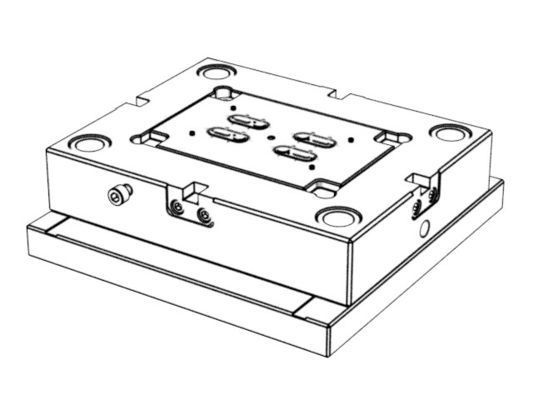

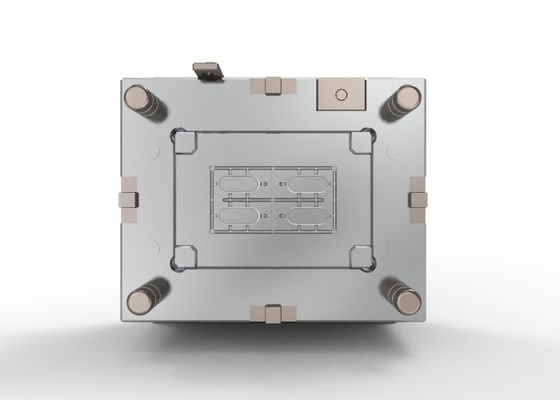

Display diagram
