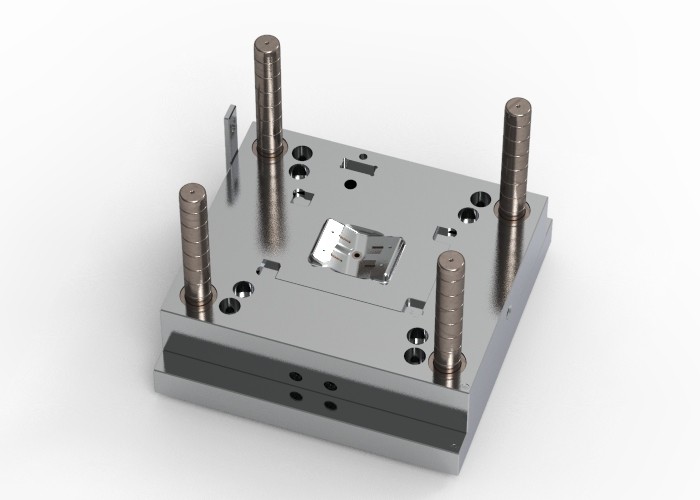

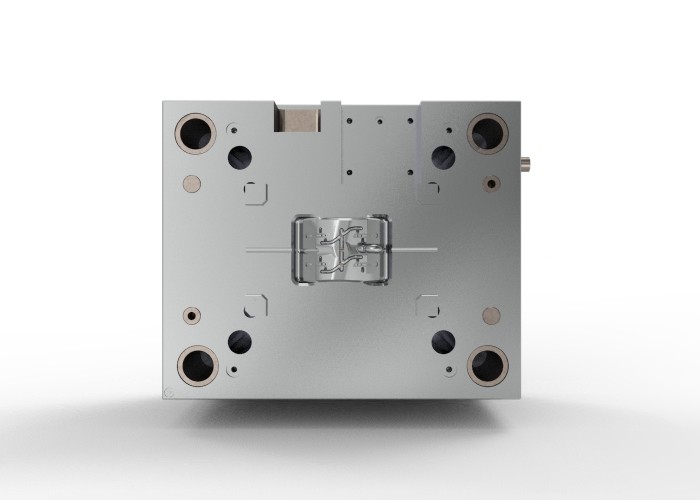

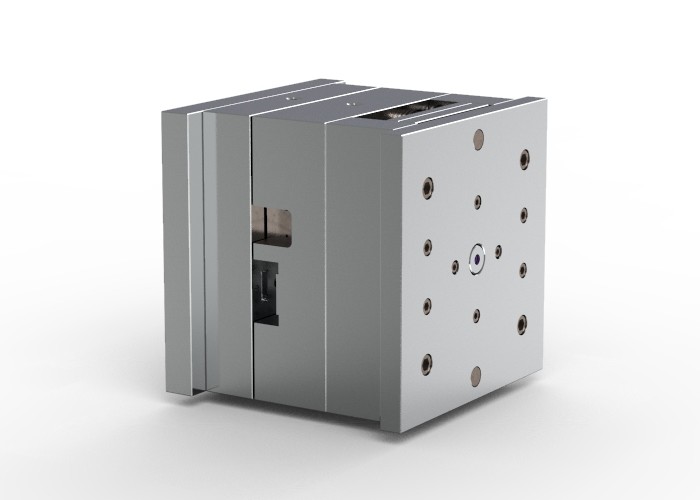

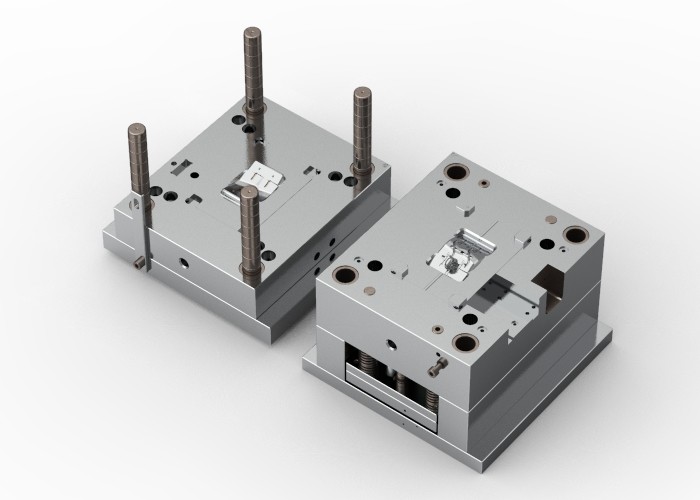

key (1*8)/ Cold runner / Two-plates mold No.19017
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Overear Headphone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 300.000 X 300.000 X 291.000 | IMM Tonnage | 110T |
|---|---|---|---|
| Mold Weight | 155KG | Type | Two-plates Mold |
| Standard | LKM | Gate | Side Gate |
| Part Material | PC | Part Weight | 0.1g |
Product Description
key (1*8)
No.19017
| Size | Length | Width | Height | Type | Standard | Gate | Net weight |
| 300 | 300 | 291 | Two-plates mold | LKM | Side gate | 155kg |
Fit 110T machine
| This two-plates mold has smooth surface, low roughness and uniform wall thickness. The surface mirror EDM with VDI 10#; harden the cavity and core with 1*8/S136 to have good hardness, strength, anti-wearing and anti-corrosion performance, with tool life up to 500k shots | |||

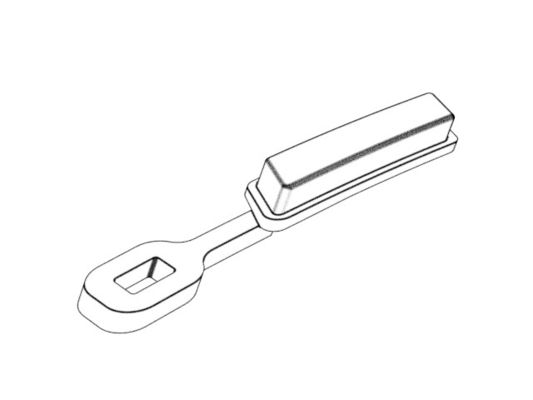

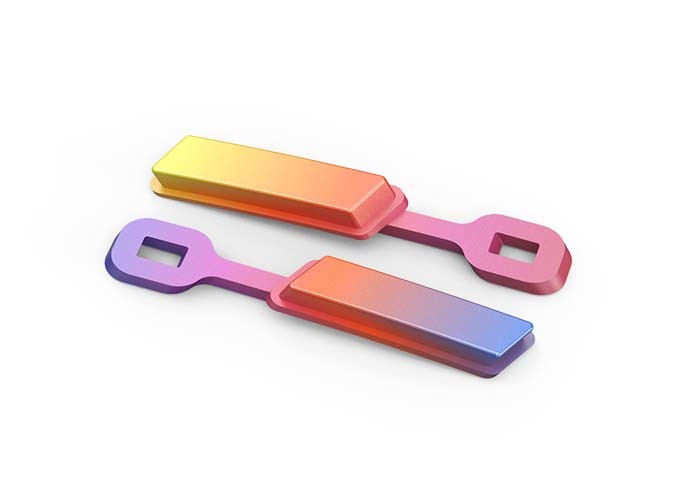

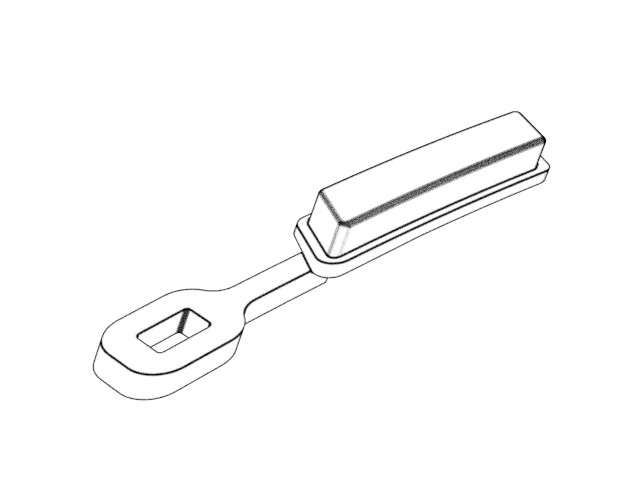

| Part | Part material | PC | ||
| Size | 3.92 X 20.70 X 11.42mm | |||
| Weight | 0.1g | |||
| With scientific vent holes and groove to timely discharge the air and gas in the melt, the parts have smooth surface w/o burrs, short cycle time, no material shortage, w/o gas marks and flow marks, and minimized cold slug | |||||

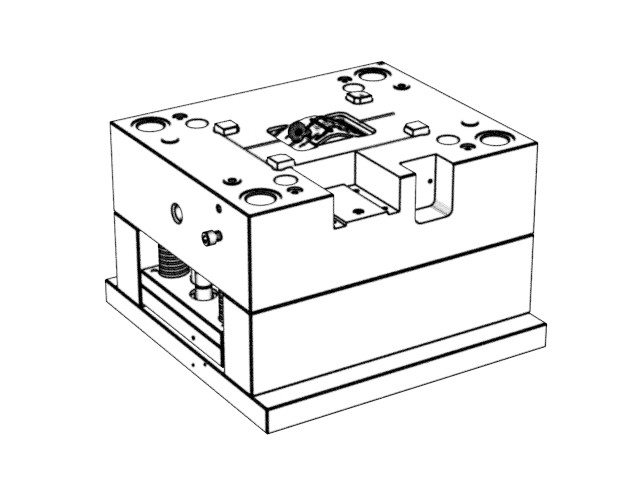

Display diagram
