OEM / ODM ：Precision Machining Molds / Bracket in glasses (1*2) No.23058
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Camera |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | 5 Slides & 2 Lifters | Size | 320.000 X 350.000 X 316.000 |
|---|---|---|---|
| IMM Tonnage | 180T | Mold Weight | 222kg |
| Mold Base | FCI2735 609080 | Standard | LKM |
| Type | Three-plates Mold | Gate | Pin Point Gate |
| Part Weight | 1.5g | Injection/Runner Type | Cold Runner |
| Slide | 5 | Lifter | 2 |
| Part Material | PC | Part Size | 16.20 X 66.25 X 11.50mm |
| High Light | LKM pvc injection molding,500k Shots pvc injection molding,Cold Runner pvc injection molding |
||
Product Description

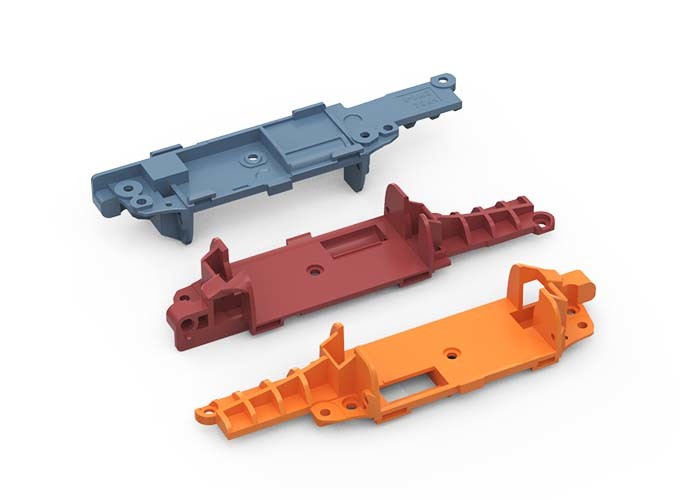

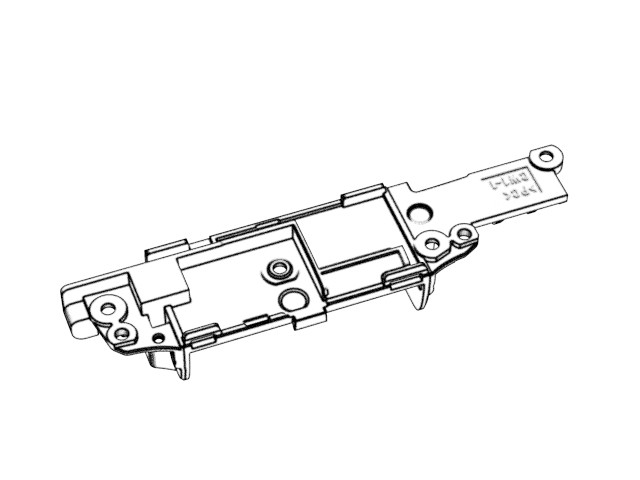

Bracket in glasses (1*2)
No.23058
| [Mold base]: FCI2735 609080 [Size]: L 320mm | W 350mm | H 316mm [Standard]: LKM |
[Mold weight]: 222kg |
||||
☆ [IMM tonnage]: 180T
☆ [Features]: 5 slides & 2 lifters (easy to demold)
☆ [Type]: three-plates mold
(composed of core, cavity and discharge plate, with flexible gate,
self-degating, no obvious gate marks)
☆ [Gate]: Pin point gate
(flexible gate position, the melt has strong fluidity and high temperature,
and the molded parts have clear details and high glossiness)
☆ [Part material]: PC
☆ [Size]: L16.2mm | W66.25mm | H11.5mm | ☆ [Part weight]: 1.5g
|
[Injection/Runner Type]: Cold Runner
[Surface finish]: |
|||||

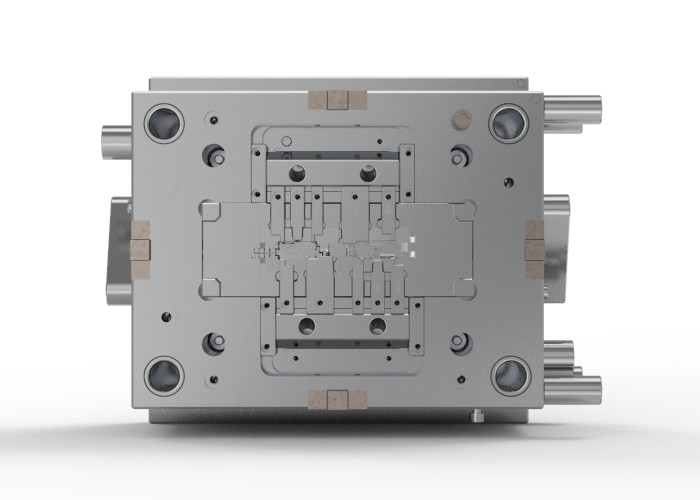

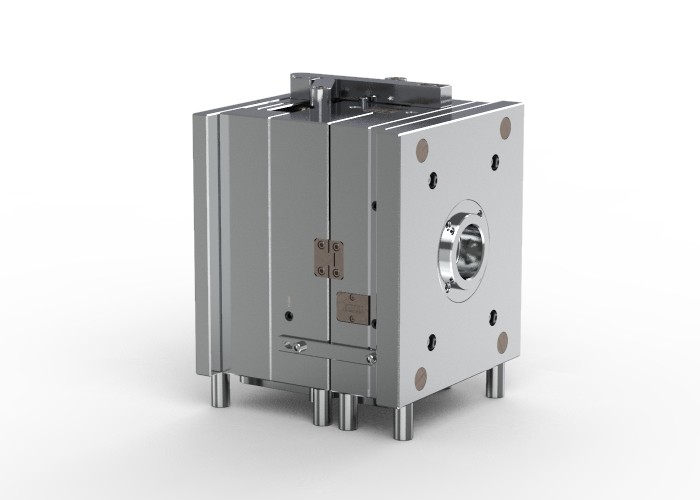

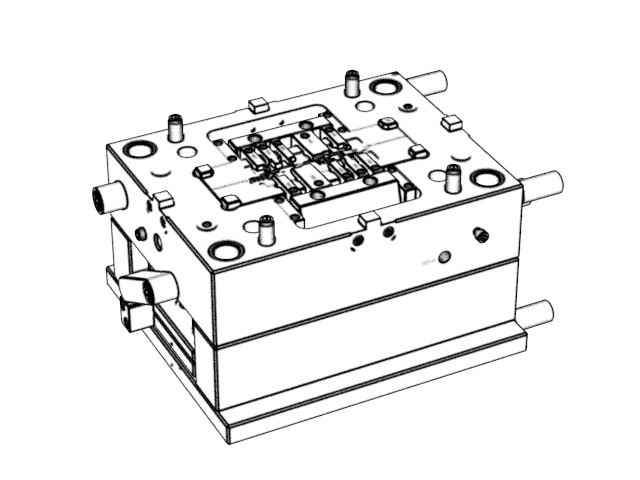

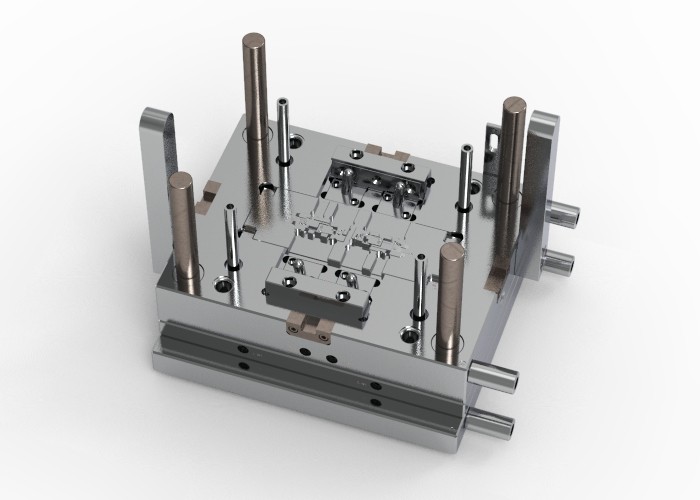

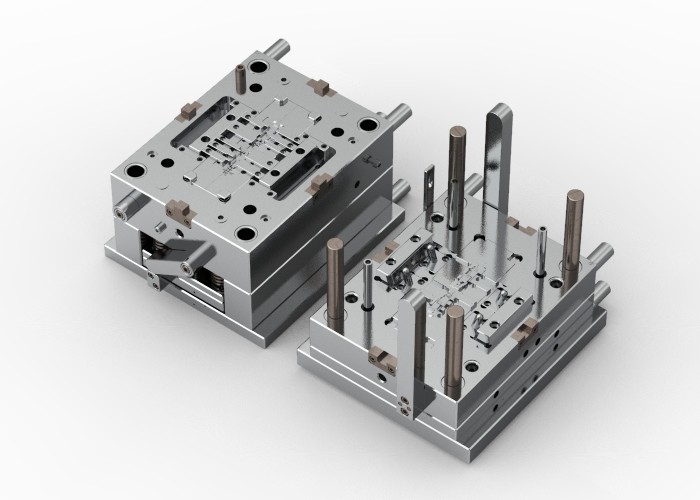

Display diagram
