OEM / ODM：Custom consumer electronics molds / Smartwatch Front Housing Trim No.22400
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Smart Watch |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 300 X 300 X 316 | IMM Tonnage | 80T |
|---|---|---|---|
| Mold Weight | 175kg | Runner | Cold Runner |
| Mould Life | ≥500000 Shots | Mould Material | Harden（1*4/S136） |
| Design Software | 3D:UG 4.0/2D:CAD | Part Material | PC |
| Types Of Mold | Custom Injection Molds |
Product Description

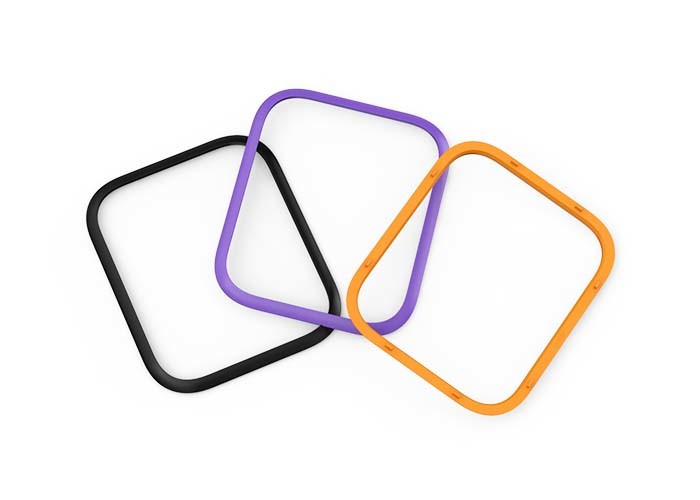

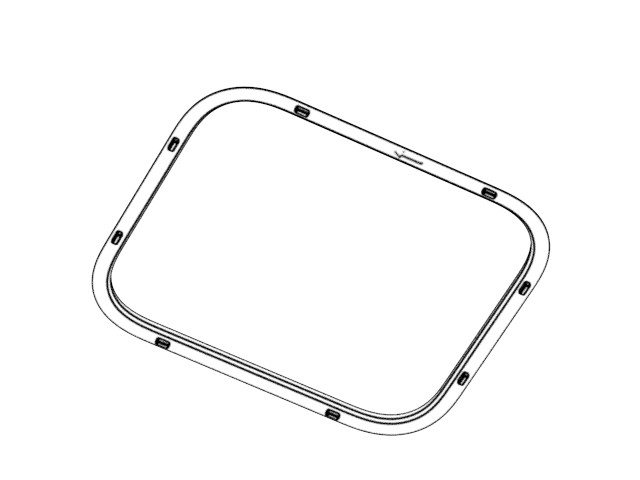

Smartwatch Front Housing Trim
No.22400
| Part size | 300 X 300 X 316mm | Net weight | ||
| Mold base | Standard (FCI2530.609080) | 175kg | ||
★ Fit 80T machine
The mold is designed with a tab gate, the pin point gate turns to the side gate; more suitable for
the part molding and quality control; the mold is made from high grade steel, with the tool life up
to 500k shots
| Part material | PC | Part weight | 0.5g | Part size | 37.6*45.1*2.1 |
| Standard | LKM | Injection/runner type | Cold runner | ||
The large surface of the mold EDM with Charmilles VDI24#, and harden the cavity and
core with 1*2/S136, so that the parts have more accurate details and uniform molding quality.

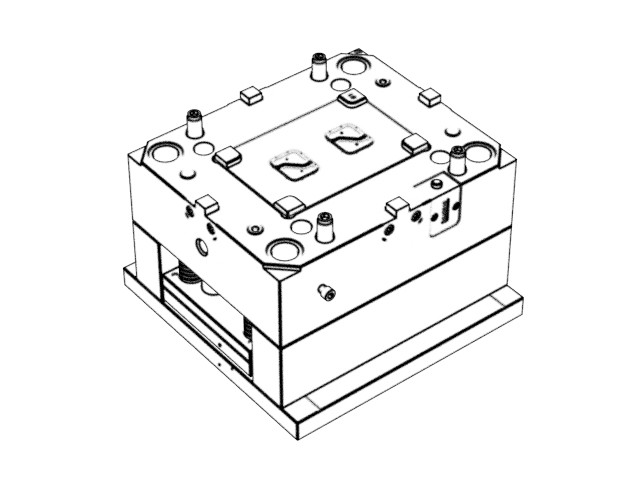

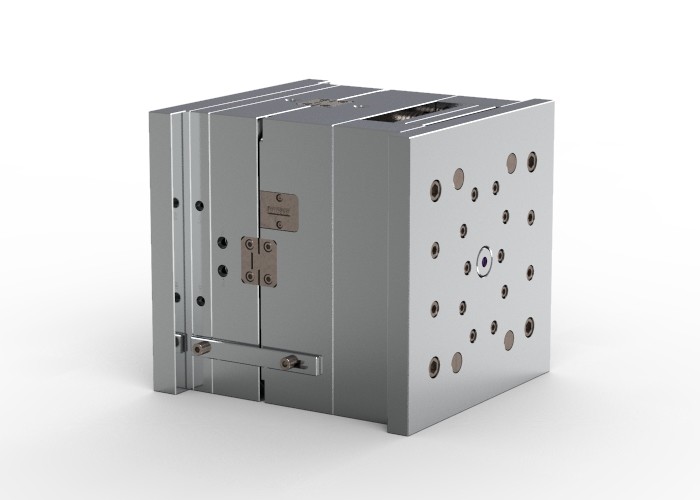

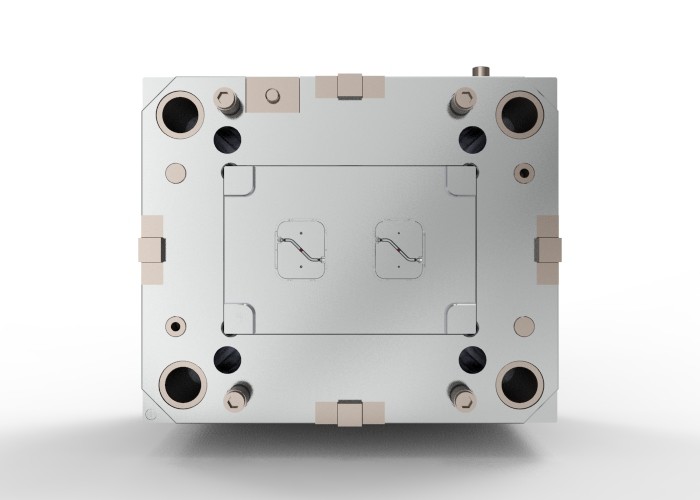

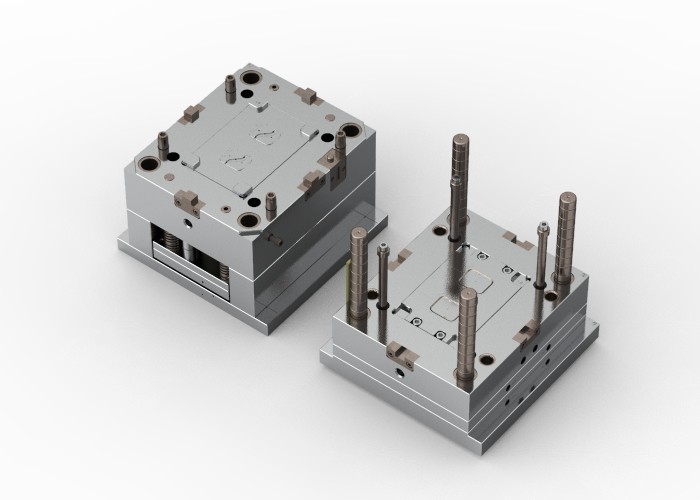

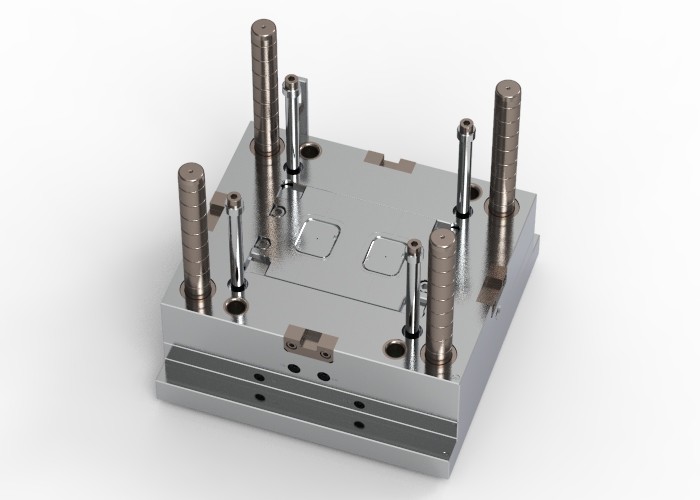

Display diagram
