OEM / ODM : Custom Precision Machining Molds / Transparent glasses camera housing+bracket (1+1) No.23055
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Camera |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | 2 Slide & 4 Lifter | Size | 280.000 X 270.000 X 296.000 |
|---|---|---|---|
| IMM Tonnage | 140T | Mold Weight | 132kg |
| Mold Base | Standard Mold Base FCI2327 608080 | Type | Three Plate |
| Steel Of Cavity | Harden With 1+1/S136 | Steel Of Core | Harden With 1+1/S136 |
Product Description

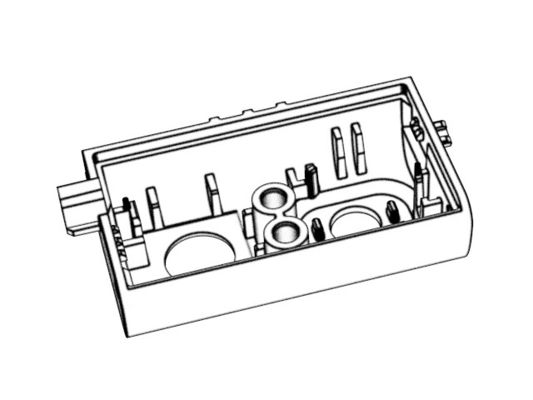

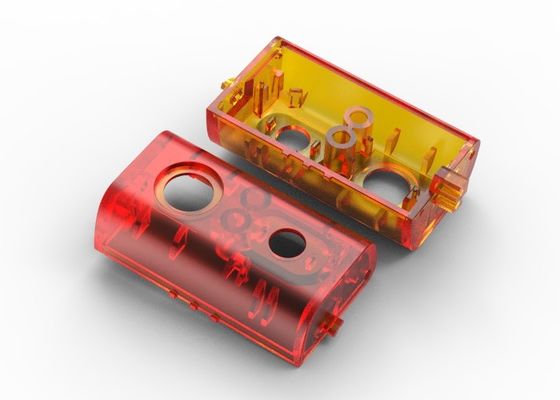

Transparent glasses camera
housing+bracket (1+1)
No.23055
| [Length]: 280mm [Width]: 270mm [High]: 296mm [Mold Base]: Standard mold base P/N: FCI2327 608080 [Standard]: LKM |
[Net weight]: 132 kg | |||
| [IMM tonnage]: 140T |
||||
☆ Tool life up to 500k shots
| [Gate]: ① 1 Sub gate ② 1. Sub gate |
||
| [Surface finish]: | ||
| Ⅰ. Housing ① A surface VDI24 etch ② Inner surface EDM with VDI24# (Charmilles) |
||
| II. Bracket ① A surface EDM with VDI27# (Makino) ② Gluing surface EDM with VDI21# (Makino) |
||
| [Type]: Three-plates mold [Part material]: PC [Steel of cavity and core]: harden with 1+1/S136 [Injection/Runner Type]: Cold Runner |
|||
|
[Part weight]: 2g |
|||

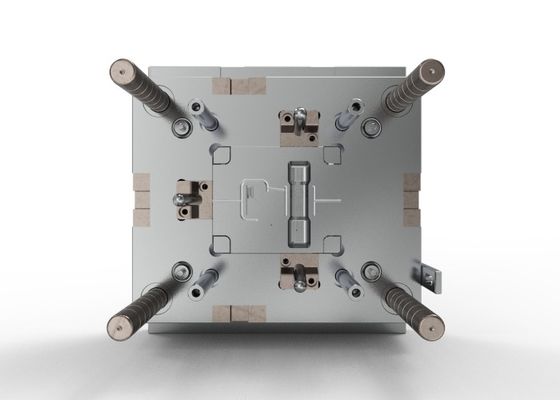

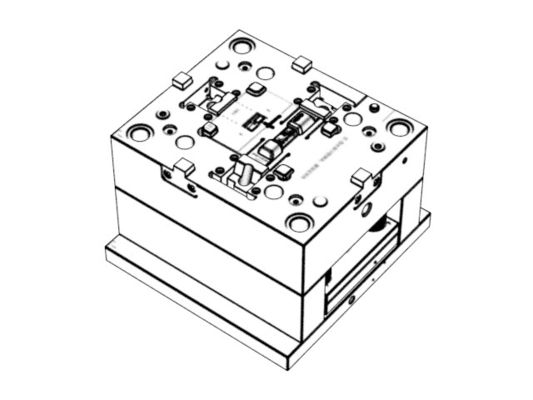

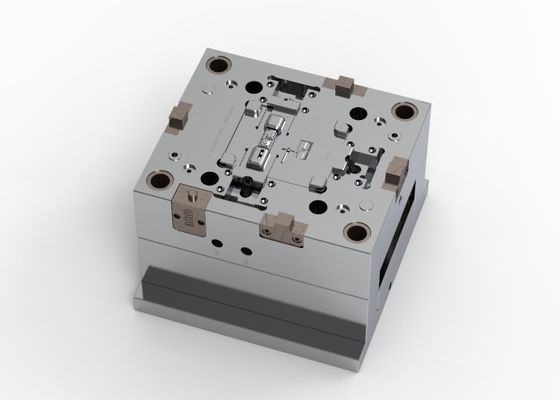

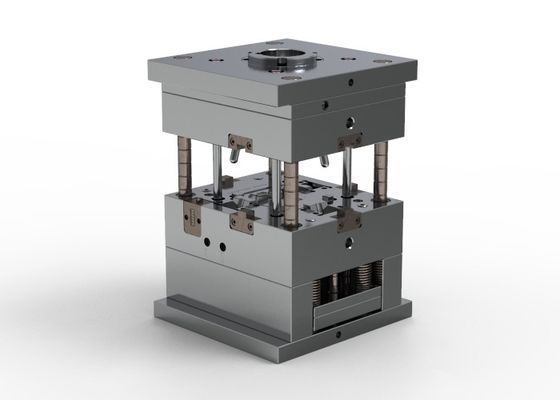

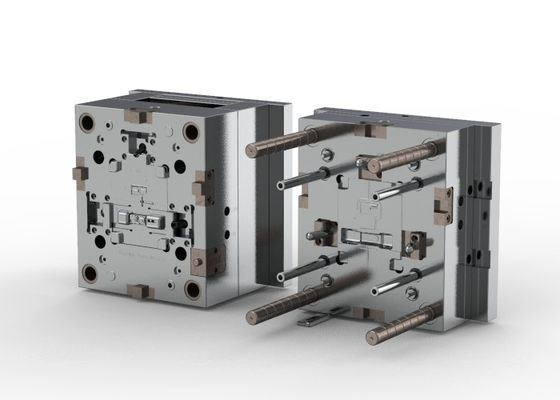

Display diagram
