OEM / ODM ：Precision Machining Molds / Transparent glasses middle bracket (1*2) No.23058
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Camera No.CWM23058 |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 320.000 X 350.000 X 316.000 | IMM Tonnage | 180T |
|---|---|---|---|
| Mold Weight | 222kg | Runner | Hot Sprue Cold Runner |
| Mould Life | ≥500000 Shots | Mould Base | LKM |
| Mould Material | Harden（1*4/S136） | Surface Treatment | Polishing |
| Design Software | 3D-UG 4.0/ 2D-CAD | ||
| High Light | Glasses Bracket Cold Runner Injection Molding,180T Cold Runner Injection Molding,Polishing LDPE Injection Molding |
||
Product Description
Transparent glasses middle bracket (1*2)
No.23058
| [Mold base]: FCI2735 609080 [Size]: L 320mm X W 350mm X H 316mm [Standard]: LKM |
Slide | Lifter | Net weight | |||
| 5 | 2 | 222kg | ||||
☆ [IMM tonnage]: 180T
☆ [Injection/Runner Type]: Cold Runner

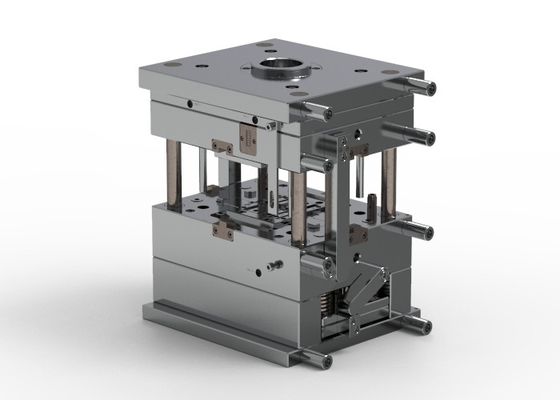

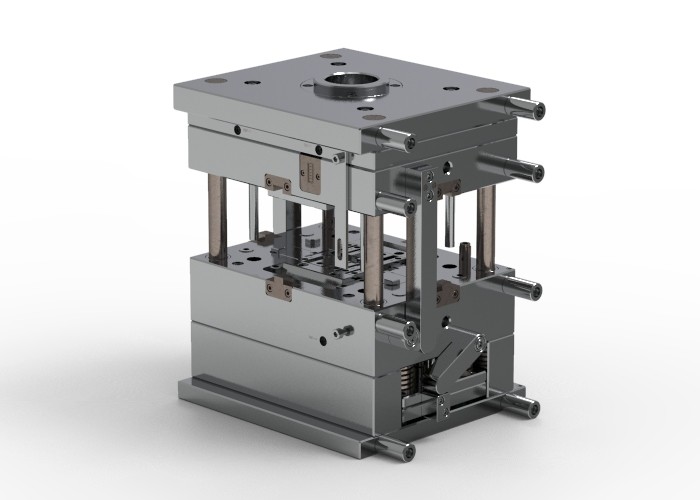

☆ [Type]: Three-plates mold
| Surface finish |
Improve the mold surface glossiness and reduce pits, so that the molded parts have smooth surface, precise details, w/o sticking with the mold |
||||
| A surface VDI24 etch | |||||
| A surface polished to 800# sandpaper | |||||
| Steel of cavity: harden with 1*2/S136 |
Improve the mode hardness, anti-wearing and anti-corrosion performance, and has a tool life up to 500k shots |
||||
|
Mold steel: harden with 1*2/S136 |
|||||

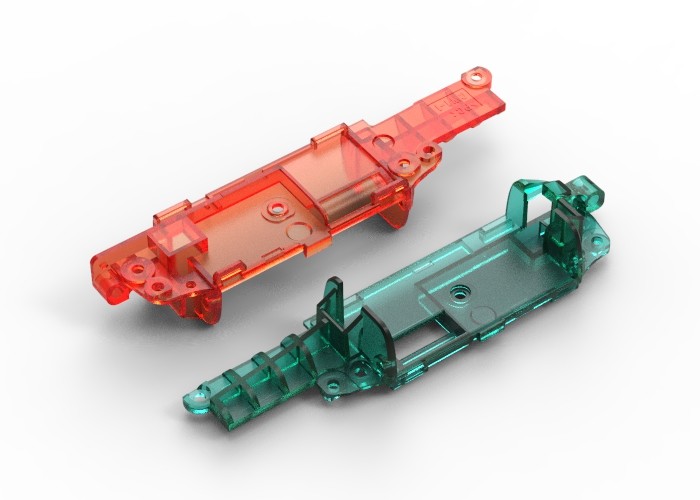

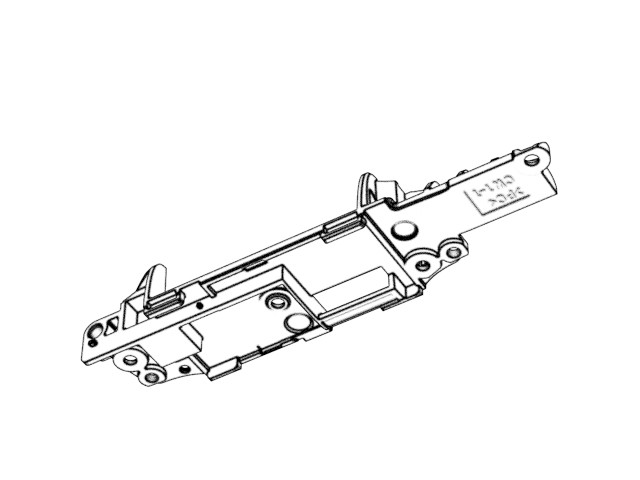

| ☆ [Part material]: PC ☆ [Part weight]: 1.5g ☆ [Part size]: 16.20 X 66.25 X 11.50mm |
|||||

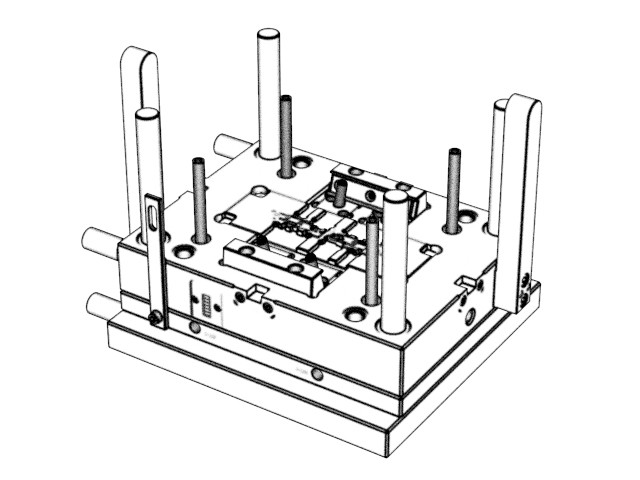

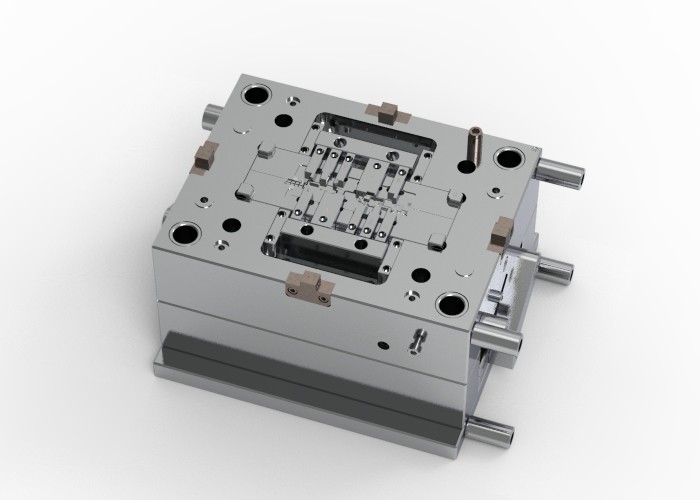

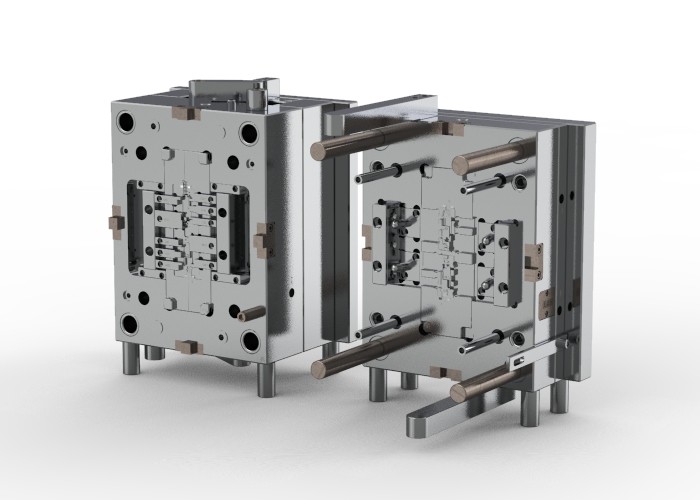

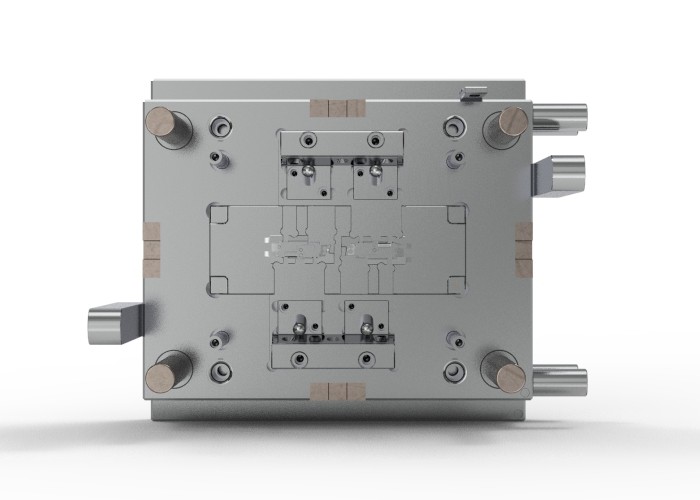

Display diagram
