OEM / ODM：Custom consumer electronics molds / Transparent Front Housing Trim of Smartwatch No.22400
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Smart Watch |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 300 X 300 X 316 | IMM Tonnage | 80T |
|---|---|---|---|
| Mold Weight | 175kg | Standard | LKM |
| Part Material | PC | Part Weight | 0.5g |
| Mold Base | Standard (FCI2530.609080) | Gate Type | Tab Gate |
Product Description

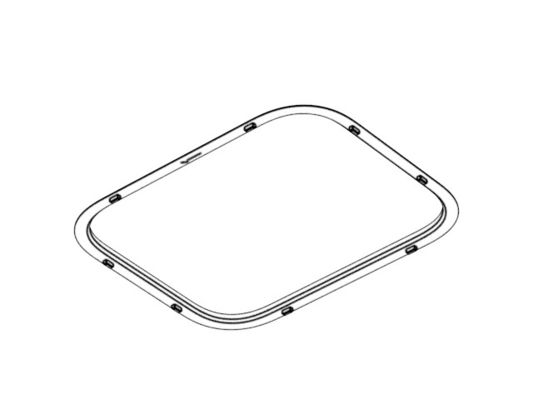

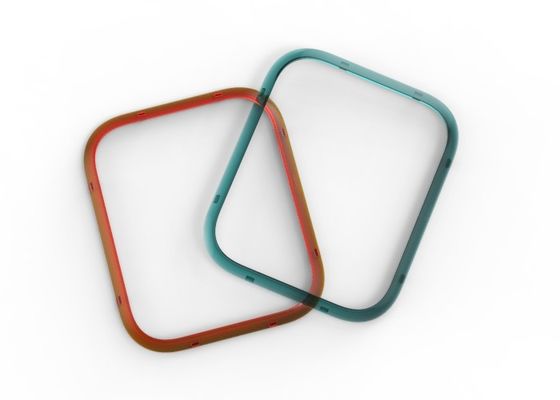

Transparent Front Housing Trim of Smartwatch
No.22400

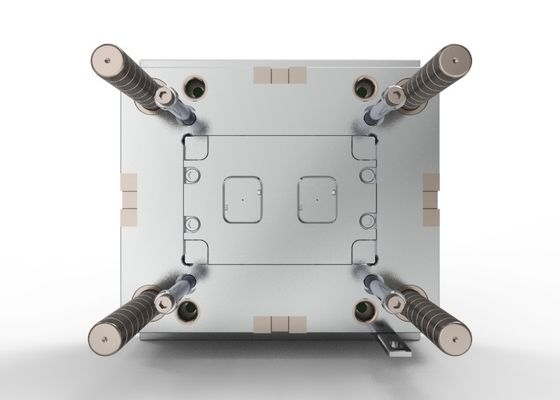

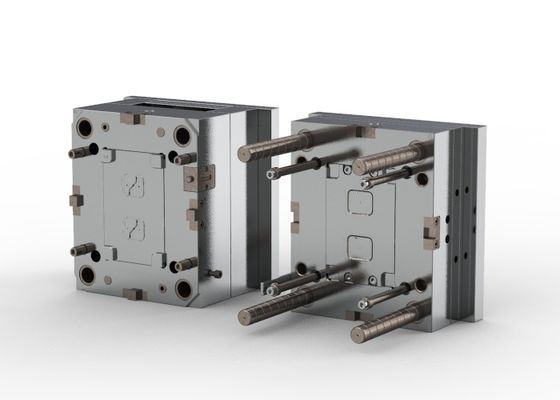

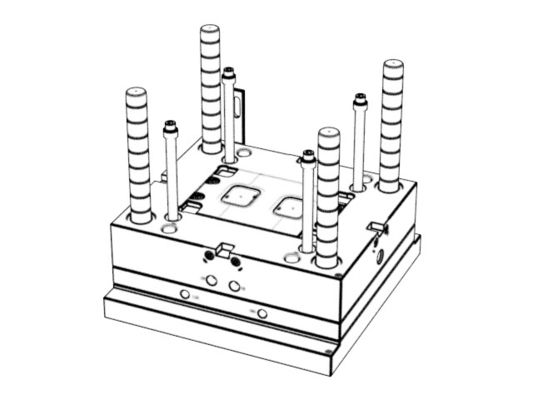

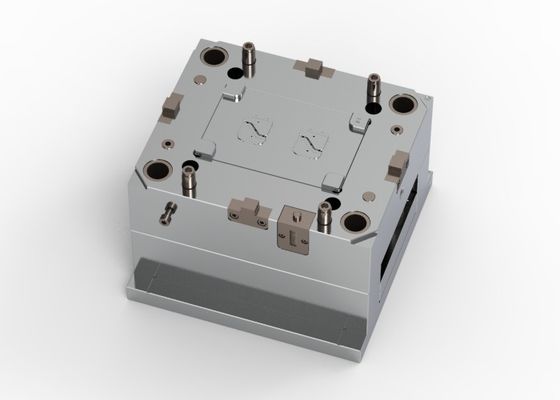

The mold was developed by Chitwing (design and manufacturing) with mature machining
technology, using standard mold base FCI2530.609080; large surface EDM with Charmilles
VDI24#, LKM standard
| Size | 300 X 300 X 316mm | ||
| Net weight | 175kg | ||

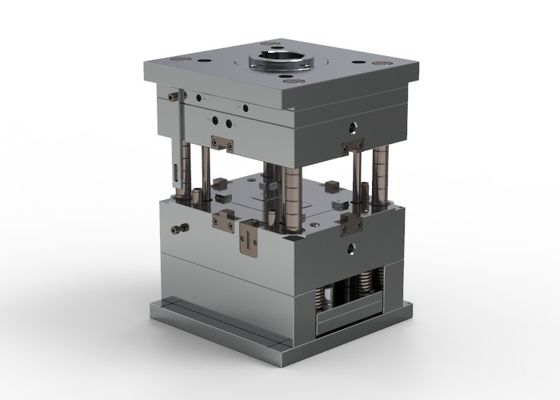

Three-plate mold structure, harden the cavity and core, so that the tool life is up to 500k shots
| Injection/runner type | Cold runner | ||
| Gate | Tab gate (the pin point gate turns to the side gate) | ||
| Part material | PC | ||
| Part size | Part weight | ||
| 37.6*45.1*2.1 | 0.5g | ||
☆ IMM tonnage: 80T
Display diagram
