OEM / ODM ： Hot Runner Injection Molding & Flat Front Shell (1*1) No.23603
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Tablets |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 450.00 X 500.00 X 556.00 | IMM Tonnage | 180T |
|---|---|---|---|
| Mold Weight | 600kg | Part Material | PC+20%GF |
| Design Software | <3D:UG 4.0>/ <2D:CAD> | Runner | Hot Runner |
| Mould Life | 500，000 Shots | ||
| High Light | Tablet Housing abs plastic molding,PC abs plastic molding,180T abs plastic molding |
||
Product Description
Flat Front Shell (1*1)
No.23603
| Size | 450.00 X 500.00 X 556.00mm | |||
| Injection/runner type | Hot runner | |||
| Standard | Type | Gate | ||
| LKM | Three-plates mold | Pin point gate | ||
Custom mold base, 2x hot runner valve gates turn to cold runner pin point gates, 4 slides and
8 lifters, uniform wall thickness, minimized cold slug
Part material: PC+20%GF
Tool life: 500k shots
| Surface finish | |||
|
A surface polished to 800# sandpaper |
Gluing surface (jet & PSA) EDM with VDI21# |
Other surfaces EDM with VDI27# |
|

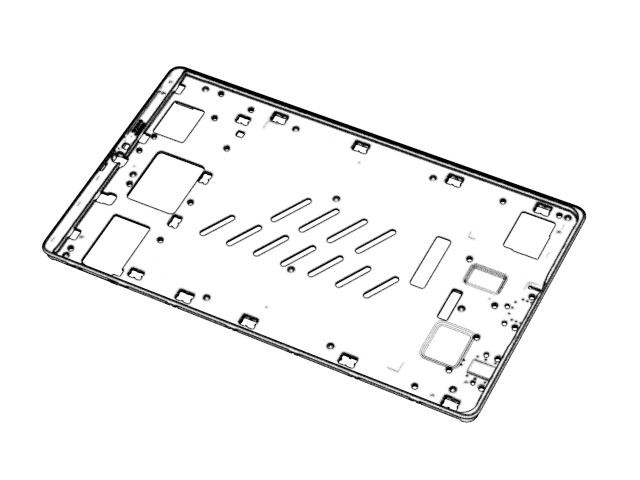

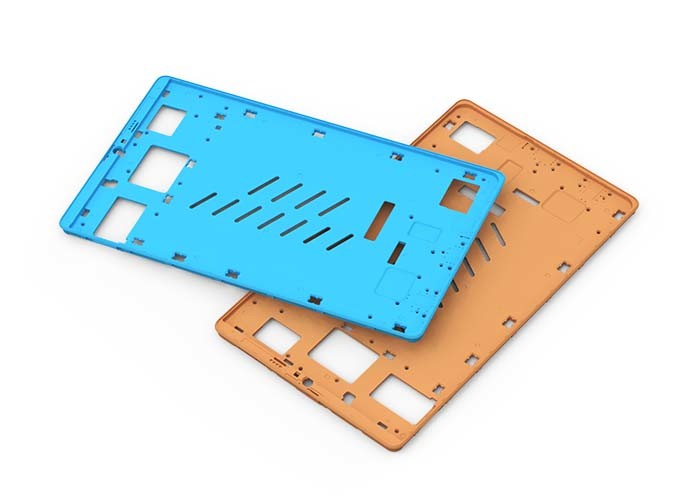

The mold net weight is 600 kg, fit 180T machine. The part weight is 42g,
and the part size is 123.98 X 211.74 X 7.19mm

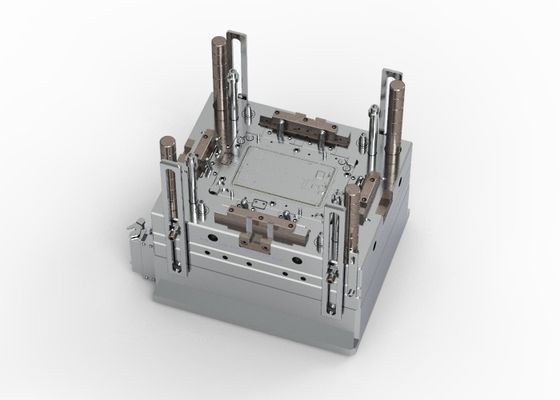

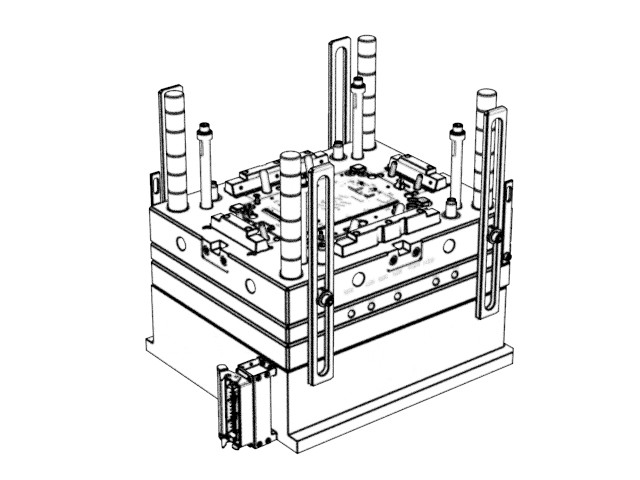

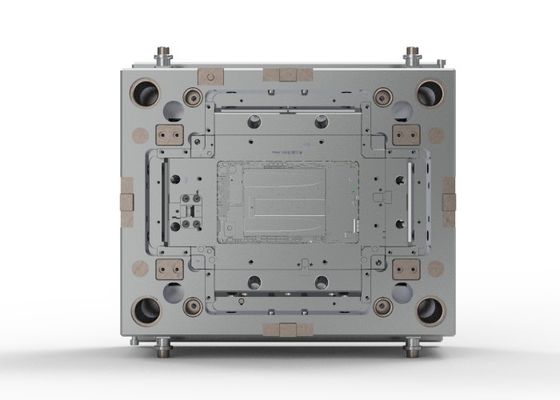

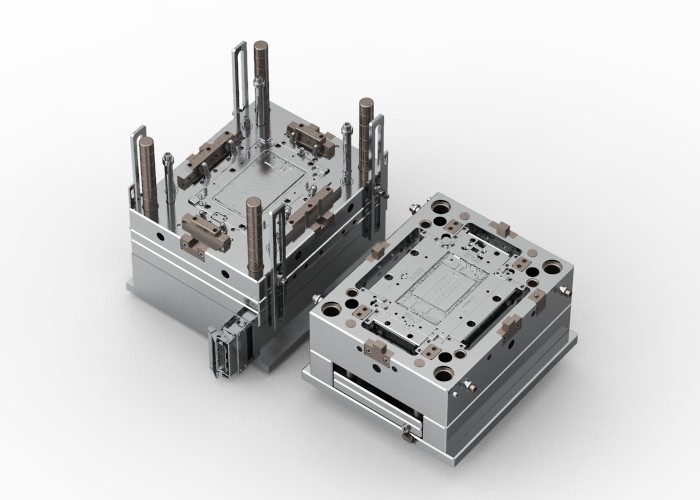

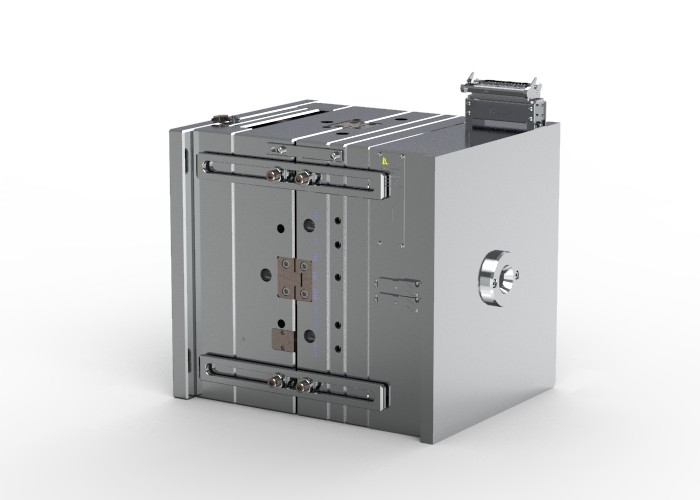

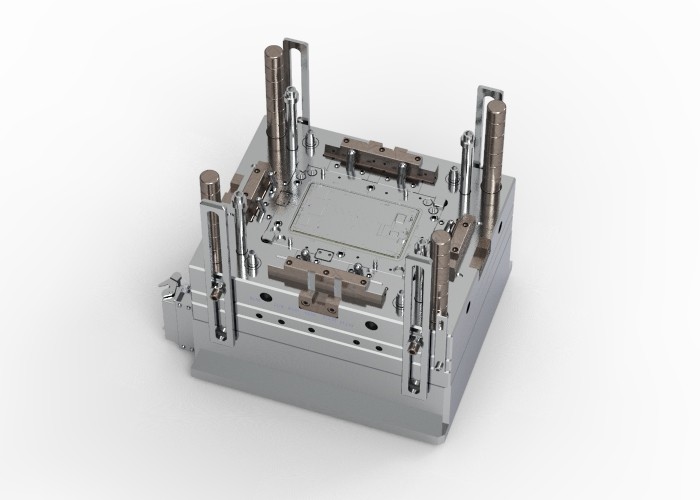

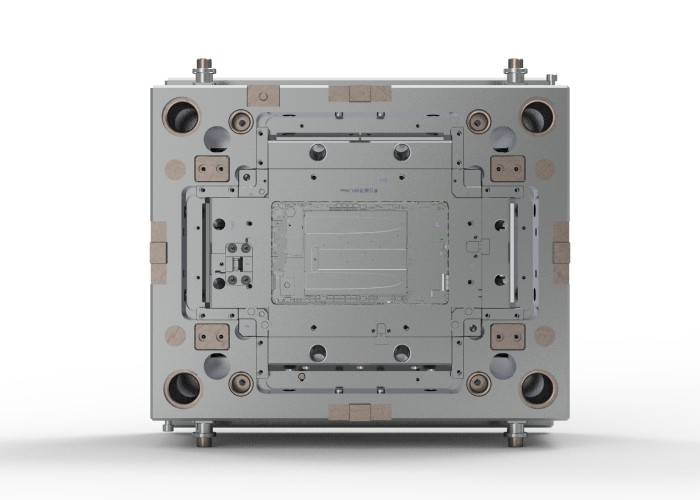

Display diagram
=
