OEM /ODM : Coustom electronic enclosures mold / Transparent Beauty Instrument Upper Housing (1*8) No.24311-B
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Beauty Apparatus |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 350.000 X 400.000 X 451.000 | IMM Tonnage | 180T |
|---|---|---|---|
| Mold Weight | 395kg | Mold Base P/N | CI3040 8012090 |
| Standard | LKM | Lifter | 9 |
| Gate | Submarine Gate | Part Material | PPS+30%GF |
| Type | Two-plates Mold | Injection/runner Type | Hot Runner |
| High Light | Beauty Housing Hot Runner Injection Molding,500k Shots Hot Runner Injection Molding,LKM two plate injection mould |
||
Product Description
Transparent Beauty Instrument
Upper Housing (1*8)
No.24311-B
| Mold base P/N | ||
| CI3040 8012090 | ||
| Mold size | Length | Net weight |
| 350 | ||
| Width | 395kg | |
| 400 | ||
| Height | IMM Tonnage | |
| 451 | ||
| Standard | Lifter | 180T |
| LKM | 9 | |
|
|
||||||||||||||||||||||||||||||||
Mold life≥ 500k shots
| The mold is developed, designed and manufactured by Chitwing. Taking the part appearance and economic applicability into full consideration, the mold is provided with two-plate mold structure, is precisely occluded and free of leakage, and is designed with hot runner and submarine gate. The gate is invisibly located inside the part and the hot runner is excellent to ensure the uniform flow of molten mass and the consistent molding quality of finished parts. The critical surface of the mold EDM with 1000# to make the mold highly clean, so that the molded part is more smooth in surface, and free of splay mark, gas marks, clear details and strong expressiveness | |

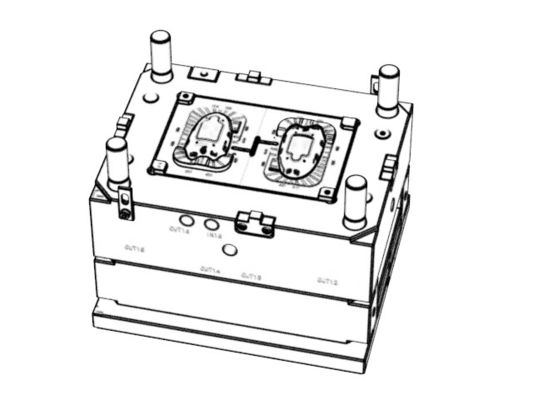

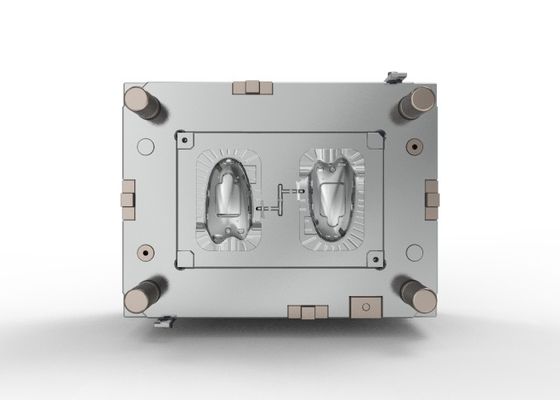

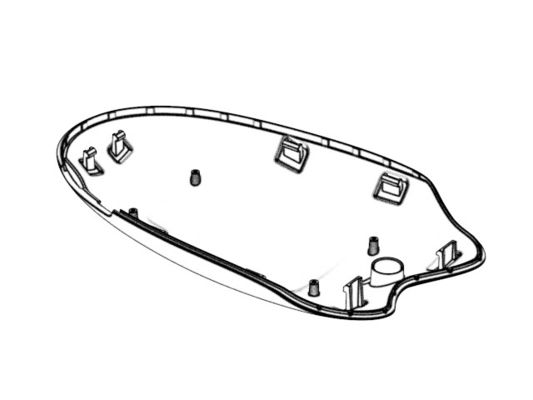

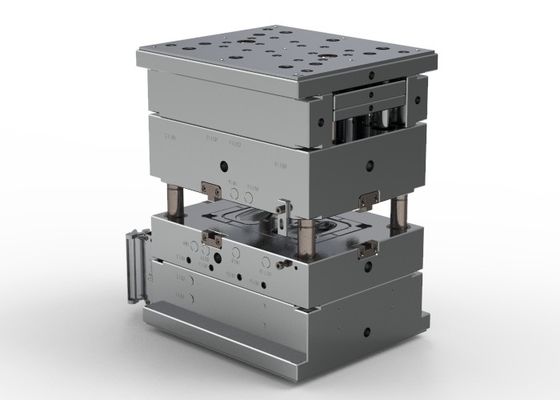

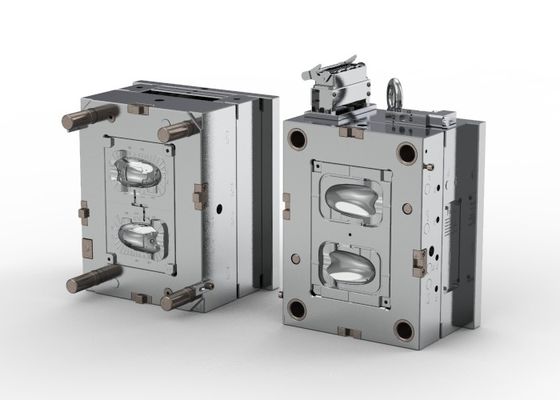

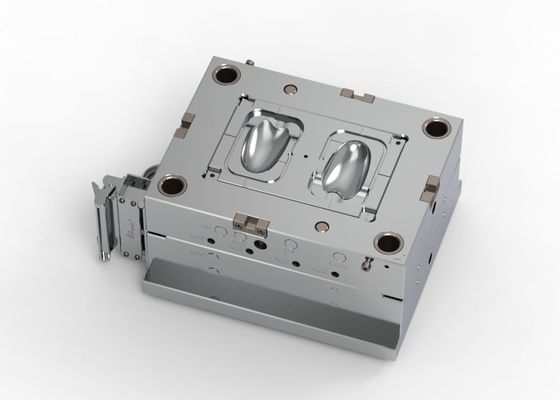

Display diagram
