OEM / ODM ： Hot Runner Injection Molding & Tablet Battery Cover (1*1) No.23605
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Tablets |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Mold Size | 450 X 500 X 566（mm） | Mold Weight | 600（kg） |
|---|---|---|---|
| Injection/runner Type | Hot Runner | Type | Three-plates Mold |
| Material | PC+10%（GF） | Standard | LKM |
| Gate | Pin Point Gate + Side Gate | ||
| High Light | Battery Cover Hot Runner Injection Molding,Hot Runner Injection Molding Three Plate |
||
Product Description

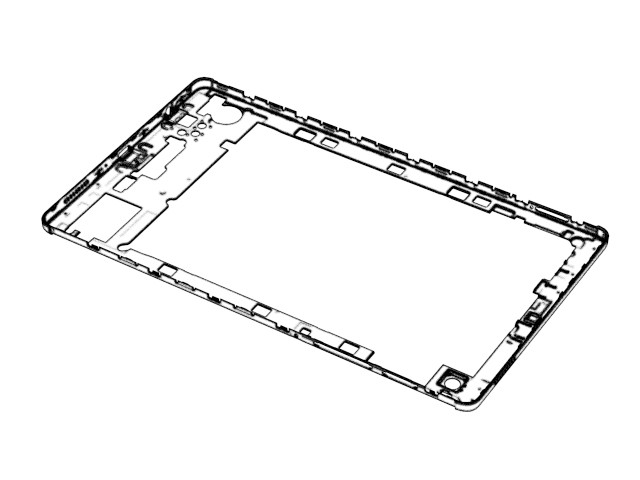

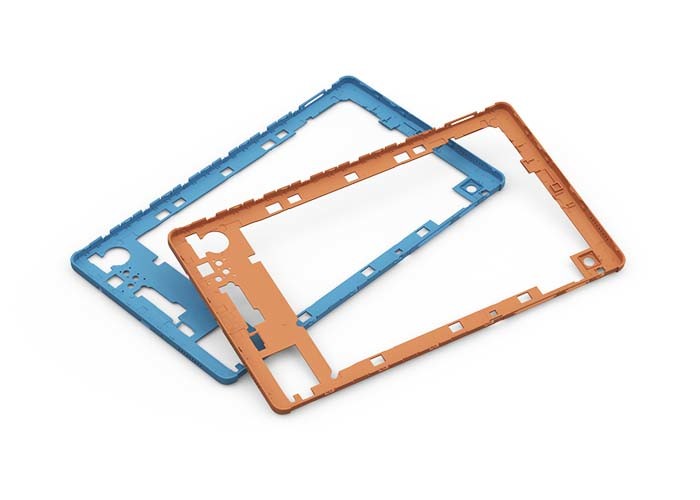

Tablet Battery Cover (1*1)
No.23605
|
2x hot runner valve gate turn to cold runner pin point gates and custom mold base, moderate size of 450 X 500 X 566mm, net weight of 600kg, fit 180T machine |
| Surface finish | |||||||
| A surface polished to 800# sandpaper | Inner surface EDM with VDI21# | ||||||
| Steel of cavity | Harden (1*1/S136) | Steel of core | Harden (1*1/S136) | ||||
| Standard: LKM | Type: Three-plates mold | |
| Material: PC + 10%GF | Injection/runner type: Hot runner | |
| Part size: 212.45 x124.68 x7.58mm |
Part weight: 12g |
|

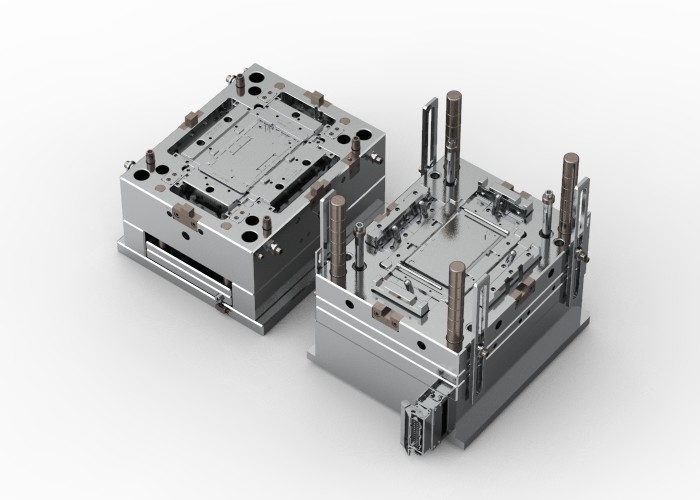

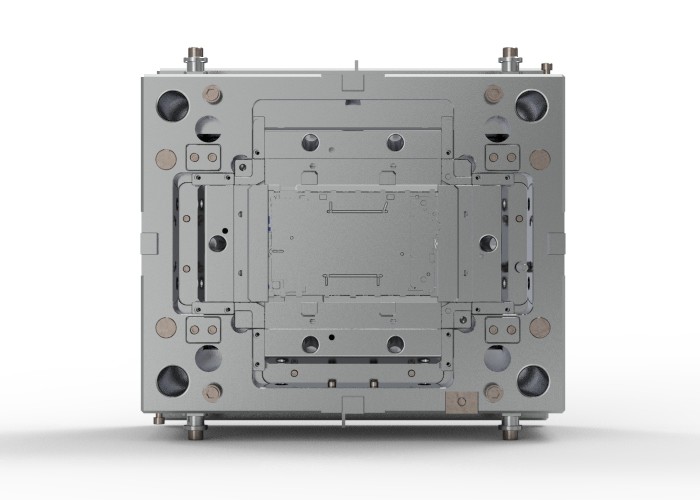

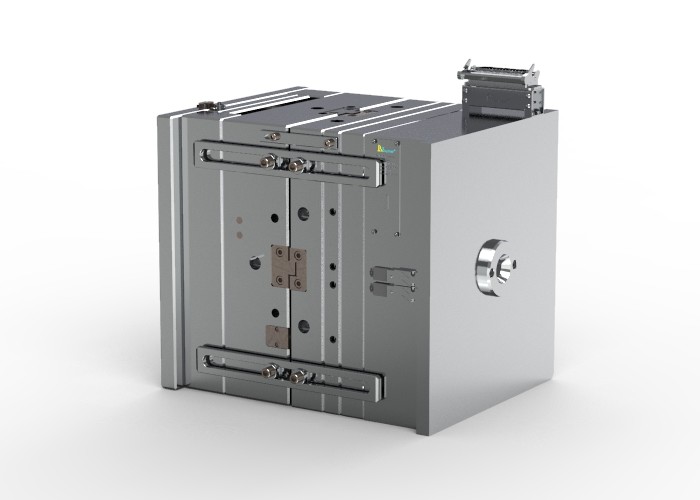

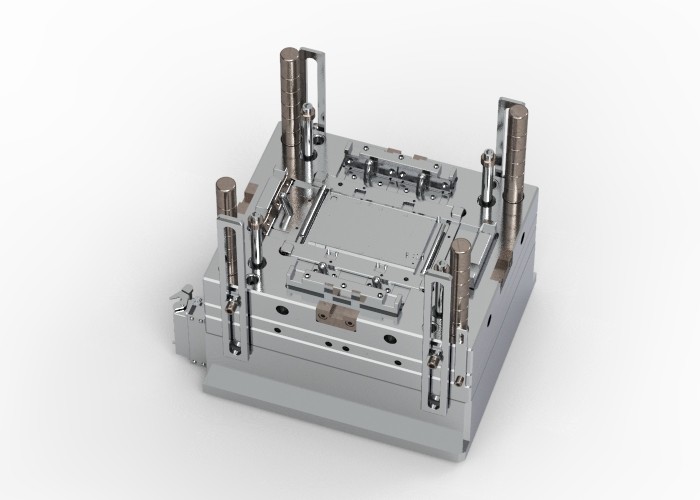

This mold was developed by Chitwing (designed and manufactuered). With 4 slides and 27 lifters,
short cycle time, free of cold slug, mold good fitted with 500K shots tool life.
The mold is made from steel > 40HRC, with good anti-wearing and anti-dent performance.

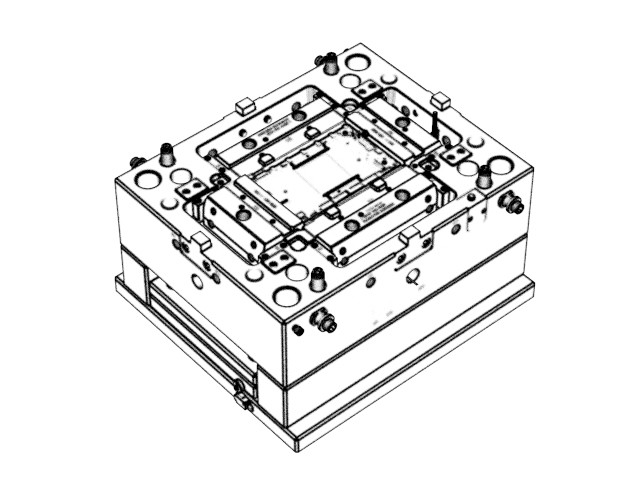

Display diagram
