OEM / ODM ： Hot Runner Injection Molding & Smart Doorbell Cover (1*2) No.23679
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Smart Doorbell |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 400 X 400 X 481 | IMM Tonnage | 110T |
|---|---|---|---|
| Mold Weight | 469KG | Part Net Weight | 1.0g |
| Part Size | 18.94 * 18.94 * 10.45mm | Standard | LKM |
| Type | Three-plates Mold | Slide | 2 |
| High Light | Doorbell Cover Home Appliance Mold,500k Shots Home Appliance Mold,LKM custom plastic mold |
||
Product Description

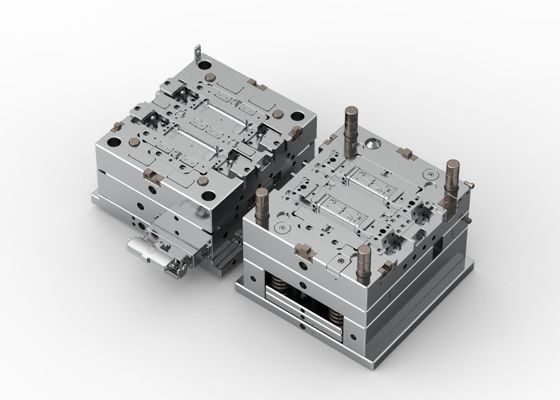

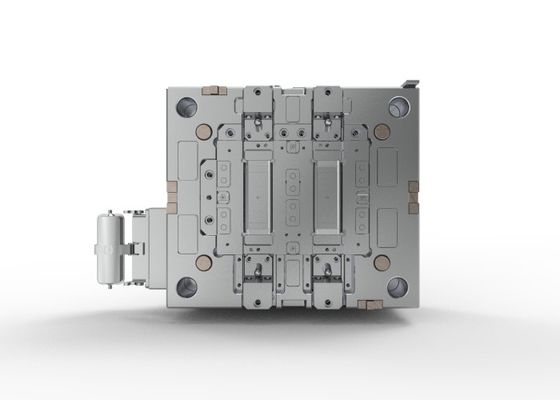

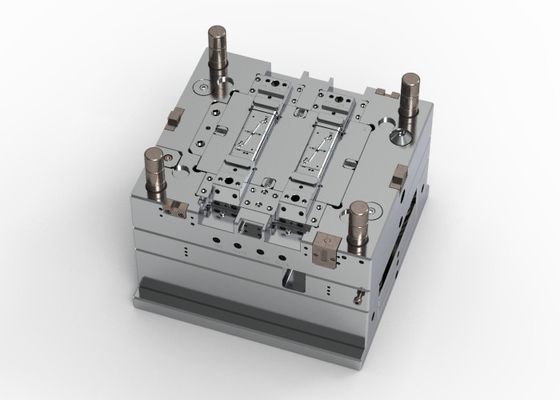

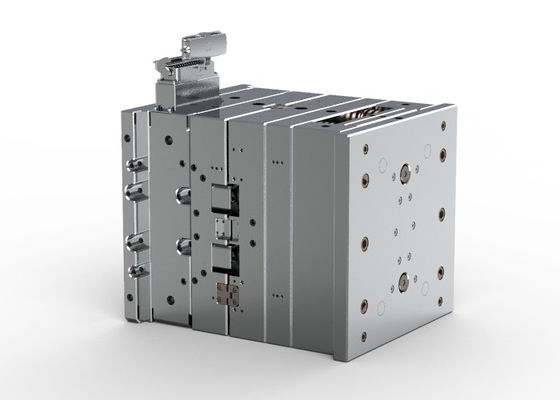

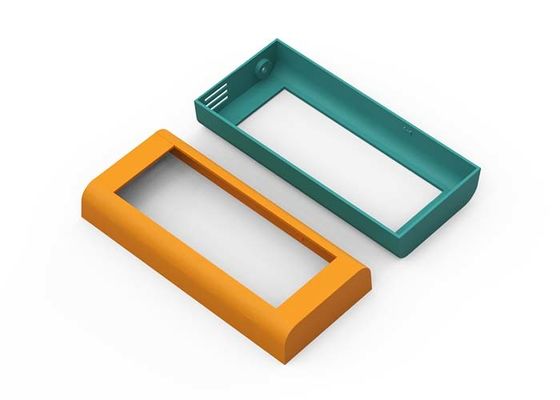

Smart Doorbell Cover (1*2)
No.23679
Custom mold base DI3540.8080100.
| Brand | Chitwing | Length | 400 | Slide | Net weight |
| Type | Three-plates mold | Width | 400 | 2 | 469kg |
| Standard | LKM | Height | 481 |
[IMM tonnage]: 110T
The mold is designed with sub gate (pin point gate turns to side gate); A surface with MT11006
etch, and other surfaces EDM with VDI21#. Harden the cavity and core with 1*2/S136 to have
high hardness and anti-wearing performance; the tool life > 500k shots. The mold good fitted
for accurate processing w/o leakage. The molded part has fine quality; the mold is designed
with hot runner, w/o loss of materials, thereby greatly reducing material cost.
[Features]: 2 slides
[Part net weight]: 1.0g
[Size]: 18.94 * 18.94 * 10.45mm

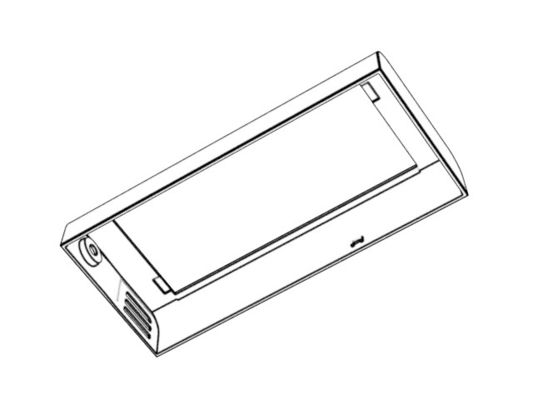

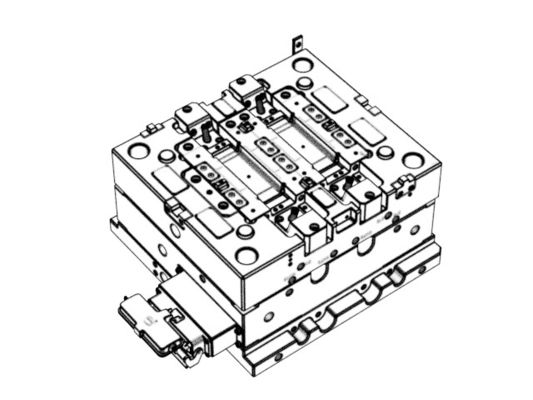

Display diagram
