OEM / ODM ： Hot Runner Injection Molding & Mobile Phone TP Trim (1*1) No.23854
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Mobile Phone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 350.000 X 400.000 X 446.000 | IMM Tonnage | 140T |
|---|---|---|---|
| Mold Weight | 416kg | Slides | 4 |
| Injection Type | Hot Runner | Runner Type | Hot Runner |
| Gate | Direct Gate | Part Net Weight | 5g |
| Part Size | 164.69 X 77.42 X 6.75mm | Standard | LKM |
| Type | Two-plates Mold | ||
| High Light | LKM Plastic Custom Molding,500k Shots Plastic Custom Molding,140T hot runner mold |
||
Product Description
Mobile Phone TP Trim (1*1)
No.23854
[Mold base]: custom mold base CI3040.7010090
| [Size] | 350x400x446mm | [Injection/runner type] | Hot runner | ||||
| [Tool life] | 500K shots |
This is a two-plates mold designed with nano injection molding (effectively reduce the part weight, thickness, reduce the cost and prolong the service life), 4 slides, hot runner, direct gate, fast and uniform mold filling, stable cavity pressure and no loss of material. |
|||||
| [Gate] | Direct gate | ||||||
| [Type] | Two-plates mold | ||||||
| [Standard] | LKM | ||||||
| [Part material] | PBT+GF40% | ||||||
|
[Mold surface]: w/o flow marks and gas marks, fine surface with clear details |
|||||
|
[Steel of cavity and core]: performance, and the tool life is up to 500k shots |
|||||
The mold net weight is 416kg, fits 140T machine. The part material is PBT+GF40%, the part
size is 164.69 X 77.42 X 6.75mm, and the part net weight is only 5g.

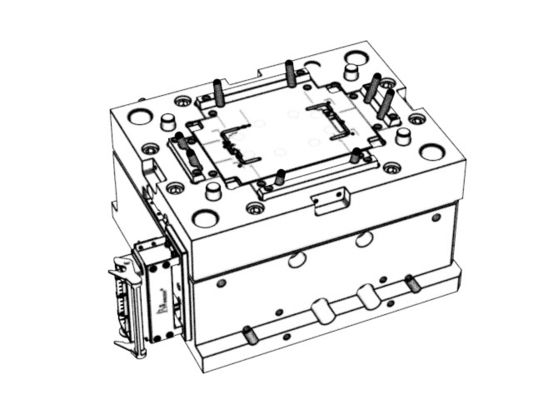

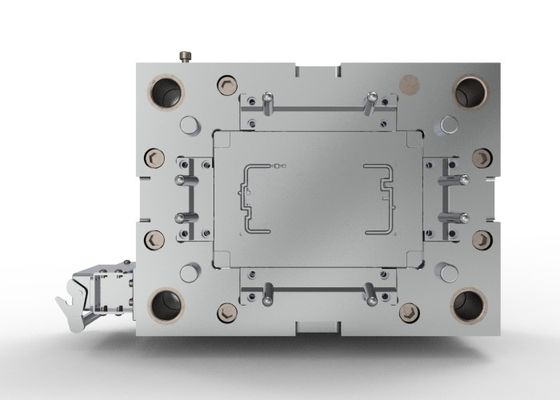

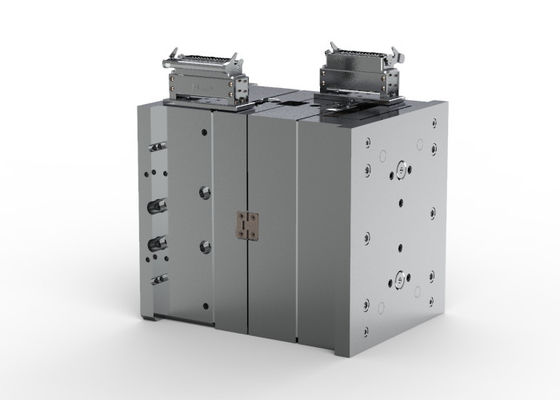

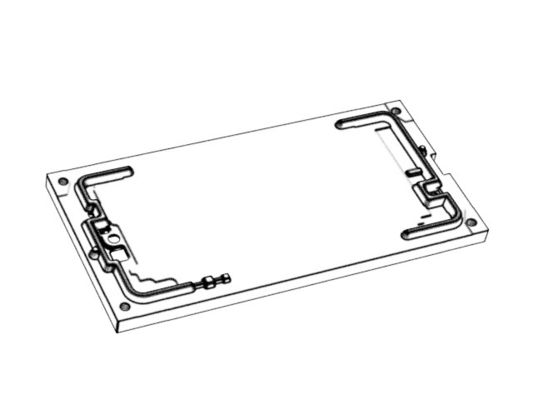

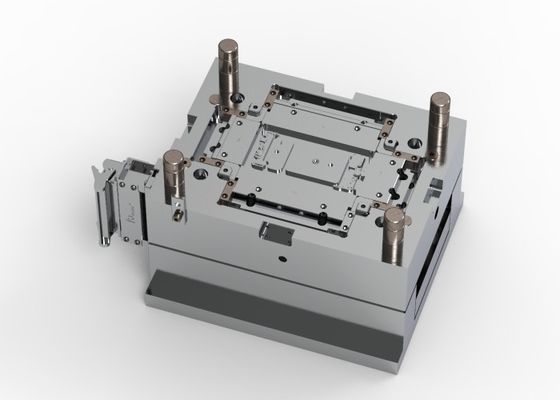

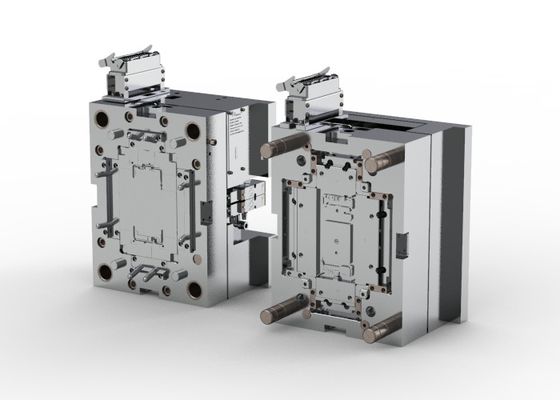

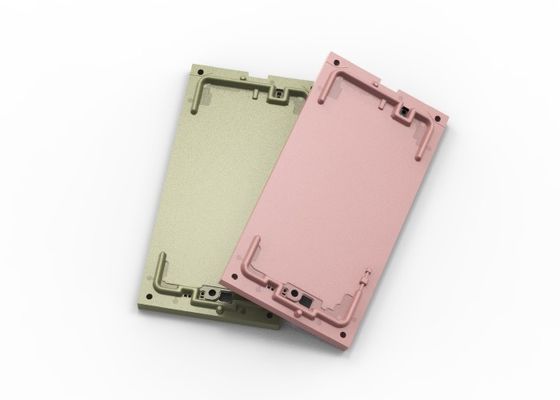

Display diagram
