OEM / ODM ： Hot Runner Injection Molding & On-board Rear Housing (1*2) No.23909
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | In-Car Products |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 450.000 X 550.000 X 559.000 | IMM Tonnage | 220T |
|---|---|---|---|
| Mold Weight | 871kg | Standard | LKM |
| Type | Three-plates Mold | Slide | 2 |
| Lifter | 13 | Surface Finish | VDI24#/SPI-A2 |
| High Light | Hot Runner Injection Molding 500k Shots,871kg Hot Runner Injection Molding,500k Shots OEM Injection Mold |
||
Product Description

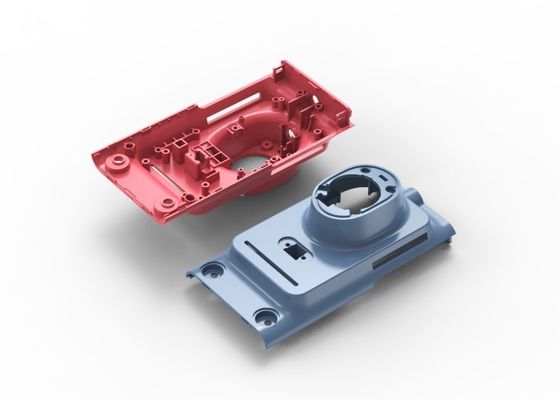

In Car Rear Housing (1*2)
No.23909

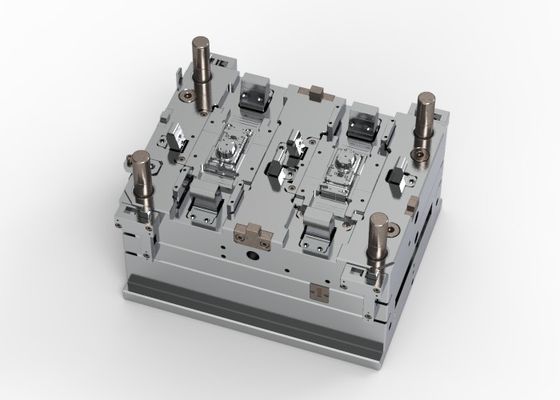

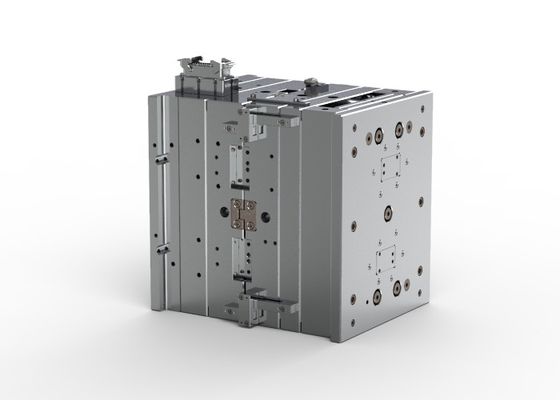

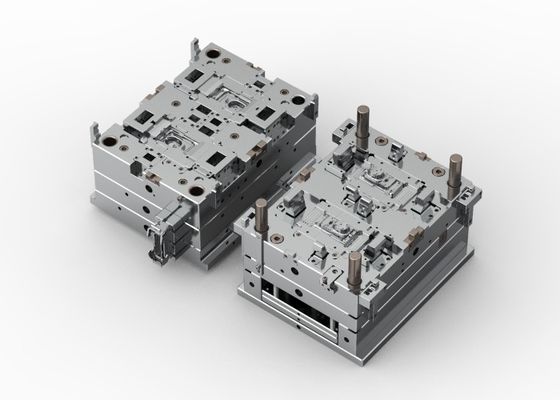

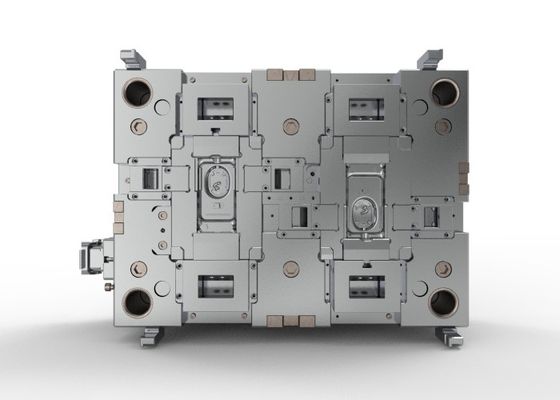

| Mold base P/N: DI4055 110100100 | [Standard] - LKM | ||||
| Size: | |||||
| Length | 450 | Width | 550 | Height | 559 |
| Slide | Lifter | Mold net weight | IMM Tonnage |
| 4 | 13 | 871kg | 220T |
This tooling with hot sprue + 3 plates pin point gate + side gate.
Easy for tool build and W/O cold sprue (cost effective by saving material)
|
[Surface finish] ① A surface laser with VDI24# |
|||||
| Part outter surface polished, low glossiness and free of sand paper mark, and touch-friendly. | |||||
| [Steel of cavity & core]: Harden (1*2/S136) | |||||
|
Harden steel for cavity and core, good hardness, anti-wearing, anti-corrosion, mass production tool life 500k shots. |
|||||
| Overall size: | Net weight | Part size | ||||
| Length | 115.95 | |||||
| Width | 60.93 | 19.95g | 115.95x60.93x37.15mm | |||
| Height | 37.15 | |||||

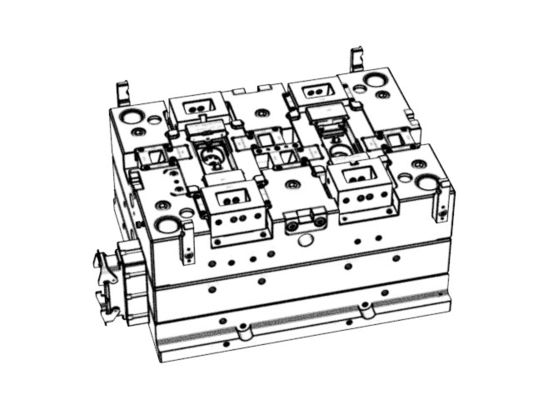

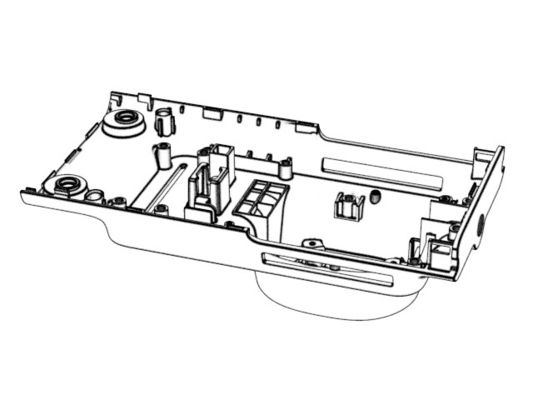

Display diagram
