OEM / ODM ： Hot Runner Injection Molding & On-board Foot Rest (1*2) No.23914
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | In-Car Products |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 450.000 X 650.000 X 548 | IMM Tonnage | 130T |
|---|---|---|---|
| Mold Weight | 1075kg | Slide | 3 |
| Lifter | 3 | Type | Two-plates Mold |
| Standard | LKM | Gate | Spure Gate |
| High Light | 130T Hot Runner Injection Molding,Spure gate Hot Runner Injection Molding,500k Shots injection mould plastic |
||
Product Description
On-board Foot Rest (1*2)
No.23914
> Mold base P/N: CI4065A85B130C110
| Brand | Standard | Length Width Height | Net weight | ||
| Chitwing | LKM | 450x650x548 | 1075kg | ||
| Type: Two-plates mold |
Injection/runner type: Hot runner |
Slide | IMM Tonnage | ||
| 3 | |||||
| Lifter | 130T | ||||
| 3 | |||||
Part material: PA+50% GF

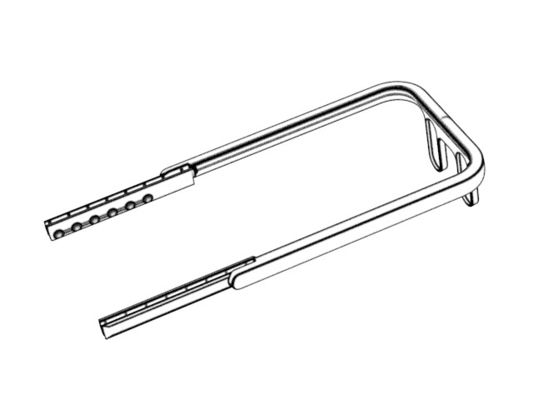

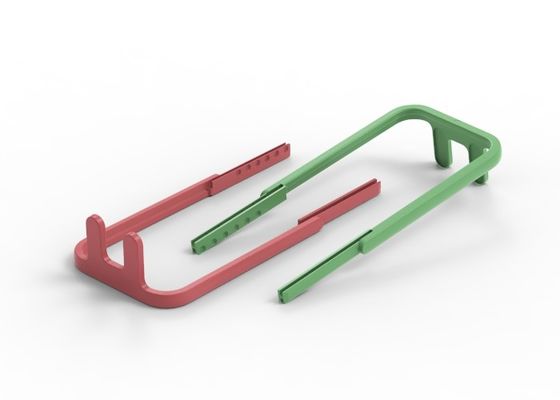

Part size 61.00 X 130.95 X 28.34mm, weight 7.75g
Gate: Spure gate
This mold with ①A surface EDM to Charmilles VDI24# ② Internal surface polished to SPI-B1,
so that the mold surface has a good glossiness, roughness and slight sandpaper marks. the molded
part has a skin-friendly surface. The cavity and core are harden (1*2/S136) with high hardness,
anit-corrosion, anti-wearing.
Mold with hot runner, no runner material loss, short cycle time, good molding performance and cost,
long tool life.

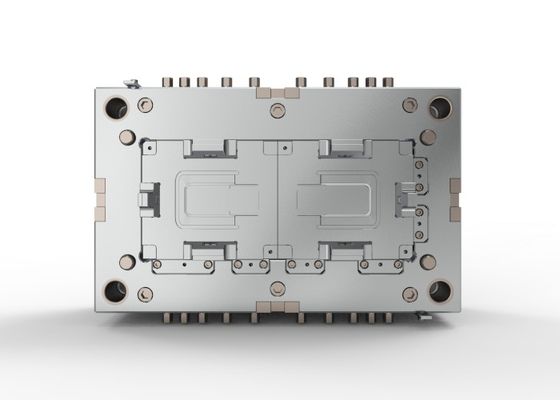

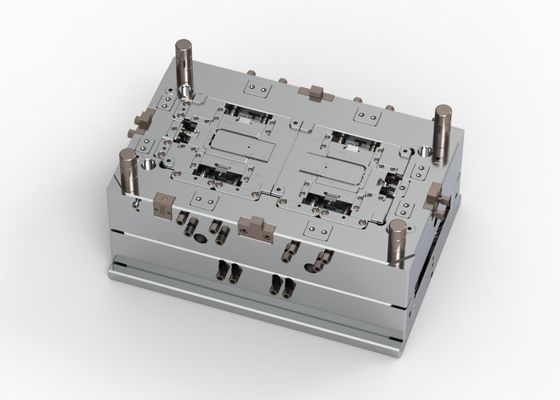

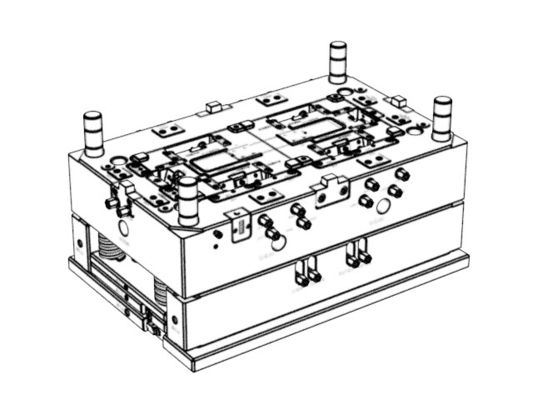

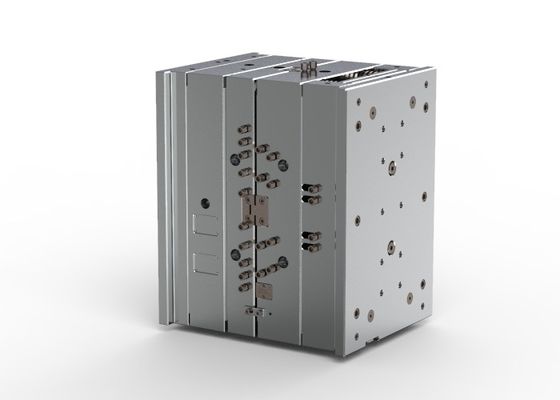

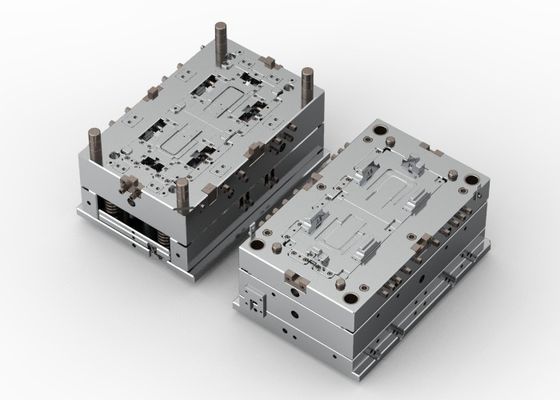

Display diagram
