OEM / ODM ： Hot Runner Injection Molding & Crystal Right Belt (1*2) No.23187
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | VR Products |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 550 X 650 X 551 | IMM Tonnage | 280T |
|---|---|---|---|
| Mold Weight | 1188kg | Design Software | 3D:UG 4.0, 2D:CAD |
| Runner | Cold Runner | Mould Life | ≥500000 Shots |
| Mould Base | LKM | ||
| High Light | Crystal Belt High Precision Mold,500k Shots High Precision Mold,LKM High Precision Mold |
||
Product Description

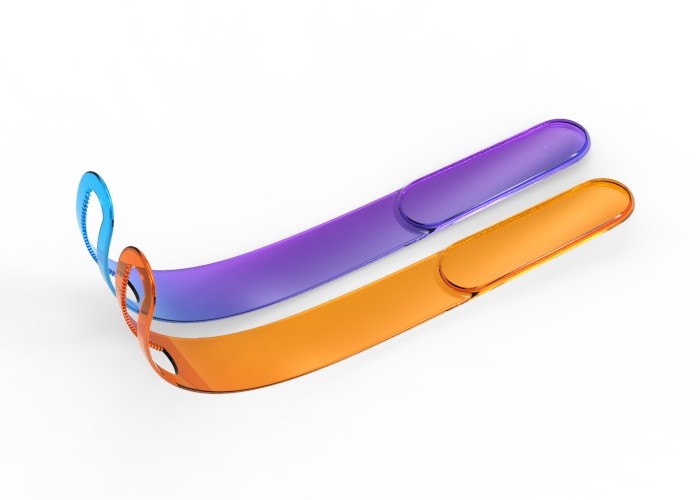

Crystal Right Belt (1*2)
No.23187

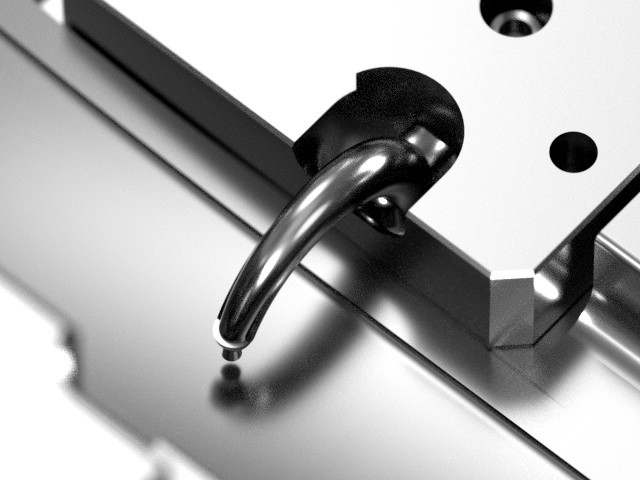

The mold is designed with cold runner and cashew gate, with a size of 550 X 650 X 551mm;
other surfaces with MT11010 etch; harden cavity and core (1*2/S136)
| Standard | LKM | Slide | Lifter | ||
| Surface finish | Partial surfaces with MT11010 etch | 1 | 5 | ||
The surface is hardened to have a hardness > 600HV, with smooth molding actions.
The mold net weight is 1188kg, the IMM tonnage is 280T, the part net weight is 25.5g,

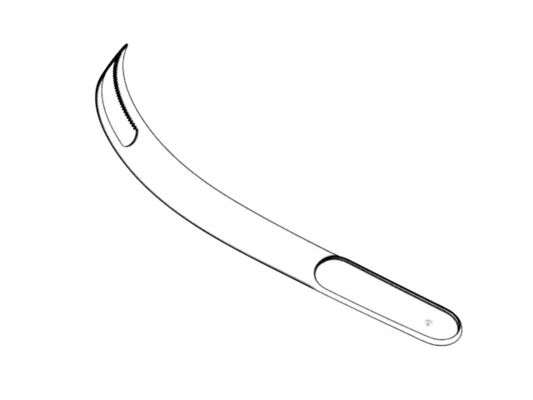

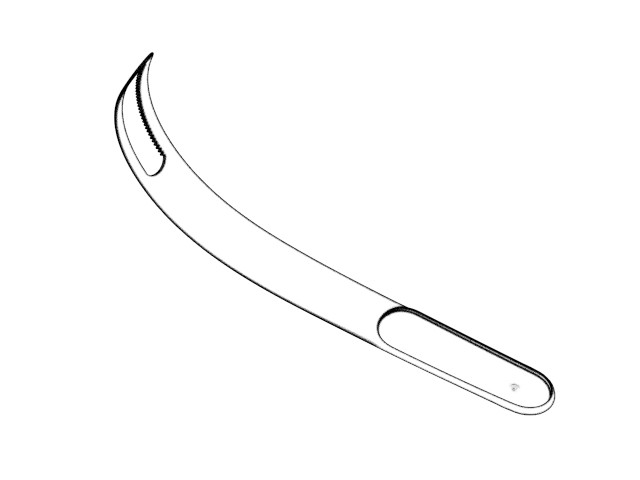

and the part size is 31 X 344 X 6.35 mm.

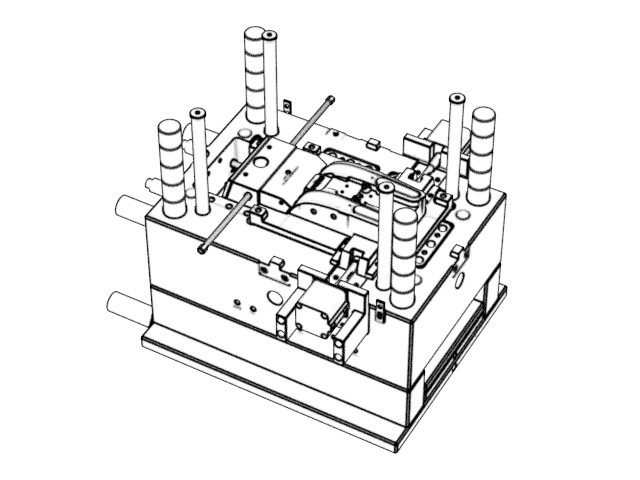

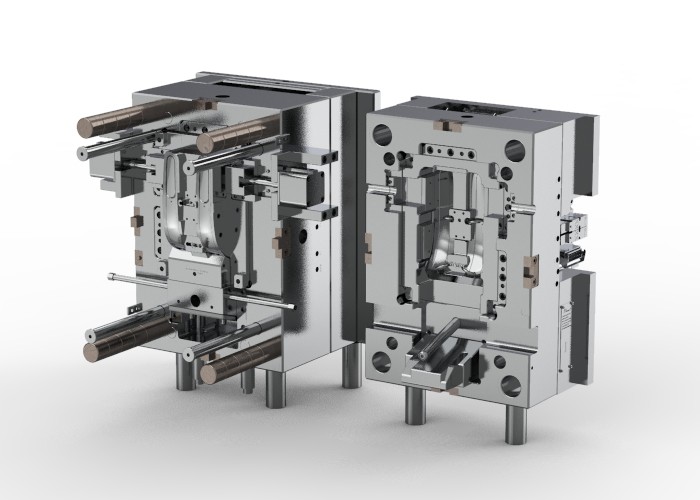

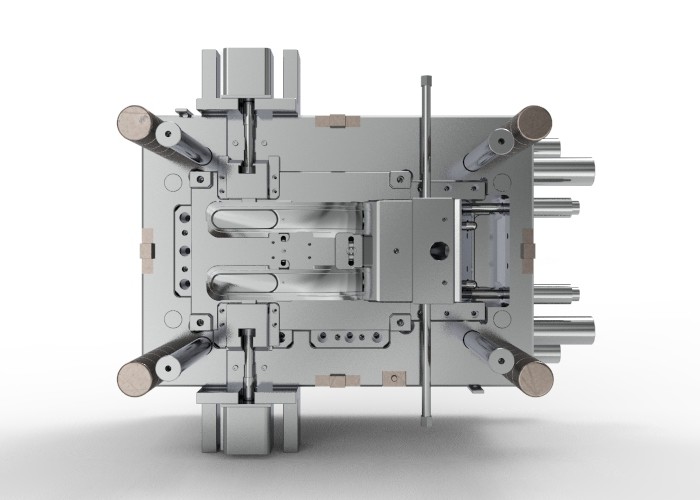

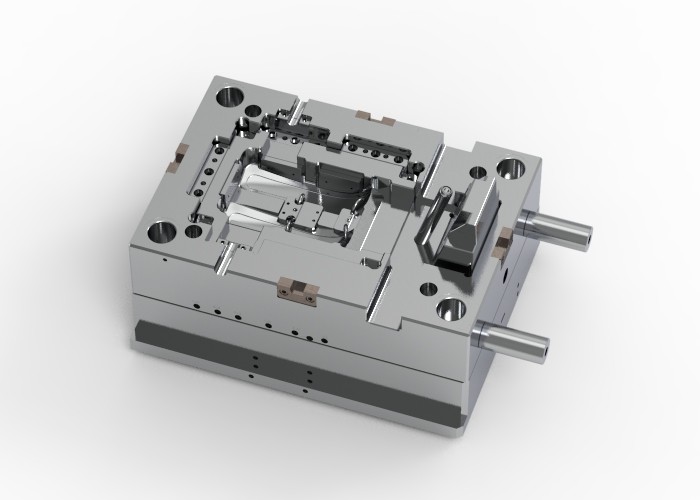

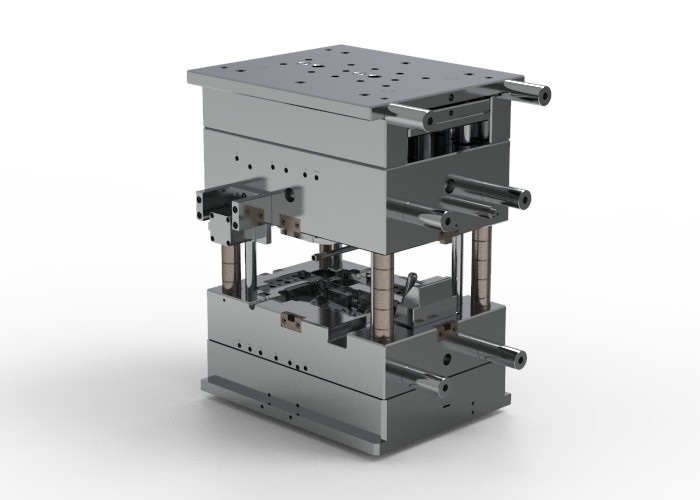

Display diagram
