OEM / ODM ： Hot Runner Injection Molding & Transparent Tablet Battery Cover (1*1) No.23605
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Tablets |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size(mm) | 450 X 500 X 566 | Gate | Pin Point Gate + Side Gate |
|---|---|---|---|
| Mold Weight | 600kg | Standard | LKM |
| Injection/runner Type | Hot Runner | Design Software | (3D)UG 4.0/ (2D）CAD |
| Mould Life | 500，000 Shots | ||
| High Light | 600kg Hot Runner Injection Molding,Tablets Hot Runner Injection Molding,500k Shots injection molded parts |
||
Product Description
Transparent Tablet Battery Cover (1*1)
No.23605
Brand: Chitwing
Origin: Guangdong, China
Mold base: Custom
Surface finish: A surface polished to 800# sandpaper, inner surface EDM with VDI21#,
and surface hardened > 600HV
| ☆ Mold size: 450 X 500 X 566mm (net weight 600kg) | ||

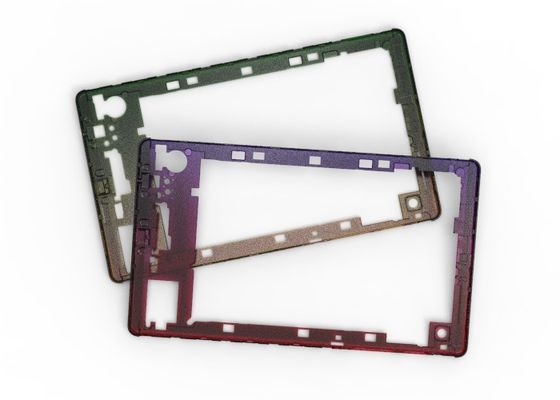

| ☆ Part size: 212.45 x124.68 x7.58mm (net weight 12g) |
| Gate | Pin point gate + side gate |
| Type | Three-plates mold |
| Tool life | 500k shots |
| Standard | LKM |
| Steel of cavity & core | Harden (1*1/S136) |
| Injection/runner type | Hot runner |
2x hot runner valve gate turn to cold runner pin point gates;
with 4 slides and 27 lifters, good strength, smooth molding, short cycle time,
no material loss of runner

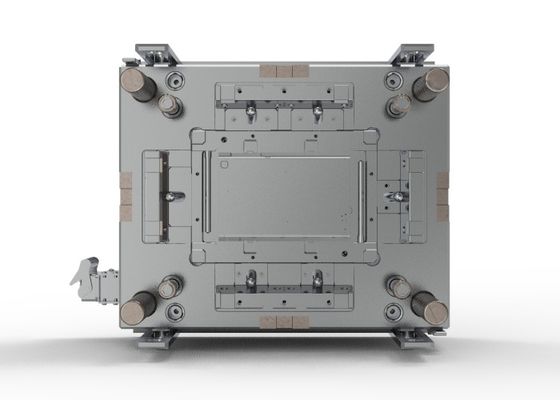

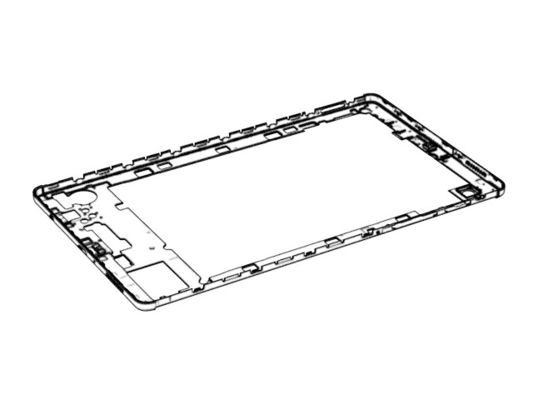

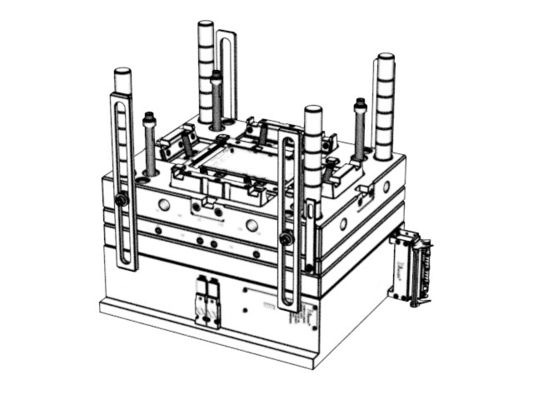

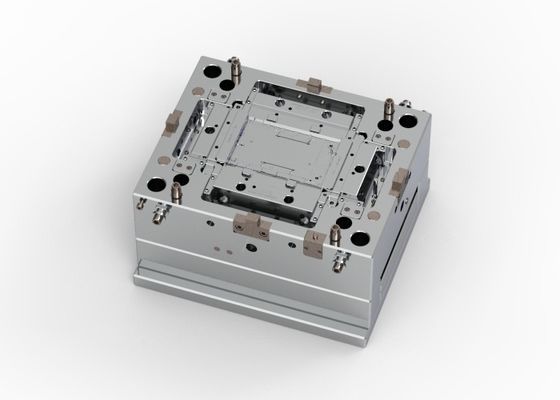

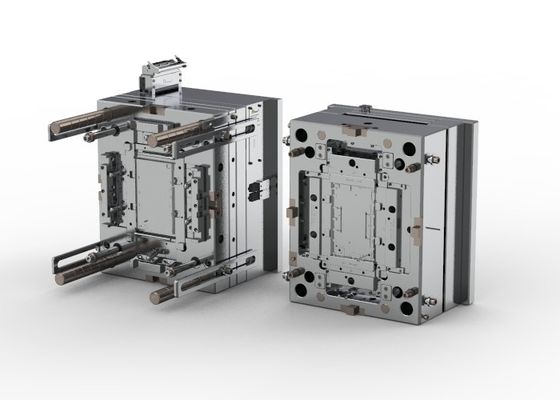

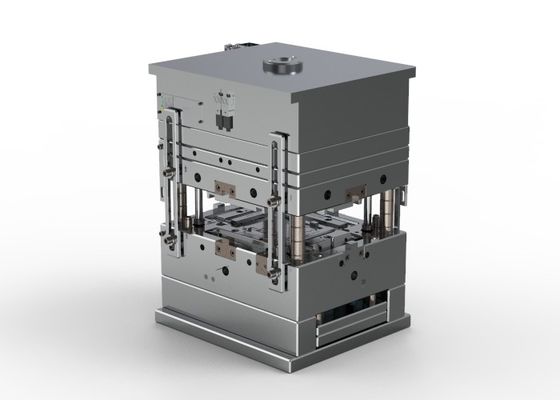

Display diagram
