OEM / ODM ： Hot Runner Injection Molding & Transparent Smart Doorbell Upper Shell (1*2) No.23673
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Smart Doorbell |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | 4 Slides And 6 Lifters | Size | 400 X 550 X 490 |
|---|---|---|---|
| IMM Tonnage | 140T | Mold Weight | 640KG |
| Standard | LKM | Injection/runner Type | Hot Runner |
| Steel Of Cavity | Harden (1*2/S136) | Steel Of Core | Harden (1*2/S136) |
| High Light | 640KG Hot Runner Injection Mold,140T Hot Runner Injection Mold,LKM 2 plate injection mold |
||
Product Description

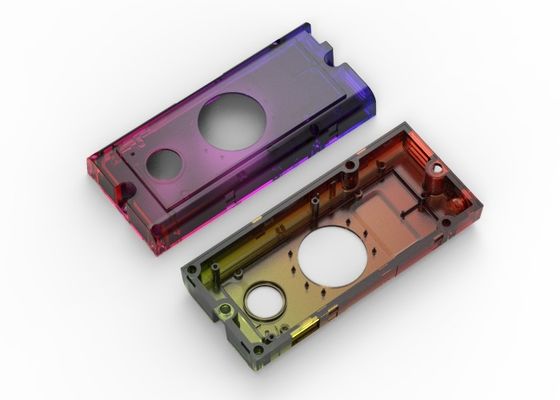

Transparent Smart
Doorbell Upper Shell (1*2)
No.23673
| Standard mold base P/N: CI3555.8012090. | |||||
| Standard | Net weight | Length | 400 | Slide | Lifter |
| LKM | 640kg | Width | 550 | 4 | 6 |
| Height | 490 | ||||
|
Surface finish |
1. A surface polished to SPI-A2 | ||
| 2. Secondary surface with MT11006 etch | |||
| 3. Sealing surface polished to SPI-A3 | |||
| 4. Other surfaces EDM with VDI21# | |||
| Injection/runner type | |
| Hot runner | |
| Steel of cavity | Steel of core | ||
| Harden (1*2/S136) |
Harden (1*2/S136) |
IMM tonnage: 140T
Size: 43.57 X 98.47 X 15.10mm
Part weight: 15g
| Gate | Pin point gate (with subsequent CNC machining) | ||
| The mold was developed by Chitwing, with precision design to meet in line the low cost and high quality requirements; short cycle time, no loss of material, greatly reducing the material cost; the molded part has clear edges and angles w/o flash; the mold good fitted, with tool life up to 500k shots | ||||||||

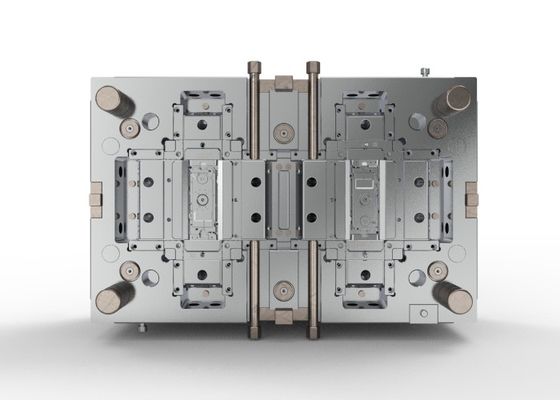

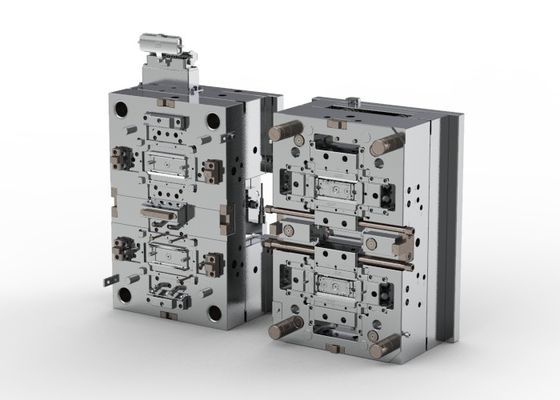

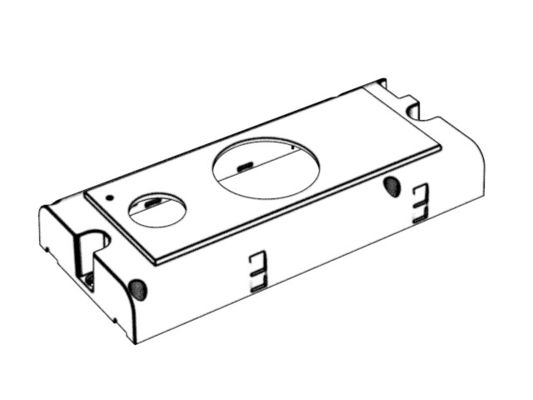

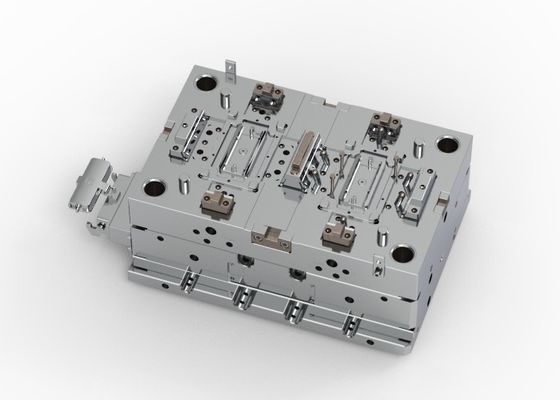

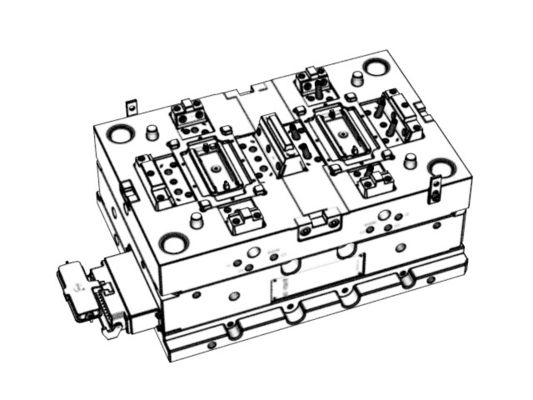

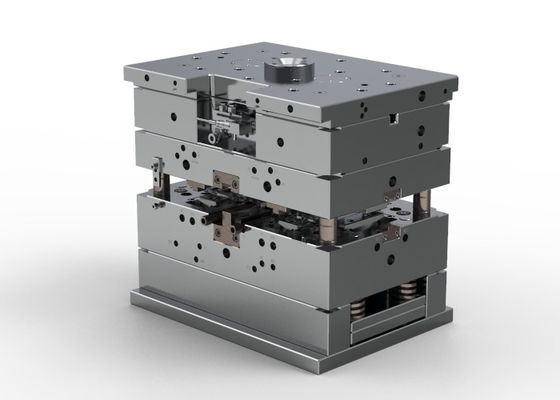

Display diagram
