OEM / ODM ： Hot Runner Injection Molding & Transparent Smart Doorbell Cover (1*2) No.23679
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Smart Doorbell |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 400 X 400 X 481 | IMM Tonnage | 110T |
|---|---|---|---|
| Mold Weight | 469KG | Design Software | <3D:UG 4.0>/ <2D:CAD> |
| Runner | Hot Runner | Mould Base | LKM |
| High Light | Three Plate Hot Runner Injection Molding,110T Hot Runner Injection Molding,3 plate injection mold |
||
Product Description

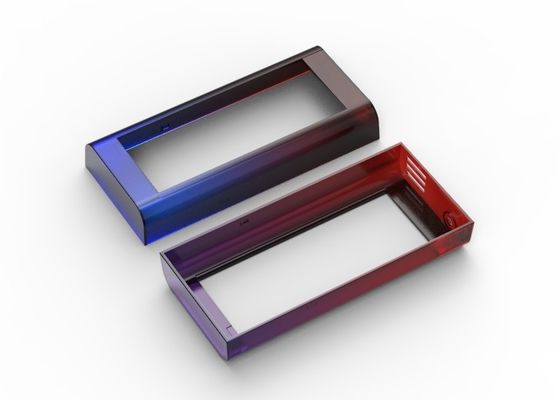

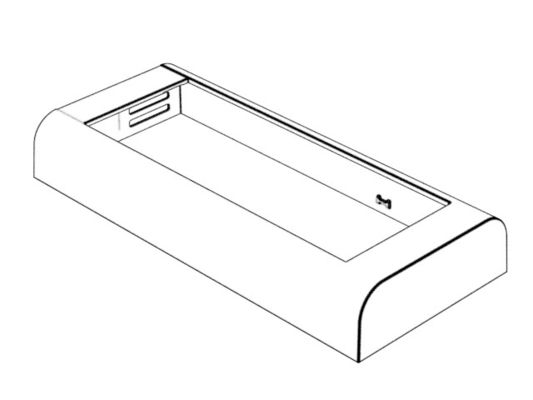

Transparent Smart Doorbell Cover (1*2)
No.23679
| Surface finish | |||
| A surface with MT11006 etch | Other surfaces EDM with VDI21# | ||
| Steel of cavity | Steel of core | ||
| Harden (1*2/S136) | Harden (1*2/S136) | ||
| This is a three-plates mold developed by Chitwing. Harden the surface to have higher hardness and anti-wearing performance. The hot runner design minimized loss of material, saving materials and increasing the tool life. The appearance is more concise and aesthetic, with reasonable wiring and easy maintenance. | ||||||
| Standard |
Gate |
Tool life | Slide | ||
| LKM | Sub gate (the pin point gate turns to the side gate) | 500k shots | 2 | ||
[Mold Net Weight]: 469 kg
[Mold size]: 400 X 400 X 481mm
[Size]: 18.94 * 18.94 * 10.45mm
[Part net weight]: 1.0g

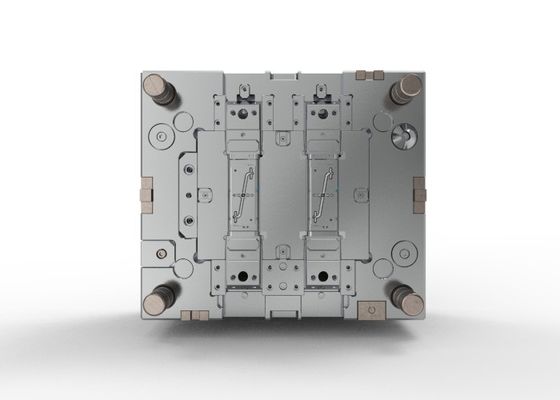

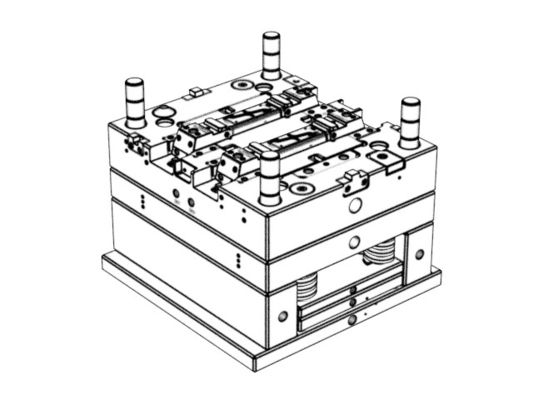

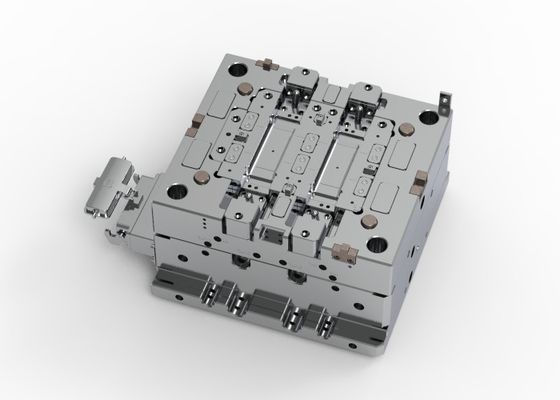

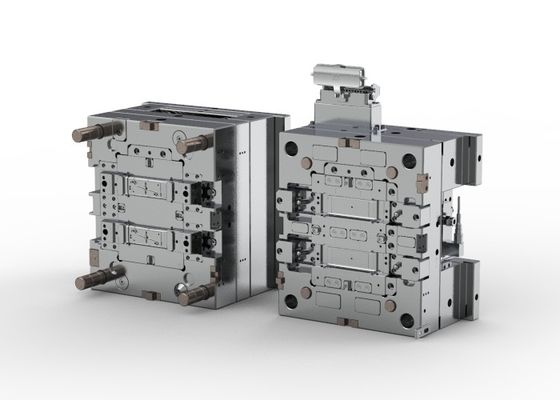

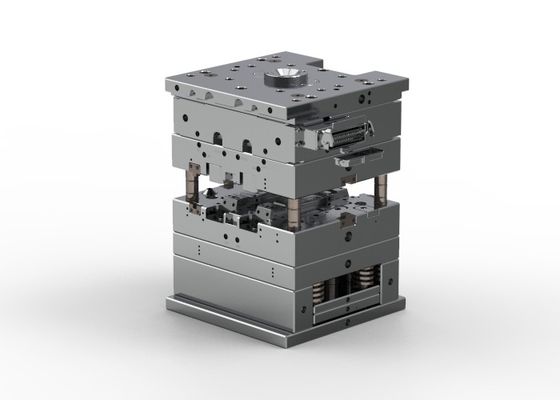

Display diagram
