OEM / ODM ： Hot Runner Injection Molding & Transparent phone TP trim (1*1) No.23854
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Mobile Phone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | 4 Slides | Size | 350.000 X 400.000 X 446.000 |
|---|---|---|---|
| IMM Tonnage | 140T | Mold Weight | 416kg |
| Design Software | 3D:UG 4.0, 2D:CAD | Runner | Hot Runner |
| Type | Two-plates Mold | Tool Life | 500k Shots |
| [Injection/runner Type | 7 | Gate | Direct Gate |
| Part Material | PBT+GF40% | ||
| High Light | Phone Frame Multi Cavity Injection Moulding,LKM Multi Cavity Injection Moulding,500k Shots Hot runner Injection Moulding |
||
Product Description
Transparent phone TP trim (1*1)
No.23854
[Mold base]: custom mold base CI3040.7010090
This is a two-plates mold developed (designed and manufactured) by Chitwing according
to the user needs and macro market economy. It adopts nano-injection molding technology,
hot runner design; w/o loss of material, high precision, easy operation and short cycle time;
auto filling, injection and demolding, greatly reducing material and labor costs; molded parts
with precise thread.
| [Size]: 350x400x446mm [Tool life]: 500k shots [Type]: Two-plates mold [Standard]: LKM |
4 slides | ||||
| Nano injection molding | |||||
| [Part material] | PBT+GF40% | ||||
☆ [Mold surface]:
① A surface polished to 1000# sandpaper
② Secondary surface EDM with VDI21# (Makino)
☆ [Steel of cavity and core]: Harden with 1*1/S136
| [Injection/runner type] | Hot runner | ||
| [Gate] | Direct gate |
| ☆ [Net weight]: 416 kg ☆ [IMM tonnage]: 140T |
☆ [Part net weight]: 5g ☆ [Part size]: 164.69 X 77.42 X 6.75mm |

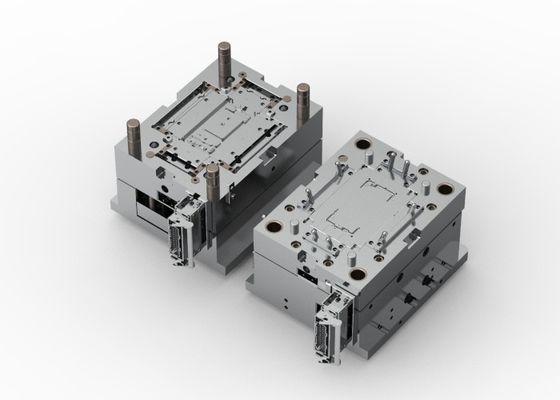

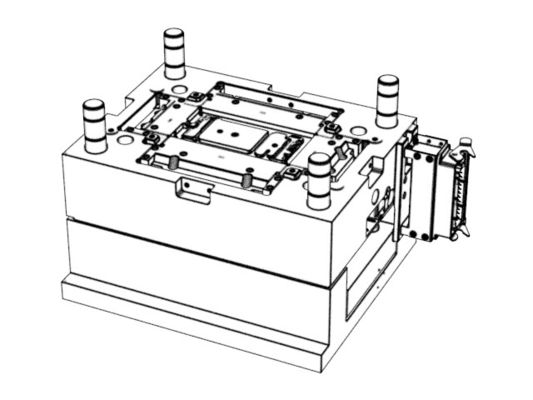

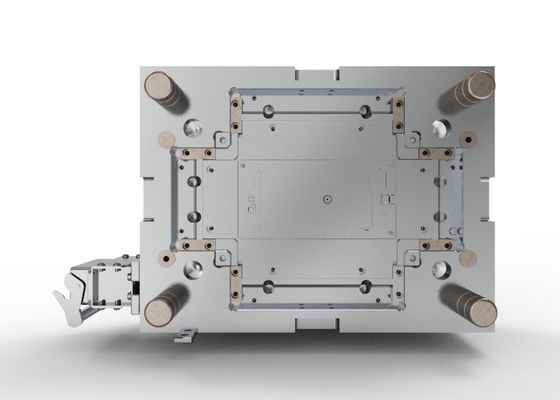

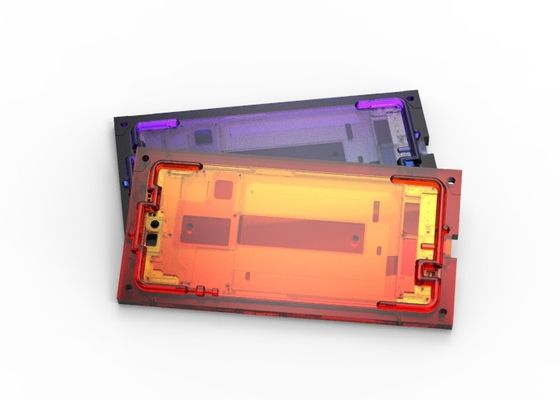

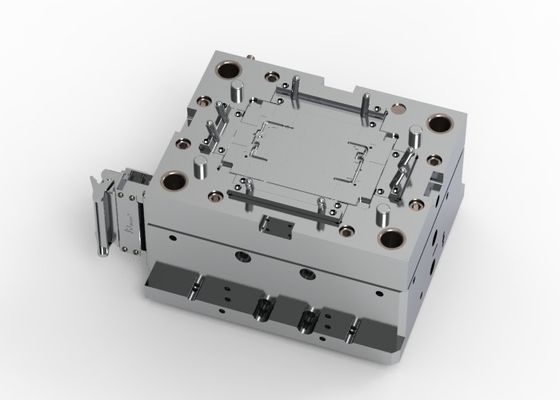

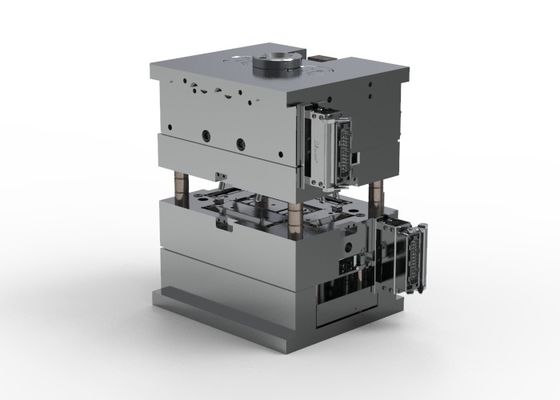

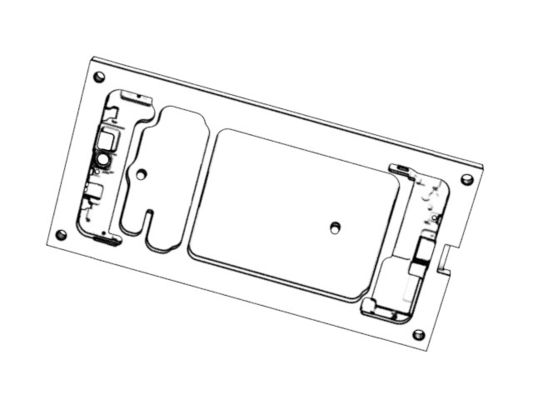

Display diagram
