OEM / ODM ：Custom Consumer Electronics Molds / Transparent Three-proof Phone Upper Bottom Housing (1*4) No.23690
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Mobile Phone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 400.000 X 400.000 X 360.400 | IMM Tonnage | 110T |
|---|---|---|---|
| Mold Weight | 366.5kg | Injection Type | Cold Runner |
| Runner Type | Cold Runner | Gate | Pin Point Gate |
| Tool Life | 500000 Shots | Standard | LKM |
| Part Material | PC | Mold Type | Custom Electronic Enclosures |
| High Light | 500k Shots Direct Injection Molding,LKM Direct Injection Molding,110T Direct Injection Molding |
||
Product Description
Transparent Three-proof
Phone Upper Bottom Housing (1*4)
No.23690
| ★ Mold base :P/N: FCI3540 6010090 | |||||
| ★ Mold size | |||||
| L: 400 | W: 400 | H: 360.4 | |||
| ★ Mold weight | |||||
| 366.5kg | |||||
| ★ IMM Tonnage | |||||
| 110T | |||||
|
★ Gate - This is a pin point gate, with flexibility in position. Self-degating and with minimized gate mark. |
|||||
|
★ Tool life - Through harden and polished cavity/core, this tool have long tool life (≥ 500k shots) |
|||||
|
The mold complies with Chinese general injection mold standard LKM |

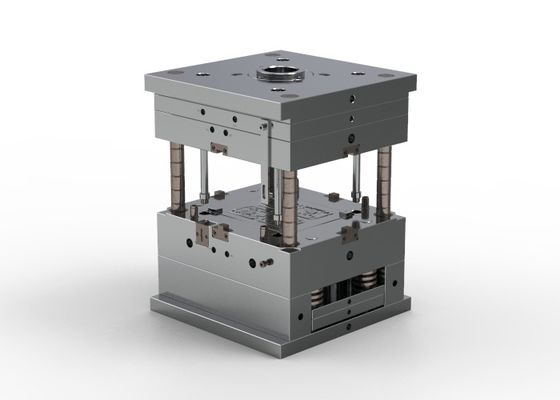

This is a three-plate mold, easy fillling and self-degating.Part have clear surface texture, with short cycle time. |
||||
| ★ Part material - PC | |||||
|
This is a cold runner mold, low tool cost and easier to maintain. Secondary cosmetic surfaces EDM with VDI30#, molded part has a smooth surface and is easier to demould. anti-wear and anti-corrosion ability, with longer tool life,meet the demands of mass production. |
|||||
| ★ Part weight - 3.7g | |||||

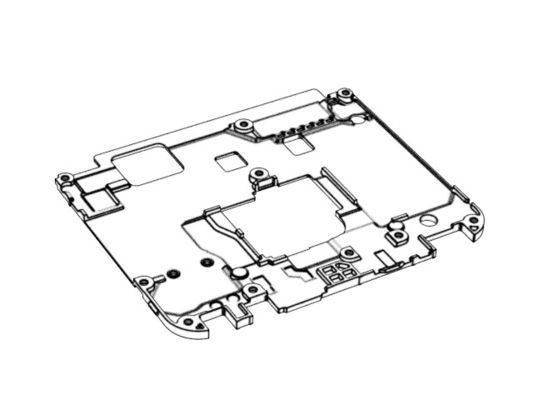

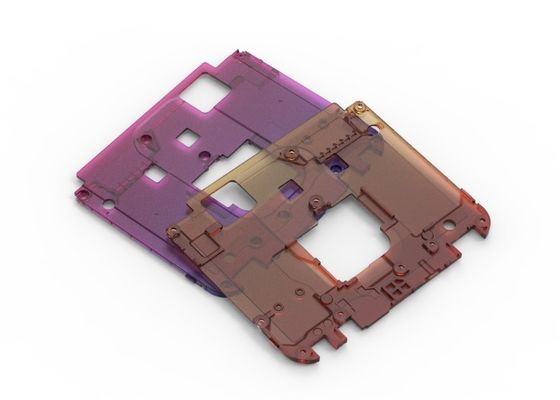

| ★ Part size - 67.6X 57.8 X2.58mm | |||||
| ★ Features - 4 x slides and 6 x lifters | |||||

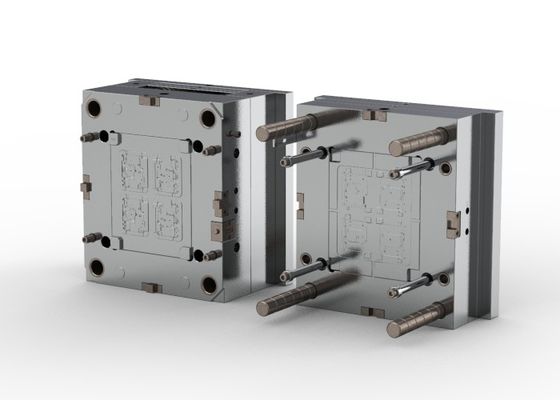

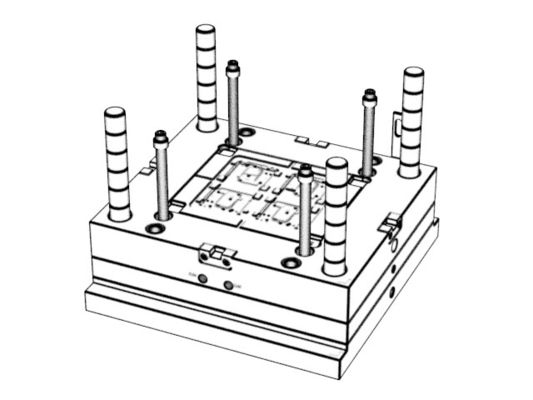

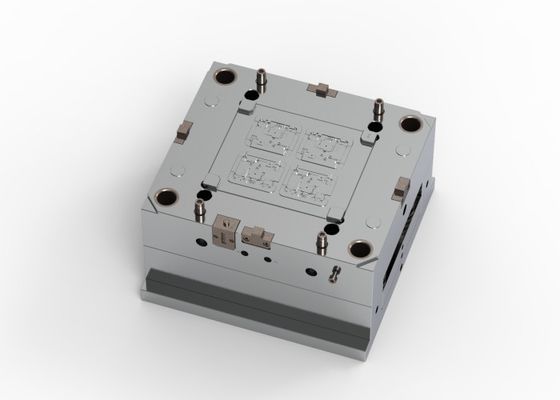

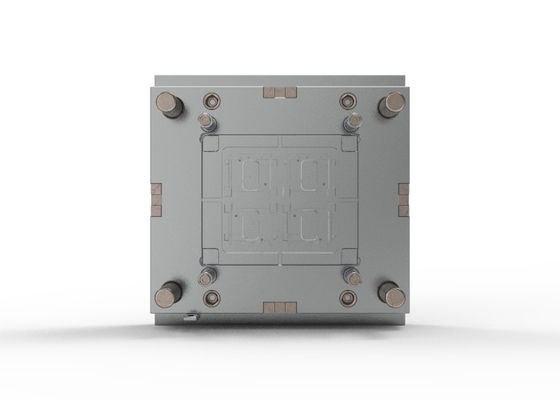

Display diagram
