Transparent key (1*8)/ Cold runner / Two-plates mold No.19017-B

  • Transparent key (1*8)/ Cold runner / Two-plates mold No.19017-B
  • Transparent key (1*8)/ Cold runner / Two-plates mold No.19017-B
  • Transparent key (1*8)/ Cold runner / Two-plates mold No.19017-B
  • Transparent key (1*8)/ Cold runner / Two-plates mold No.19017-B
  • Transparent key (1*8)/ Cold runner / Two-plates mold No.19017-B
  • Transparent key (1*8)/ Cold runner / Two-plates mold No.19017-B
  • Transparent key (1*8)/ Cold runner / Two-plates mold No.19017-B
  • Transparent key (1*8)/ Cold runner / Two-plates mold No.19017-B
Place of Origin China
Brand Name Chitwing
Certification ISO 9001:2015
Model Number Overear Headphone
Minimum Order Quantity 1set
Price Negotiable
Packaging Details The mold is packaged with a wooden box and placed on a wood pallet.
Delivery Time 30 day(s)
Payment Terms L/C, T/T
Supply Ability 200 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Size 300.000 X 300.000 X 291.000 IMM Tonnage 110T
Mold Weight 155KG Runner Cold Runner
Mould Life ≥500000 Shots Mould Base LKM
Design Software 3D:UG 4.0, 2D:CAD Gate Side Gate
High Light

LKM Base Two Plate Mold

,

500000 Shots Two Plate Mold

,

Transparent Cold Runner Injection Molding
Leave a Message
Product Description

Transparent key (1*8)

No.19017-B



The Chitwing two-plates mold, incorporating an LKM mold base, delivers outstanding

performance and longevity. Designed with a side gate to ensure optimal material flow,

this mold boasts a lifespan of at least 500,000 shots for extended service life. Its compact

and user-friendly design features a net weight of 155 kg and dimensions of 300mm in

length, 300mm in width, and 291mm in height. Customized for a 110T injection molding

machine (IMM)

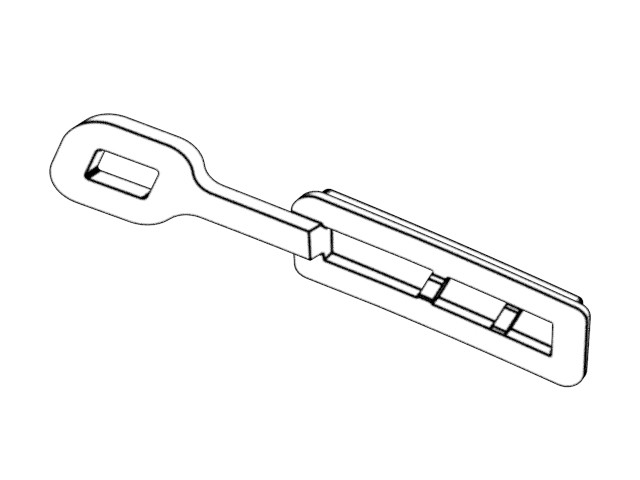

Transparent key (1*8)/ Cold runner / Two-plates mold No.19017-B 0



  Part material   Part size
  PC   Length   3.92
  Part weight   Width   20.7
  0.1g   Height   11.42



Considering the cost-effective performance, the two-plates mold has simple design to reduce

the R & D, design and manufacturing costs.

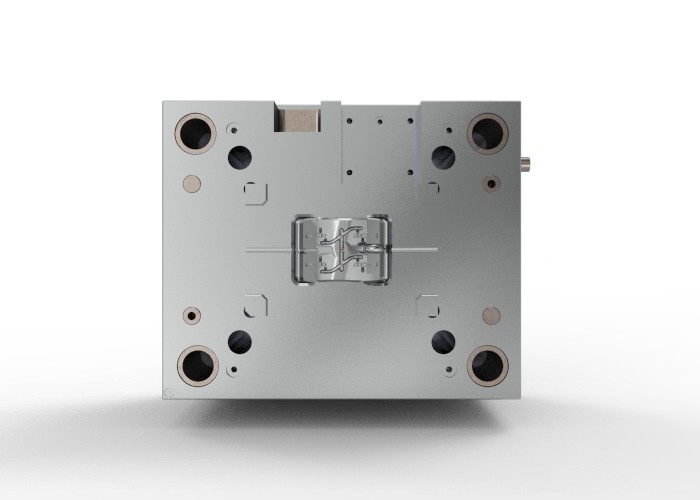

Transparent key (1*8)/ Cold runner / Two-plates mold No.19017-B 1



  Surface finish   Steel of cavity and core
  EDM with VDI 10#   Harden with 1*8/S136



By polishing and hardening the mold, significant improvements are achieved in surface

smoothness, hardness, strength, wear resistance, and corrosion resistance, extending the

tool life to 500,000 shots. With stable cavity pressure, the molten PC adheres well to the

inner surface, ensuring that the molded parts have a smooth and precise surface without

flow marks or gas marks, minimizing material loss.

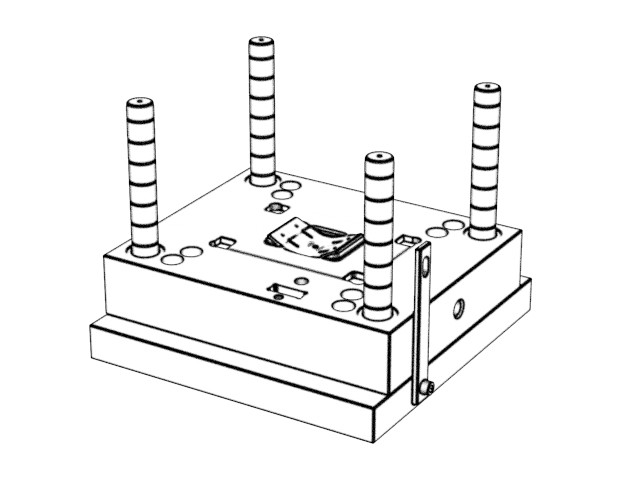

Transparent key (1*8)/ Cold runner / Two-plates mold No.19017-B 2

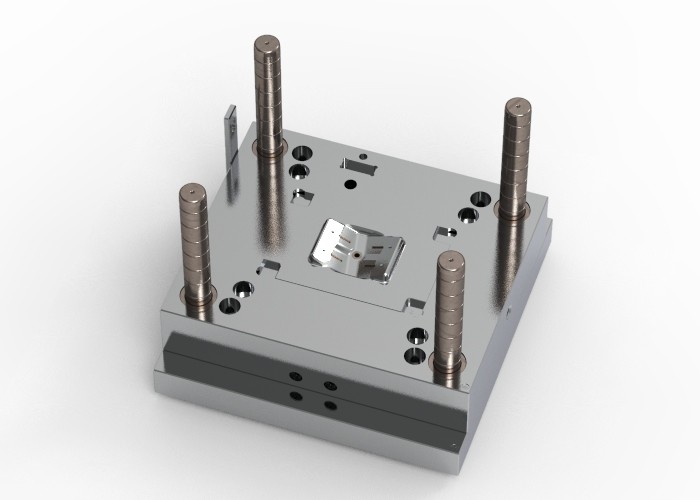

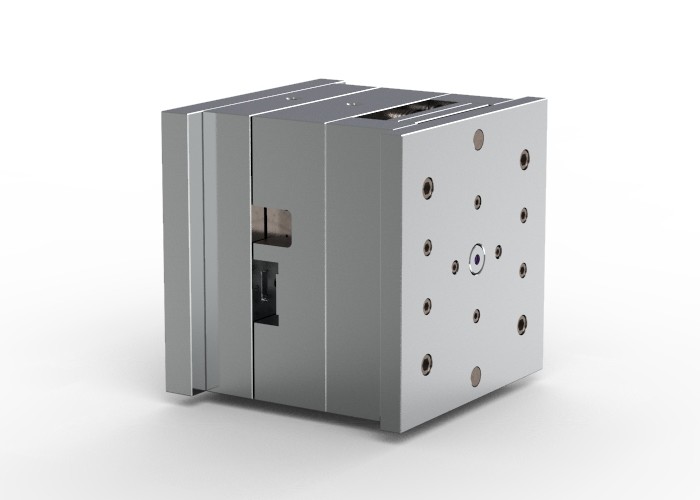

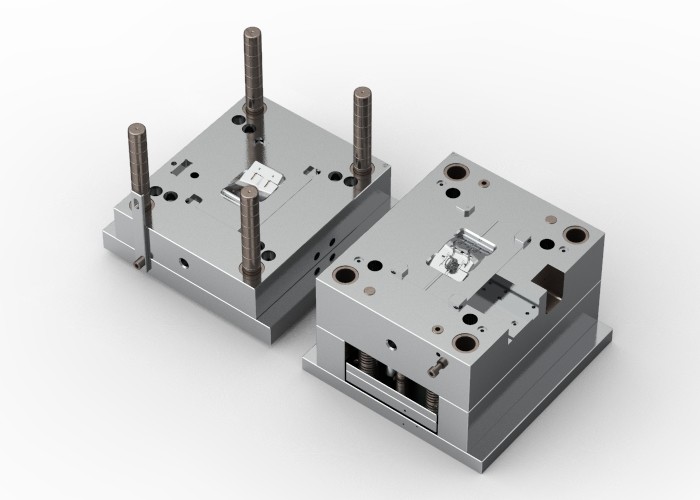

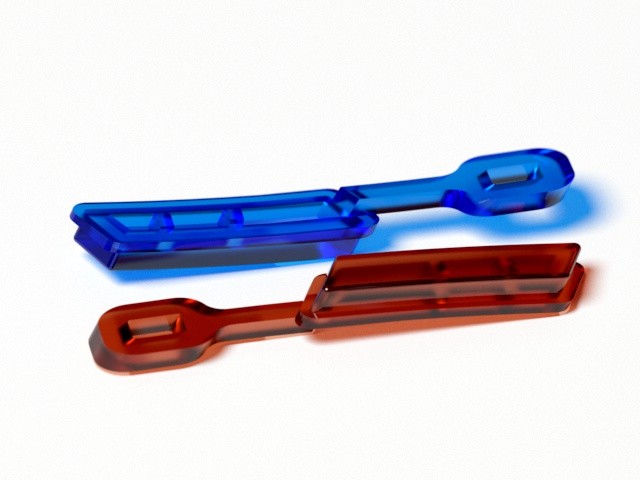

Display diagram



Transparent key (1*8)/ Cold runner / Two-plates mold No.19017-B 3Transparent key (1*8)/ Cold runner / Two-plates mold No.19017-B 4Transparent key (1*8)/ Cold runner / Two-plates mold No.19017-B 5Transparent key (1*8)/ Cold runner / Two-plates mold No.19017-B 6
