OEM / ODM ： Hot Runner Injection Molding & Left + Right Eye Shell 1+1 No 23056-B
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Camera |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 350.00 X 400.00 X 351.00 | IMM Tonnage | 110T |
|---|---|---|---|
| Mold Weight | 277kg | Mold Base | 7 |
| Type | Two-plates Mold (side Gate Mold) | Injection/runner Type | Hot Runner |
| Part Material | PC | Steel Of Cavity & Core | 1+1/S136 Harden |
| High Light | precision hot runner injection molding,two plates hot runner injection molding,polycarbonates hot runner injection molding |
||
Product Description
Left + Right Eye Shell (1+1)
No.23056-B

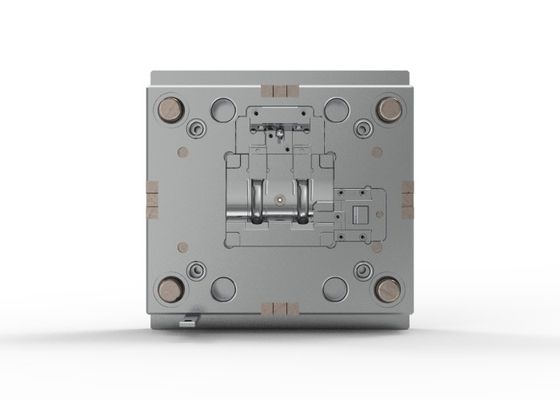

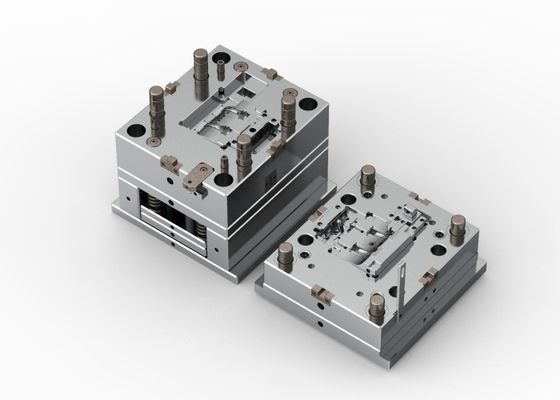

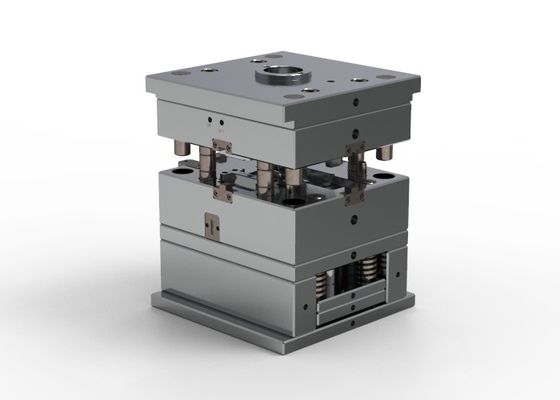

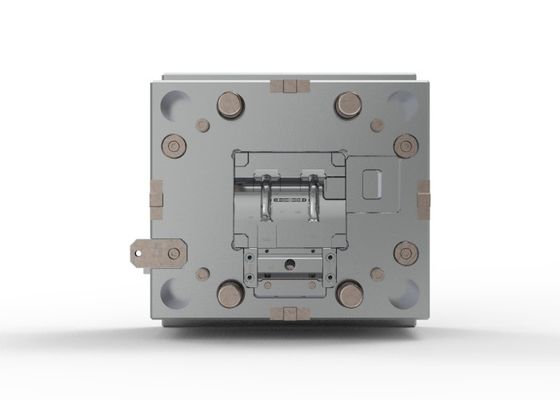

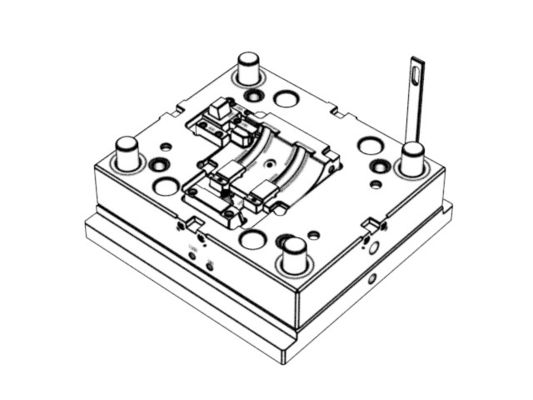

| The custom mold base ED3035 1 set A70-B100-C100 is a two-plates mold with a size of 350x400x351. It has a sub gate for injection and is made according to the LKM standard. The mold has a net weight of 277kg and is suitable for an injection molding machine with a tonnage of 110T. It has a mold life of 500K shots and features 2 slides, 2 angled slides, and 2 lifters. |

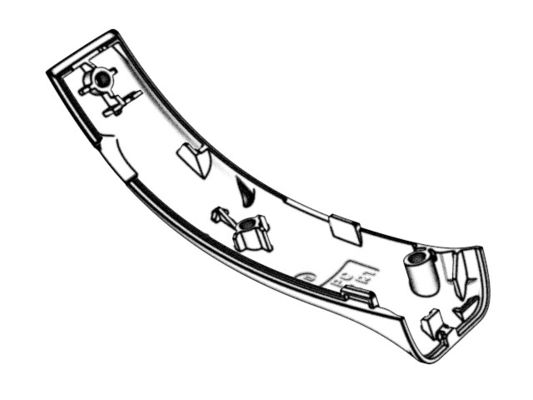

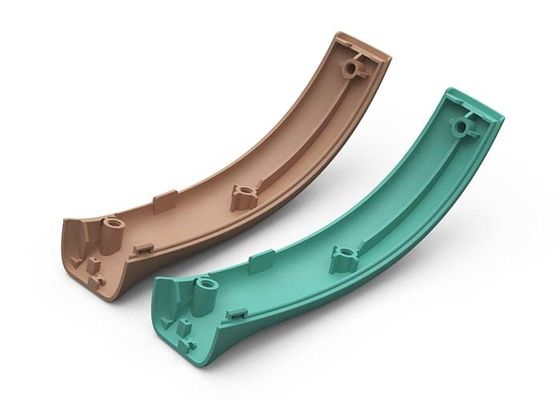

| The injection part is made of PC material and weighs 2.5g. Its size is 58.64 X 16.99 X 37.70mm. The injection type is hot runner, and the runner type is also hot runner. The surface finish is A surface VDI24 etch. The cavity and core of the mold are made of 1+1/S136 hardened steel. |
Display diagram
