OEM / ODM ： Cold Runner Injection Molding & Transparent Glasses Inner Housing 1*1 No.23057-B
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Camera |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 350.0000 X 450.0000 X 446.0000 | IMM Tonnage | 140T |
|---|---|---|---|
| Mold Weight | 425kg | Runner | Cold Runner |
| Mould Life | ≥500000 Shots | Mould Base | LKM |
| Design Software | (3D)UG 4.0/ (2D）CAD | Material | PC |
| Gate Type | Sub Gate | ||
| High Light | 500000 shots cold runner injection molding,3plates cold runner injection molding,polycarbonates injection molding cold runner |
||
Product Description
Transparent Glasses Inner Housing (1*1)
No.23057-B

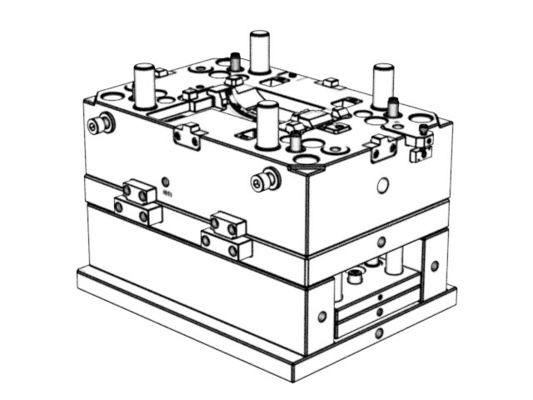

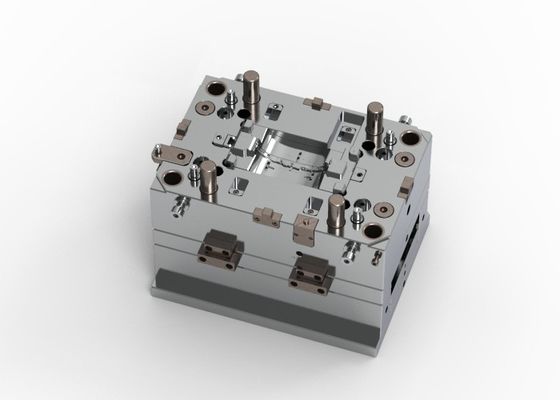

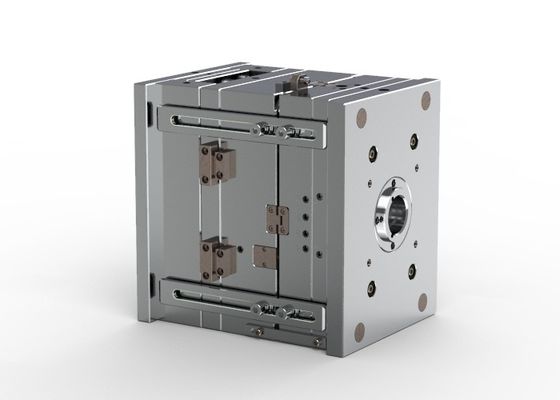

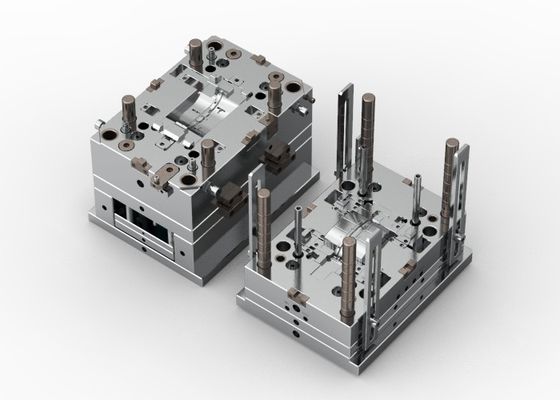

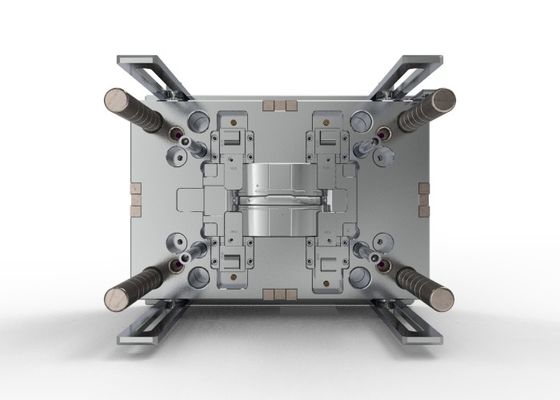

| This mold is a three-plates mold with a size of 350x450x446mm. It is built on a DAI3045 70120100 mold base and follows the LKM standard. The unique feature of this mold is its self-degating mechanism, which eliminates the need for obvious gates and enhances the aesthetic appearance of the molded parts. It is equipped with 5 slides and 7 lifters, strategically placed for easy demolding. The tool life of this mold is 500k shots, ensuring durability and longevity. |

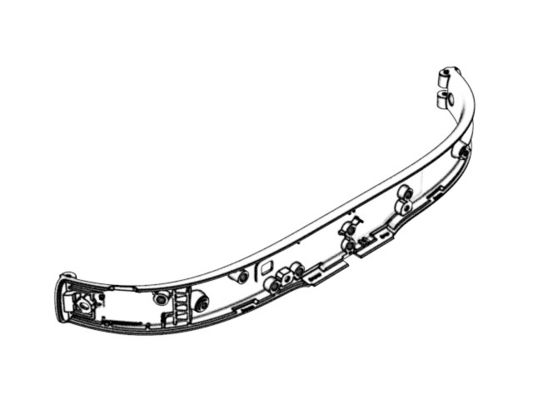

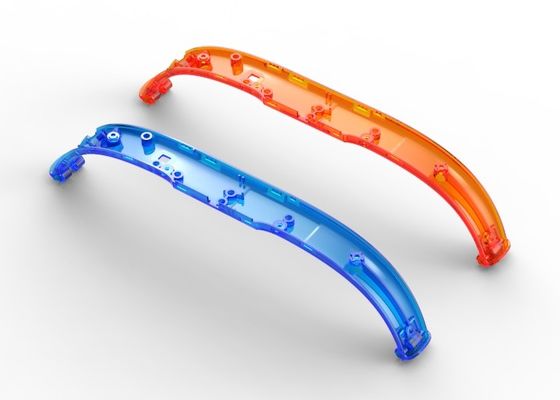

| The part material used is PC, and the gate type is a sub gate, which is invisible on the mold surface. The cavity and core are made of hardened steel with a 1*1/S136 composition. The injection type is Cold Runner, and the required IMM tonnage is 140T. The mold itself weighs 425kg, and the weight of the molded part is 4.6g. The dimensions of the part are 17.00 X 147.90 X 33.24mm. |
Display diagram
