OEM / ODM ： Hot Runner Injection Molding & Right Belt 1*2 No 23187-B
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | VR Products |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | 1 Slide And 5 Lifters | Size | 550*650*551 |
|---|---|---|---|
| IMM Tonnage | 280T | Mold Weight | 1188kg |
| Type | Two Plate Mold | Injection/runner Type | Cold Runner |
| Standard | LKM | ||
| High Light | plastic hot runner injection molding,hot runner injection molding two plate,two plate runner injection molding |
||
Product Description

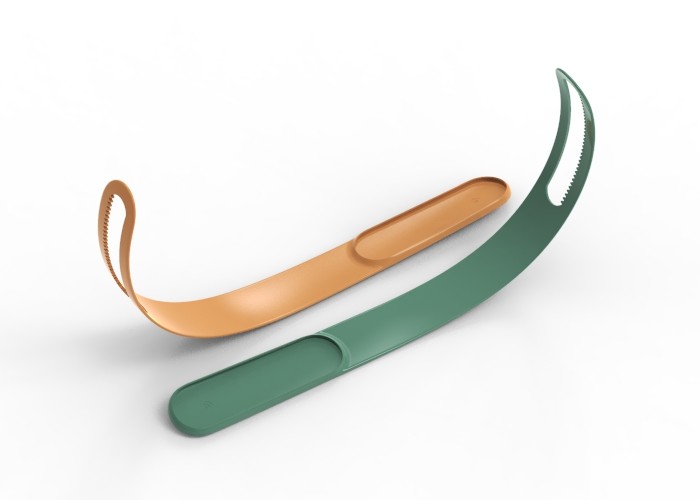

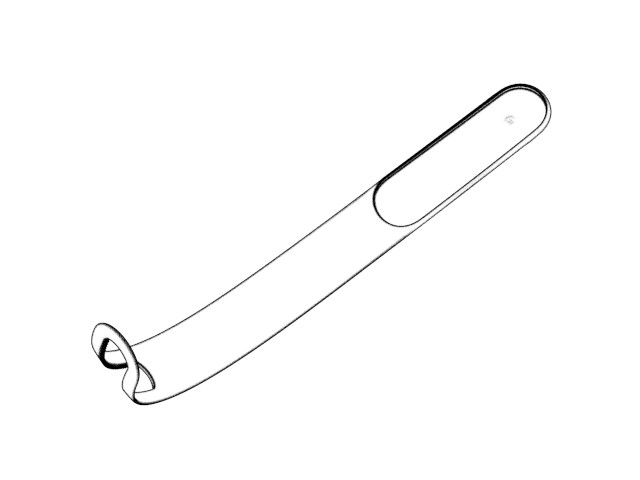

Right belt (1*2)
No.23187-B
| Introducing a mold with impressive dimensions, measuring Length: 550mm, Width: 650mm, and Height: 551mm. This mold showcases a Cashew gate, adhering to the esteemed LKM standard. The cavity and core are meticulously hardened with 1*2/S136 steel, ensuring exceptional durability and performance. |
| Employing a Cold runner injection/runner type, this mold features 1 slide and 5 lifters, facilitating smooth and precise demolding. The chosen part material is PC, resulting in molded parts with high precision and a flawless surface, free from burrs and overflow. With a tool life of up to 500k shots, this mold guarantees longevity and reliability. |
| Notably, the molded part weighs 25.5g and measures 31mm X 344mm X 6.35mm. With a weight of 1188kg, this mold requires an impressive IMM tonnage of 280T. |
Display diagram
