OEM / ODM ： Hot Runner Injection Molding & Transparent Flat Front Shell (1*1) No.23603-B
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Tablets |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 450.00 X 500.00 X 556.00 | IMM Tonnage | 180T |
|---|---|---|---|
| Mold Weight | 395kg | Type | Three-plates Mold |
| Tool Life | 500k Shots | Part Material | PC+20%GF |
| Part Weight | 42g | Mold Base | Custom FCI4050.7014090. |
| Standard | LKM | Steel Of Cavity And Core | Harden (1*1/S136) |
| Injection/runner Type | Hot Runner |
Product Description

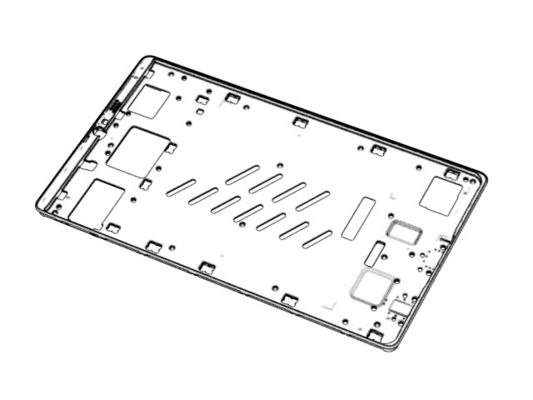

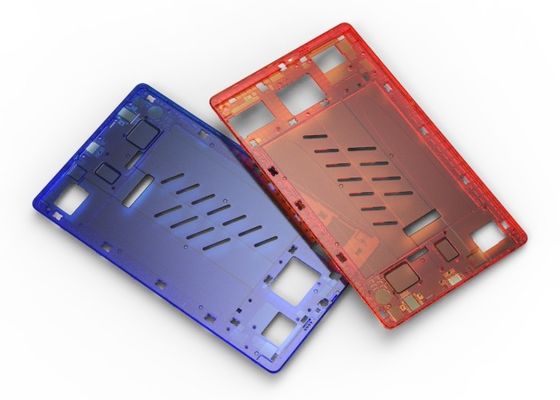

Transparent Flat Front Shell (1*1)
No.23603-B
Description:
| Our company specializes in the production of Hot Runner Injection Molding, a highly advanced manufacturing process for plastic parts. This technology involves the use of a specialized system that maintains the plastic material in a molten state as it flows through the mold, resulting in efficient and precise production. The key characteristics of Hot Runner Injection Molding are as follows: Elimination of Runner Waste: Unlike traditional injection molding methods, Hot Runner Injection Molding eliminates the need for a separate runner system. This leads to reduced material waste and lower production costs. Improved Product Quality: The hot runner system ensures consistent and uniform flow of the molten plastic material, resulting in high-quality finished products. It minimizes defects such as flow marks, weld lines, and uneven wall thickness. Enhanced Efficiency: Hot Runner Injection Molding enables faster injection and cooling cycles, reducing production time and increasing overall efficiency. This allows for higher productivity and quicker turnaround for our customers. Design Flexibility: With Hot Runner Injection Molding, we can produce complex and intricate parts with ease. The technology offers greater design flexibility, allowing for the creation of customized and innovative products. |
Application:
iPad
Consumer digital products
Product shell
Daily necessities
gift
auto parts
Digital Accessories
Features:
| Mold base: | Custom FCI4050.7014090. |
| Length | 450 |
| Width | 500 |
| Height | 556 |
| Net weight | 600kg |
| Type | Three-plates mold |
| Tool life | 500k shots |
| Part material | PC+20%GF |
| Part weight | 42g |
| Part size | 123.98 X 211.74 X 7.19mm |
| Surface finish | A surface polished to 800# sandpaper |
| Gluing surface (jet & PSA) EDM with VDI21# | |
| Other surfaces EDM with VDI27# | |
| Standard | LKM |
| Steel of cavity and core | Harden (1*1/S136) |
| Injection/runner type | Hot runner |
| Gate | pin point gate |
| IMM tonnage | 180T |
|

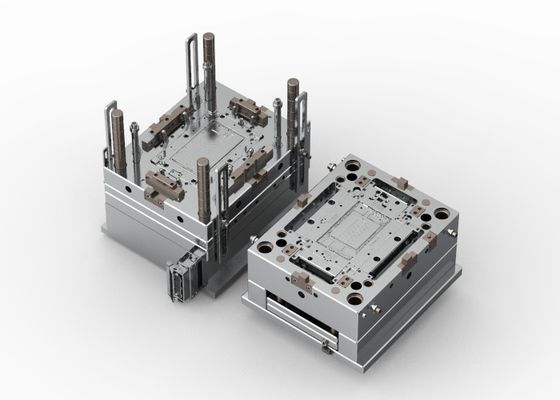

Designed with 4 slides and 8 lifters, 2x hot runner valve gates turn to cold runner pin point gates, self-degating, and minimized pressure loss |
|
Advantage:
| Our company excels in the manufacturing of Precision Injection Molds, which offer a multitude of advantages in producing top-notch plastic parts. Precision Injection Molding is a state-of-the-art process that guarantees utmost precision and efficiency, enabling the creation of intricate and complex designs with impeccable accuracy. Here are the key benefits of Precision Injection Molding: 1.Superior Surface Finish: With Precision Injection Molding, we achieve exceptional surface finish and intricate detailing on the parts. Our molds are meticulously designed to minimize imperfections like sink marks and warpage, resulting in flawlessly smooth and visually appealing finished products. 2.Tight Tolerance Control: Precision Injection Molding allows us to produce parts with incredibly tight dimensional tolerances. Our molds are crafted with utmost attention to detail, ensuring precise replication of the desired specifications, no matter how demanding they may be. 3.Cost-Effective Production: Precision Injection Molding offers cost-effective production solutions. By optimizing material usage and minimizing waste, we reduce production costs significantly. Moreover, the exceptional precision and accuracy of our molds result in fewer rejected parts, further enhancing cost efficiency. Our commitment to excellence in Precision Injection Molding sets us apart, enabling us to deliver superior quality products that meet the most stringent requirements of our valued customers. |

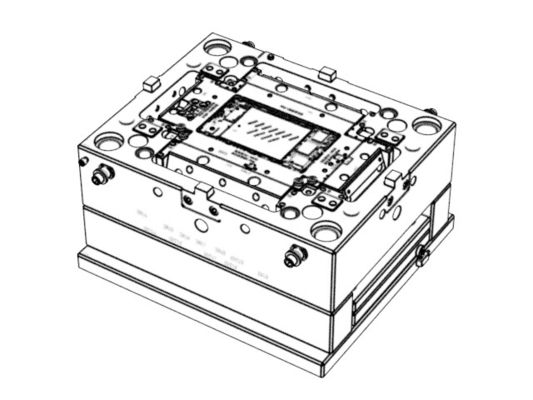

Display diagram
