OEM / ODM ： Hot Runner Injection Molding & Transparent On-board Foot Rest (1*2) No.23914-B
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | In-Car Products |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 450.000 X 650.000 X 548 | IMM Tonnage | 130T |
|---|---|---|---|
| Mold Weight | 1075kg | Part Material | PA+50% GF |
| Mold Base P/N | CI4065A85B130C110 | Standard | LKM |
| Tool Life | 500k Shots | Slide/Lifter | 3/3 |
Product Description

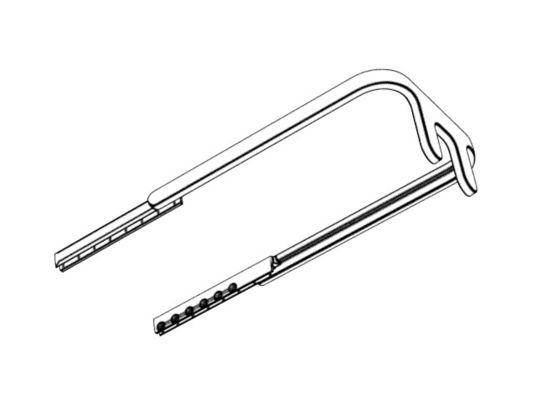

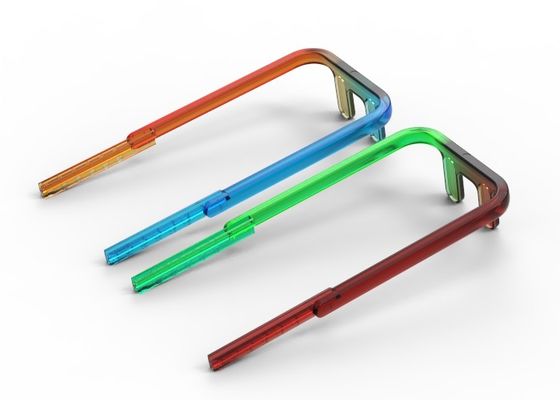

Transparent On-board Foot Rest (1*2)
No.23914-B
Description:
| We utilize hot runner injection molding technology, which is an advanced method of plastic molding. By using a heated runner system, we are able to precisely inject molten plastic resin into the mold cavities, resulting in high-quality plastic parts. Compared to traditional molding methods, hot runner injection molding reduces material waste, improves production efficiency, and ensures part consistency and precision. This technology enables us to produce aesthetically pleasing, dimensionally accurate plastic parts that meet our customers' demand for high-quality products. |
Application:
Car accessories
Digital product accessories
plastic shell
Features:
| Standard | LKM - Chinese general injection mold standard |
| Size | 450x650x548mm |
| Mold net weight | 1075kg |
| Mold base P/N | CI4065A85B130C110 |
| Part material | PA+50% GF-Nylon + 50% glass fiber |
| Part size/weight | 61.00x130.95x28.34mm/7.75g |
| Type | Two-plates mold -Low cost, simple structure and short molding cycle |
| Gate | Sprue gate -Low pressure loss; easy to manufacturing |
| Tool life | 500k shots |
| Surface finish |
① A surface EDM to Charmilles VDI24# ② Internal surfaces polished with SPI-B1 The mold surface EDM with Charmilles VDI24#, molded part with smooth, touch-friendly surface(have certain friction felling),internal surface polished to SPI-B1, avoiding scractch and good for part removal. |
| Steel of cavity & core |
Harden (1*2/S136) - Harden cavity / core with high hardness, anti-wearing, anti-corrosion, with long tool life and can meet the requirements of mass production. |
| Injection/runner type | Hot runner |
Advantage:
| Our hot runner injection molding molds offer several practical advantages. They enable the production of intricate and precise plastic parts while minimizing material waste, thus contributing to cost savings and environmental sustainability. The use of hot runner systems also results in improved production efficiency and faster cycle times, allowing us to meet tight deadlines and deliver products in a timely manner. Additionally, the superior part quality achieved through precise temperature and flow control ensures that our customers receive reliable and high-quality plastic components for their specific needs. |

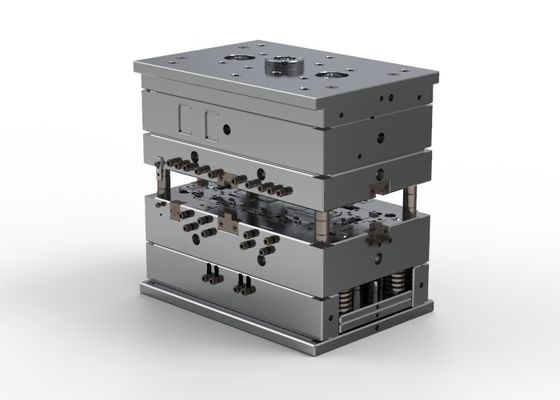

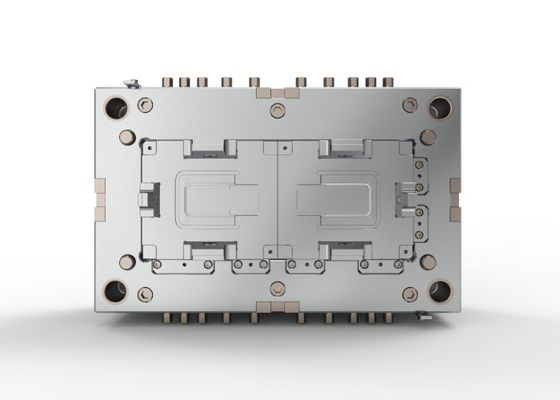

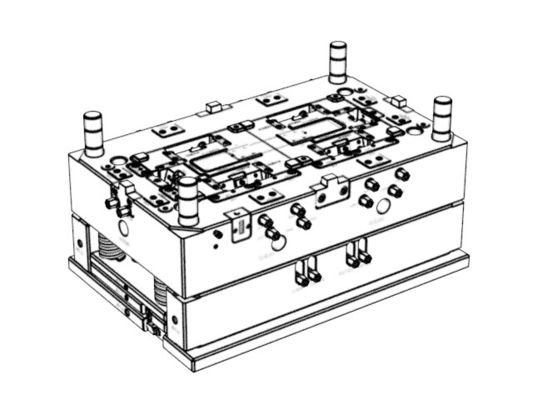

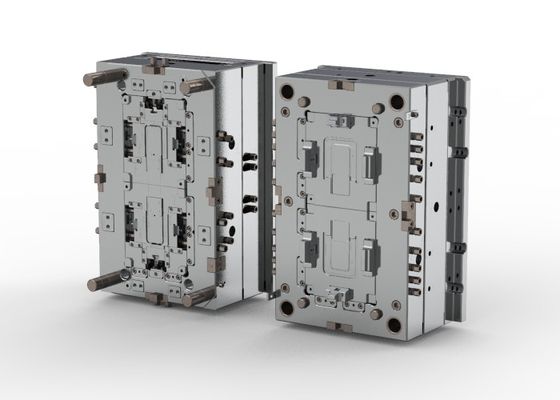

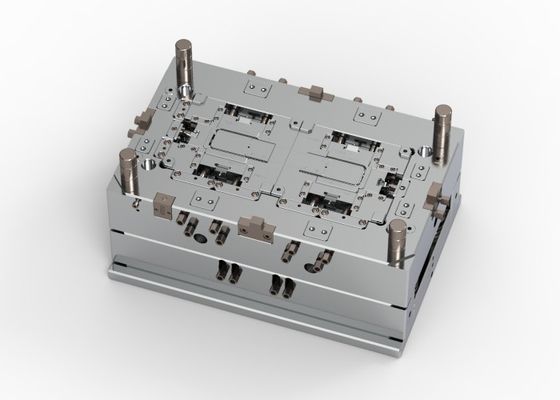

Display diagram
