OEM/ODM Key (1*8) plastic injection mold No.19017-C
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Overear Headphone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 300.000 X 300.000 X 291.000 | IMM Tonnage | 110T |
|---|---|---|---|
| Mold Weight | 155KG | Type | Two-plates Mold |
| Standard | LKM | Gate | Side Gate |
| Part Material | PC | Part Weight | 0.1g |
| High Light | cold runner system injection molding Key,cold runner system injection molding OEM |
||
Product Description

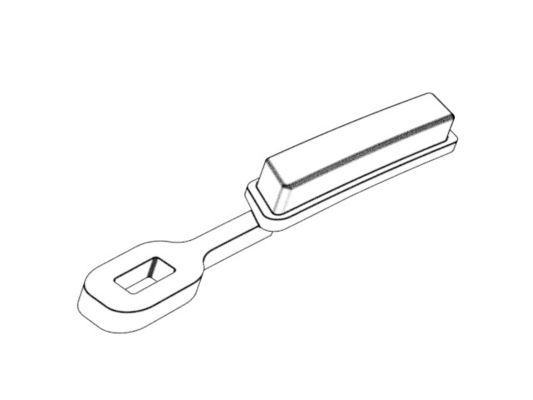

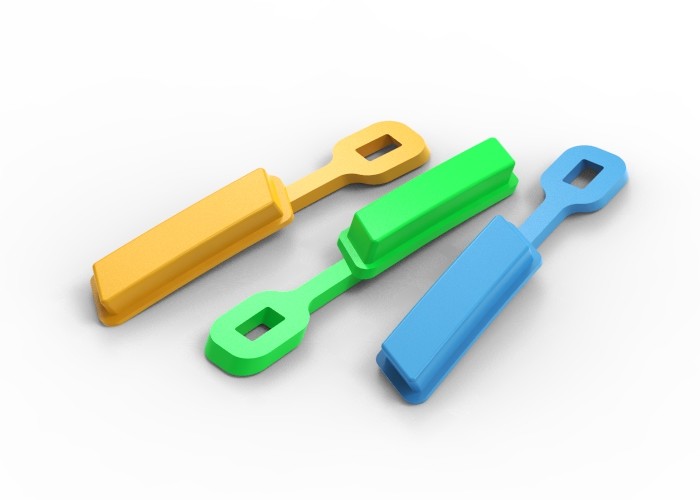

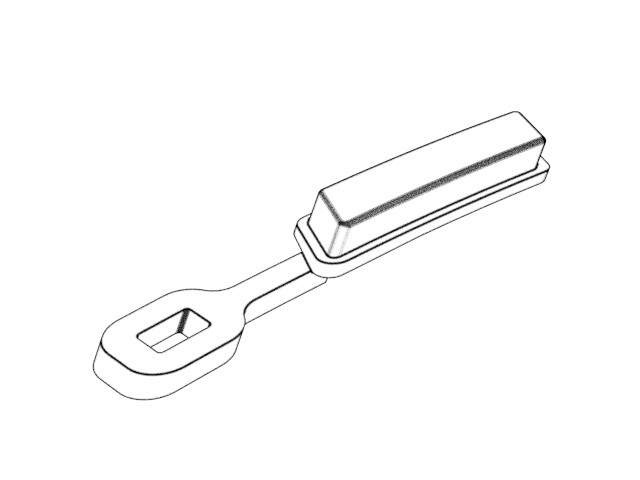

key (1*8)
No.19017-C

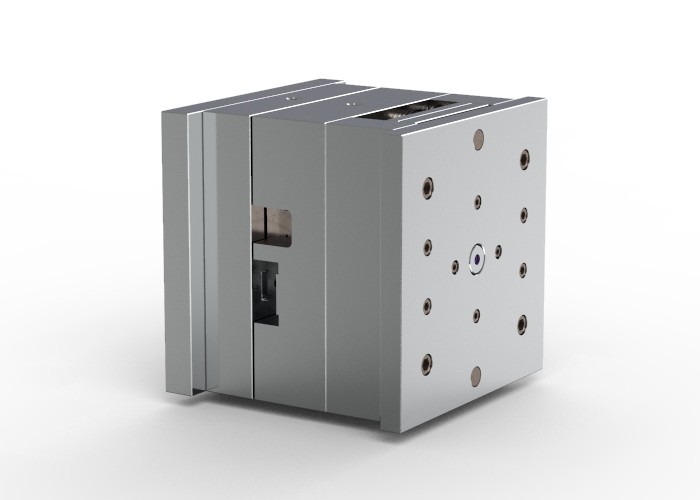

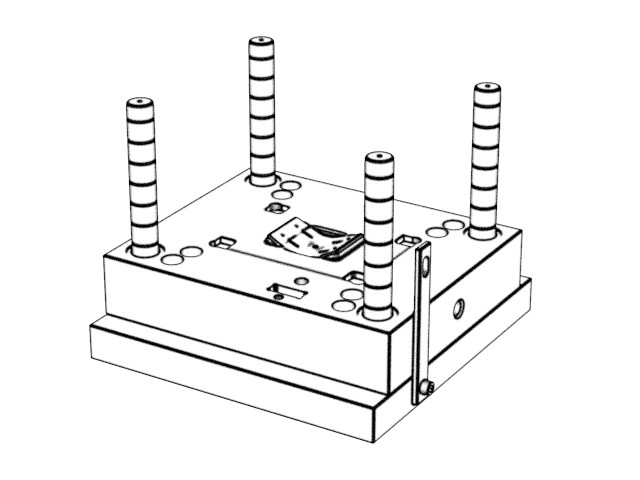

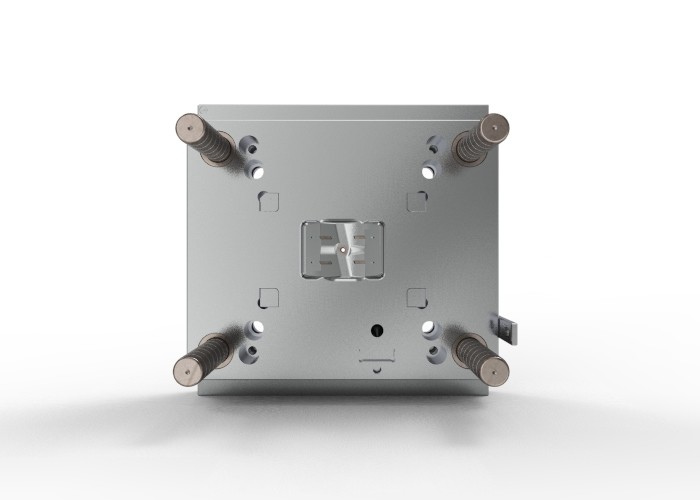

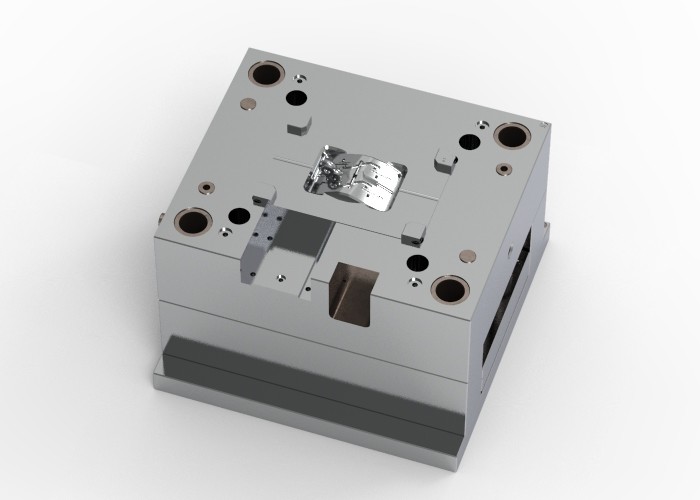

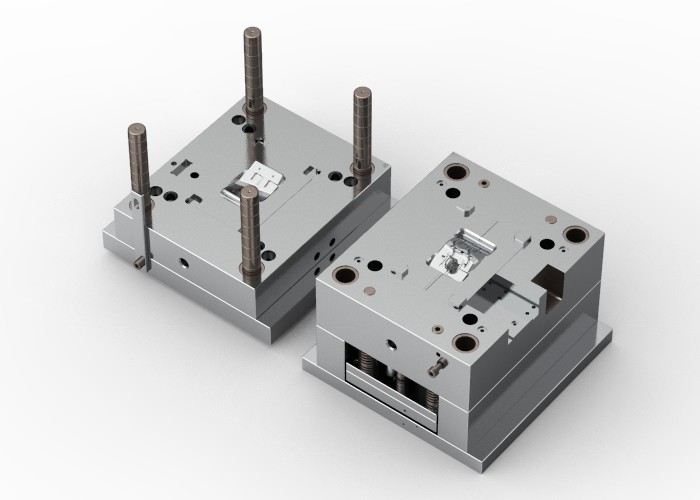

Description:
| The Cold runner / Two-plates mold is an essential tool in the production of plastic parts through the injection molding process. It comprises two primary plates: the cavity plate and the core plate, which together define the actual shape of the part being manufactured. The term "cold runner" refers to the unheated channels through which the plastic flows, potentially causing the material to cool and solidify within the channels, leading to material wastage when the solidified plastic in the runners needs to be removed and discarded. |
Application:
Electronic buttons
3C digital accessories
Drone accessories
electronic toy
Features:
| Introducing the Chitwing two-plates mold, built on an LKM mold base, renowned for its outstanding performance and durability. This mold is equipped with a side gate to ensure optimal material flow and is engineered to deliver a minimum of 500,000 shots, guaranteeing long-term reliability. Weighing 155kg and measuring 300mm in length, 300mm in width, and 291mm in height, this mold is compact and user-friendly. It is specifically designed for use with a 110T injection molding machine (IMM). Featuring a smooth surface, low roughness, and uniform wall thickness, this two-plates mold is mirror EDM finished with VDI 10#, while the cavity and core are hardened using 1*8/S136 for exceptional hardness, strength, wear resistance, and corrosion resistance. The mold boasts a tool life of up to 500,000 shots. Part material: PC Part Size: 3.92 X 20.70 X 11.42mm Part Weight: 0.1g Equipped with scientific vent holes and grooves for timely discharge of air and gas in the melt, the parts produced exhibit a smooth surface without burrs, shorter cycle times, no material shortage, absence of gas marks and flow marks, and minimized cold slug. |
Advantage:
| Our company specializes in the production of high-quality Cold runner / Two-plates molds, which are crucial in the manufacturing of plastic parts. These molds are meticulously designed and crafted to ensure precision and efficiency in the injection molding process. With a focus on durability and performance, our Cold runner / Two-plates molds are engineered to meet the diverse needs of our clients across various industries. We take pride in delivering reliable and cost-effective mold solutions that contribute to the success of our customers' production operations. |
Display diagram
