OEM /ODM : Coustom electronic enclosures mold / Transparent Beauty Instrument Upper Housing (1*8) No.24311
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Beauty Apparatus |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 350.000 X 400.000 X 451.000 | IMM Tonnage | 180T |
|---|---|---|---|
| Mold Weight | 395kg | Gate | Submarine Gate |
| Mold Life | 500k Shots | Type | Two-plates Mold |
| Design Software | <3D:UG 4.0>/ <2D:CAD> | Mould Base | LKM |
| Mould Type | Custom Mould | Mold Type | Plastic Injection Mold |
| Use | Plastic Mold Injection | Cavity Number | 2 |
| High Light | Instrument custom plastic mold,LKM custom plastic mold,500k Shots custom plastic mold |
||
Product Description

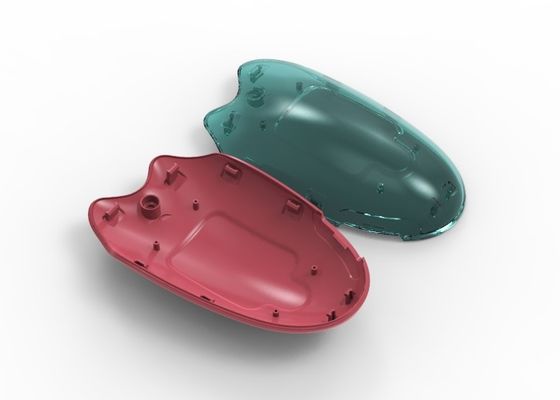

Transparent Beauty
Instrument Upper Housing (1*8)
No.24311
| Mold size | Length | Mold base P/N | |
| 350 | |||
| Width | CI3040 8012090 | ||
| 400 | |||
| Height | Standard | Lifter | |
| 451 | LKM | 9 | |
| Mold weight | Fit 180T machine. | ||||
| 385kg | |||||
| Gate | self-degating, ejection/ part remove smoothly. | ||||
| Submarine gate | |||||
| Type |
With simple mold structure, minimize tool overall size. Machine clamping force easy to fine / accurate tune. |
||||
| Two-plates mold | |||||
| Part material |
Glass fiber reinforced, which not only has high temperature resistance, good rigidity, but has excellent strength and surface gloss |
||||
| PPS+30%GF | |||||
| Part size | Weight 19.5g/pcs | ||||
| 63.56*110.62*20.88mm | |||||
| Injection/runner type |
This is a hot runner mold, can mold good quality part stably and no material loss of runner. |
||||
| Hot runner | |||||
| Surface finish |
A surfaces are well polished to sand paper 1000#, with nice glossiness, free of flow mark, clear details and nice looking. |
||||
| Steel of cavity & core |
The cavity and core are made from 1*8/S136 harden, with high hardness, anti-corrosion, anti-wearing, and have long tool life. |
||||

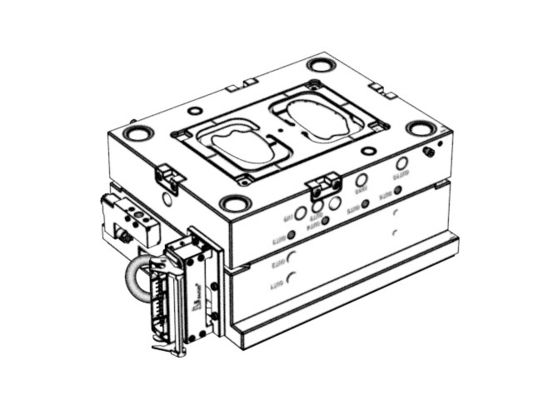

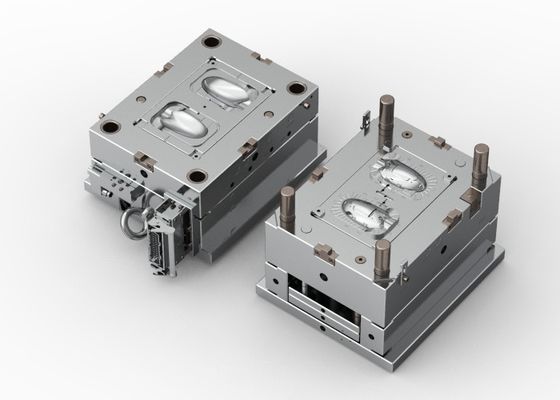

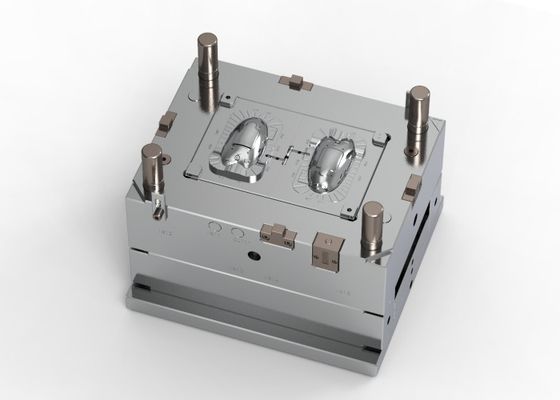

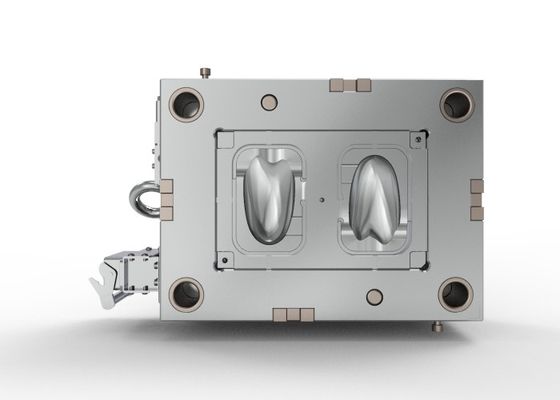

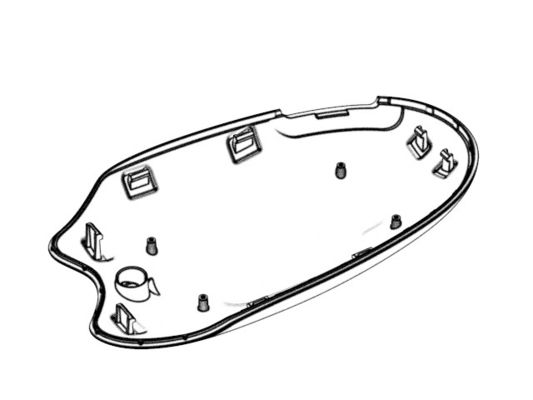

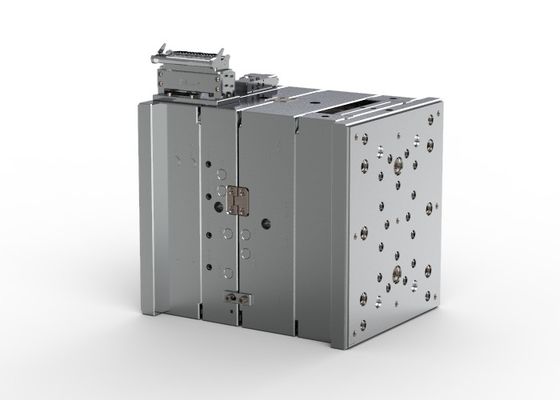

Display diagram
