OEM / ODM ：Custom electronic Enclosures mold / Beauty Instrument Base (1*8) No.24312
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Beauty Apparatus |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 450 X 500X 561（mm） | IMM Tonnage | 450（T) |
|---|---|---|---|
| Mold Weight | 820（kg) | Standard | LKM |
| Lifter | 4 | Tool Life | ≥500K Shots |
| Mold Type | Steel Mold | Injection Mold Manufacturer | Chitwing |
| Structure | Fixed Cavity + Movable Side + Runner Stripper Plate + Runner Plate | ||
| High Light | Beauty Base Hot Runner Injection Molding,PP Hot Runner Injection Molding,500k Shots pp injection moulds |
||
Product Description
Beauty Instrument Base (1*8)
No.24312
| Mold base P/N: AI4050 110110120. | |||||
| Mold size:450*500*561mm | |||||
| Mold net weight=820kg | Standard: LKM | ||||
| IMM Tonnage | 450(T) | 4 Lifter | |||
| ≥500K shots(Tool life ) | |
| Two-plates mold (compact structure, and machine clamping force can be accurately tuned) | |
| Part material/weight: PPS + 30% GF/135g/pcs Part size: ① 141.67 X 81.67 X 10.00mm ② 146.22 X 86.22 X 35.00mm |
|
| Injection/runner type | Hot runner |
|
(The mold is designed with a hot runner to ensure that the cavity is uniformly filled with melt with uniform pressure, so that the molded part has uniform high quality) |
|
Surface finish: A surface polished with 1000# sandpaper
(A surface polished with 1000# sandpaper to greatly improve the glossiness and make the
molding surface finer and smoother)
Steel of cavity & core: Harden (1*8/S136)
(Harden the cavity and core to greatly improve their hardness, greatly enhance the
anti-wearing and anti-corrosion performance, so that the mold is suitable for mass
production w/o quality decline)

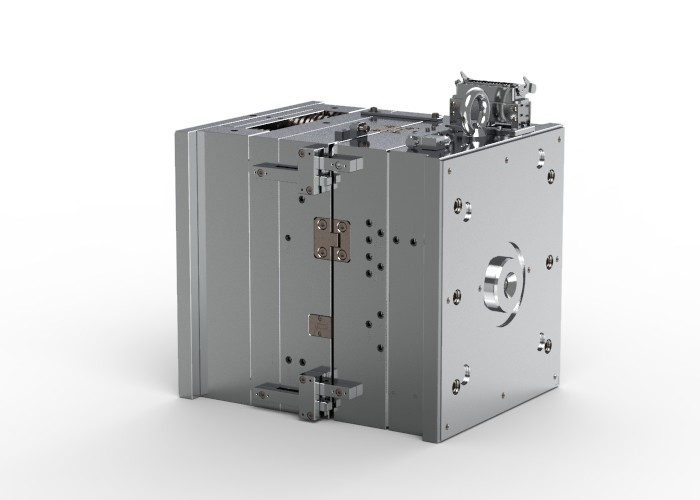

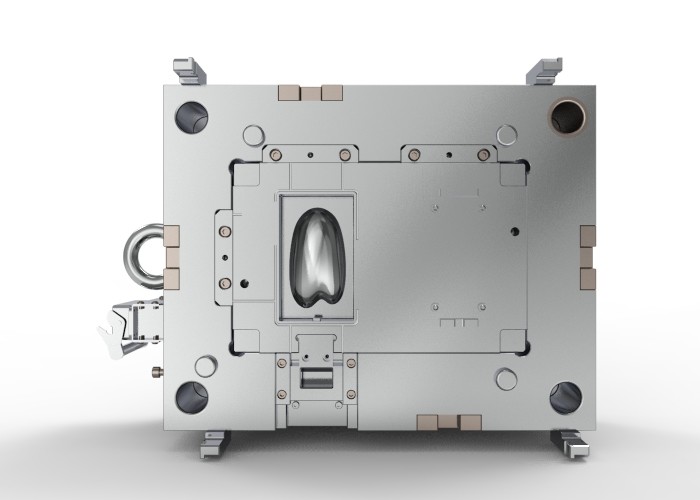

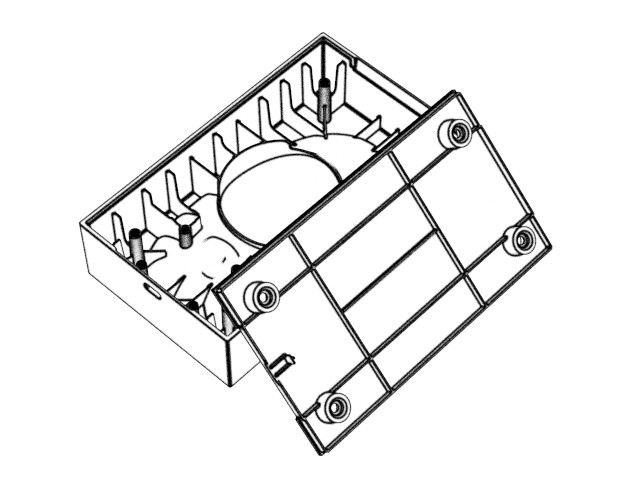

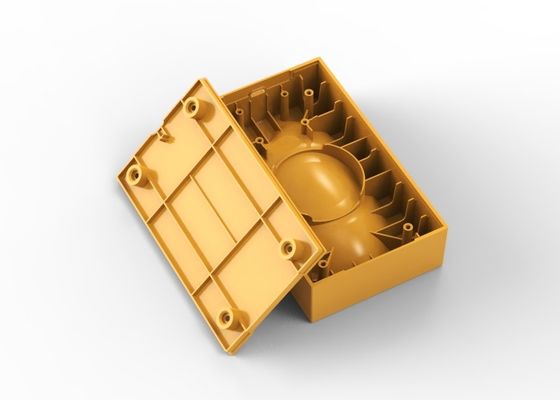

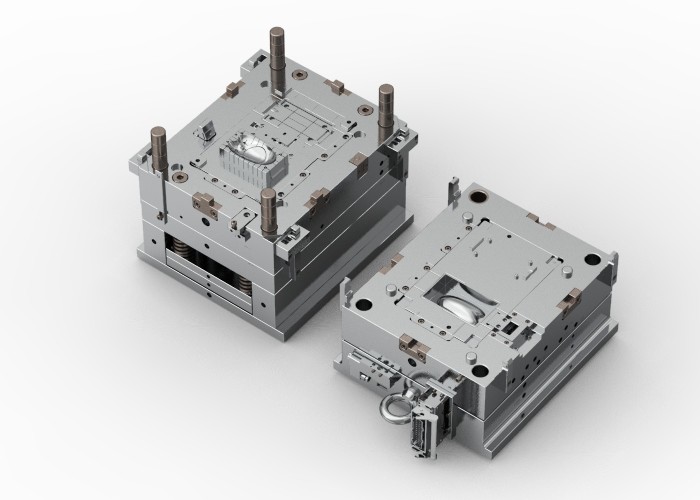

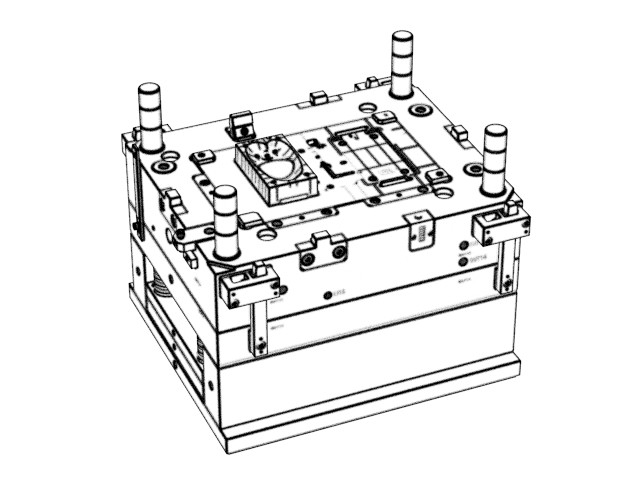

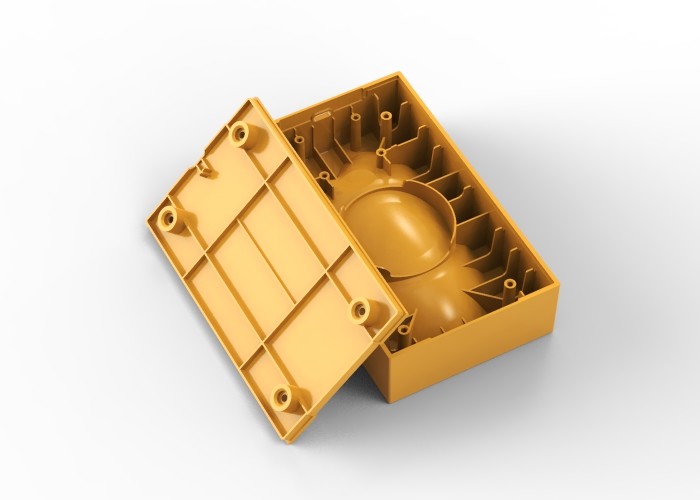

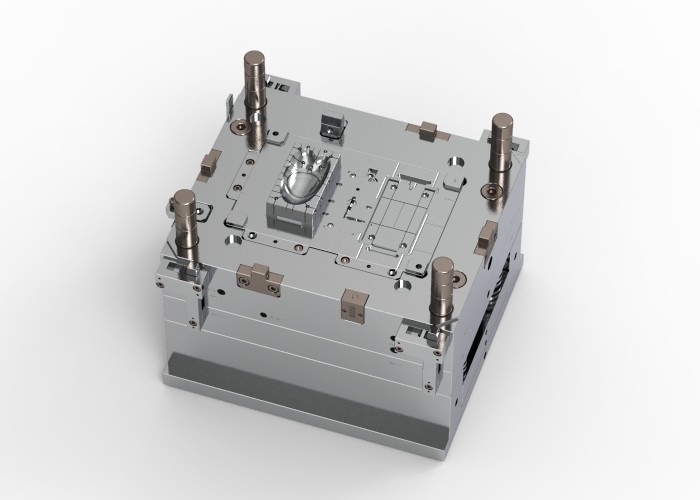

Display diagram
