OEM /ODM ：Consumer Electronics Molds / Transparent Beauty Instrument Base (1*8) No.24312
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Beauty Apparatus |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 450.000 X 500.000 X 561.000 | IMM Tonnage | 450T |
|---|---|---|---|
| Mold Weight | 820kg | Type | Two-plates Mold |
| Part Material | PPS + 30%GF | Standard | LKM |
| Injection/runner Type | Hot Runner | Mold Material | Steel Mold |
| High Light | Instrument Base Hot Runner Injection Moldin,450T Hot Runner Injection Molding,LKM PE Injection Molding |
||
Product Description

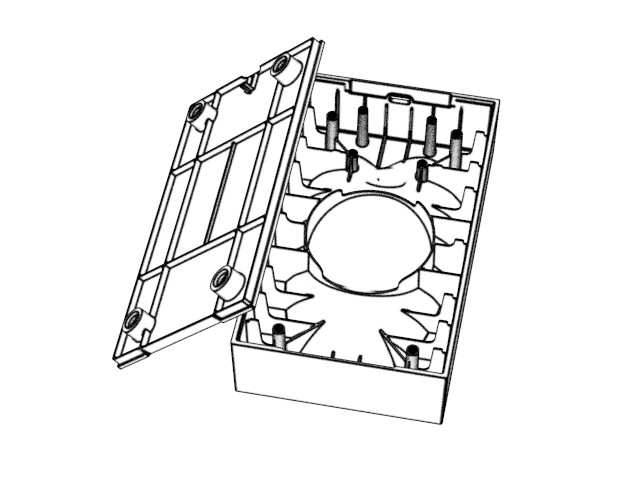

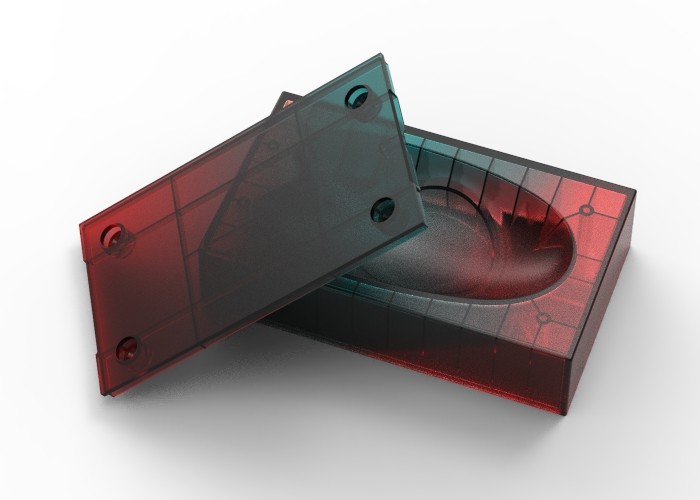

Transparent Beauty Instrument Base (1*8)
No.24312
| [Mold base P/N]: AI4050 110110120. | |||||
| [Mold size]: <L> 450 <W> 500 <H> 561 [Net weight]: 820 kg | |||||
| [IMM Tonnage]: 450T | |||||
| [Standard]: LKM (General plastic mold standard in China) | |||||
| [Lifter]: 4 |
| [Tool life]: ≥ 500K shots [Type]: Two-plates mold (machine clamping force can be accurately tuned) [Part material]: PPS + 30%GF [Part size]: ① 141.67 X 81.67 X 10.00mm ② 146.22 X 86.22 X 35.00mm [Part material]: PPS + 30%GF |
|||||
| [Injection/runner type]: Hot runner |
(The mold is designed with a hot runner to ensure that the cavity is uniformly filled with melt with uniform pressure, so the molded part has uniform high quality) |
||||
|
[Surface finish]: A surface polished with 1000# sandpaper make the molding surface finer and smoother) |
|||||
|
[Steel of cavity & core]: Harden (1*8/S136) anti-wearing and anti-corrosion performance, so that the mold is suitable for mass production and keep good quality) |
|||||

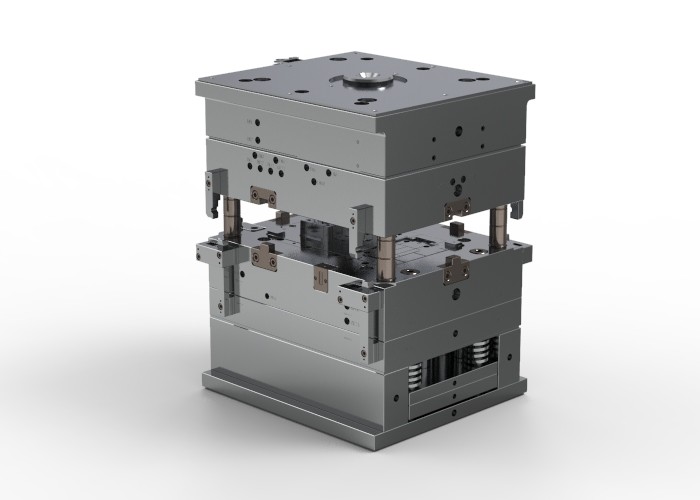

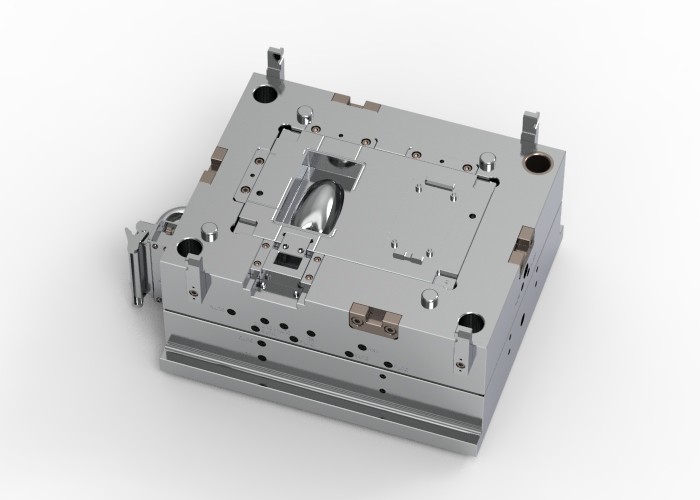

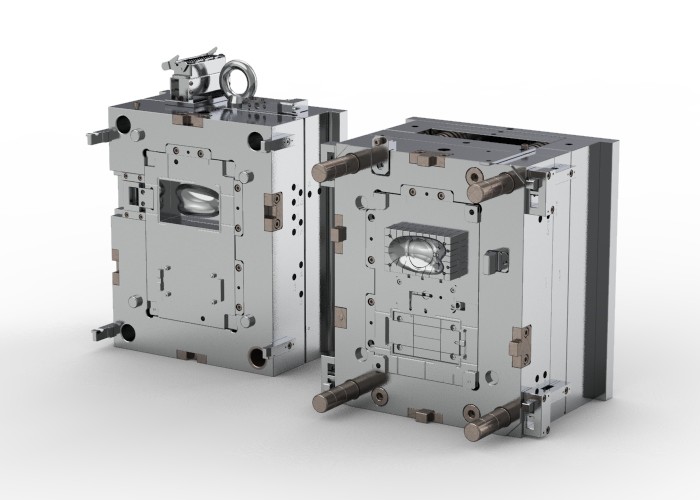

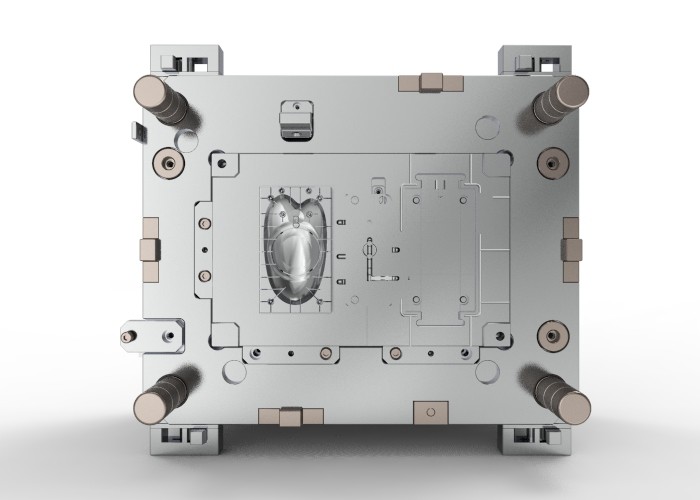

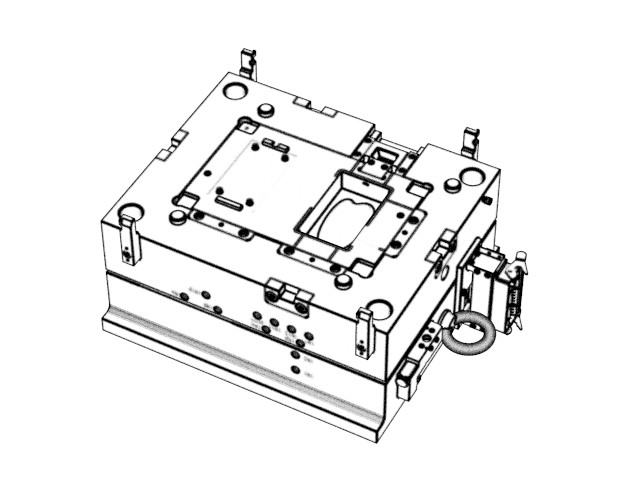

Display diagram
