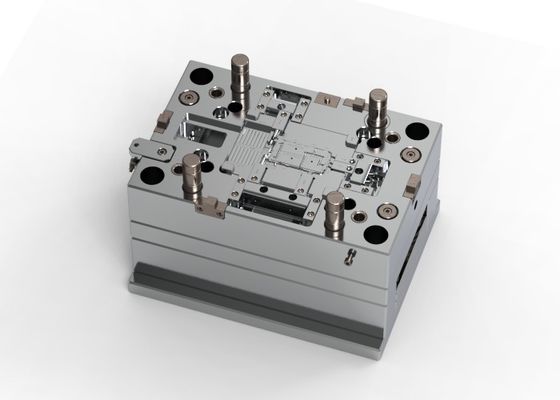

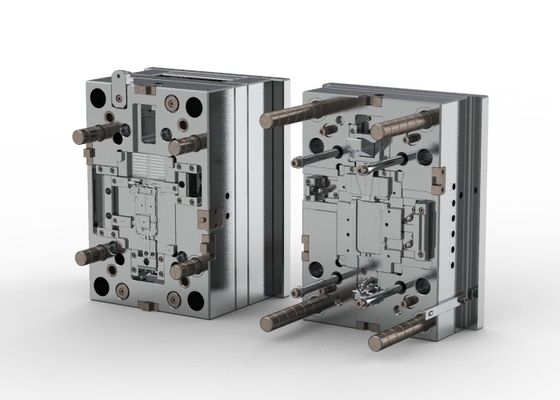

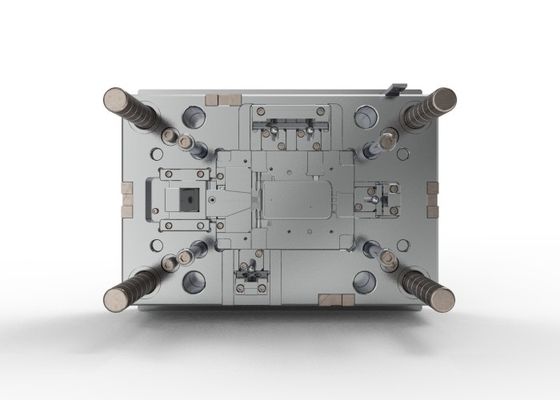

Transparent Clamshell Phone Front Cover (1*1) / Three-plates mold / Cold Runner No.21871
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Mobile Phone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 350.000 X 450.000 X 401.000 | IMM Tonnage | 110 T |
|---|---|---|---|
| Mold Weight | 390kg | Type | Three-plates Mold Structure |
| Slide | 6 | Lifter | 10 |
| Surface Finish | VDI24# | ||
| High Light | Phone Cover Precision Injection Molding,Cold Runner Precision Injection Molding,500k Shots Three Plate Mold |
||
Product Description

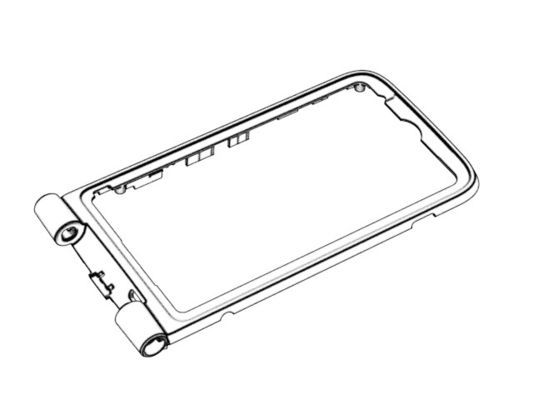

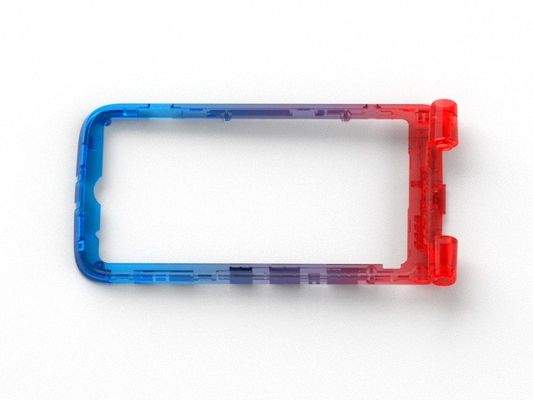

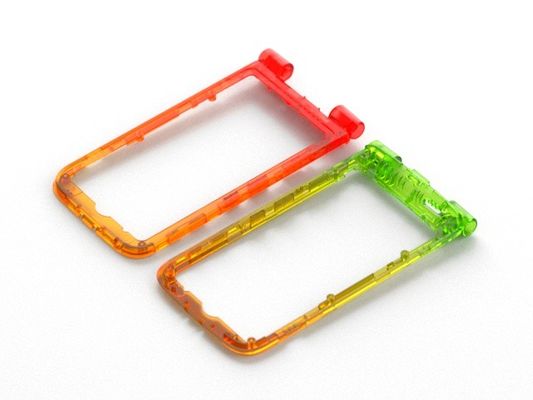

Transparent Clamshell Phone Front Cover (1*1)
No.21871
| [Mold size] | [Standard] | |
| L × W | Height | |
| * 350x450 | * 401 | |
| [Tool life] | * LKM | |
| * 500K shots | ||
| [Gate] | ||
| * Design with side gate | [Slide] | |
| Pin point gate to side gate | * 6 | |
| [Type] | [Lifter] | |

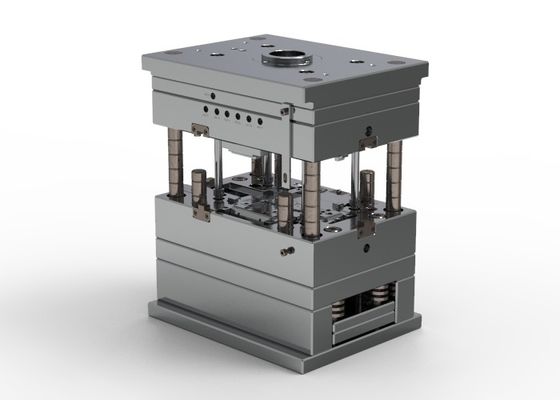

| * Three-plates mold structure | * 10 | |
| [Injection/runner type] | ||
| * Cold runner | ||
| [Surface finish] |
◇ Make the mold obtain a lower roughness, and the molded parts have smoother surface |
|||
|
- A surface EDM with VDI24# |
||||
|
[Steel of cavity & core] |
◇ Hardening greatly improves the physical hardness and wear resistance of the mold, and greatly improves the ability to resist corrosion |
|||
|
Harden (1*2/S136) |
||||
| [Mold net weight] | ||
| * 390kg | ||
| [Part Net Weight] | ||
| * 5g / 55.55X11.24X108.75mm | ||
| [IMM Tonnage] | ||
| * 110T |

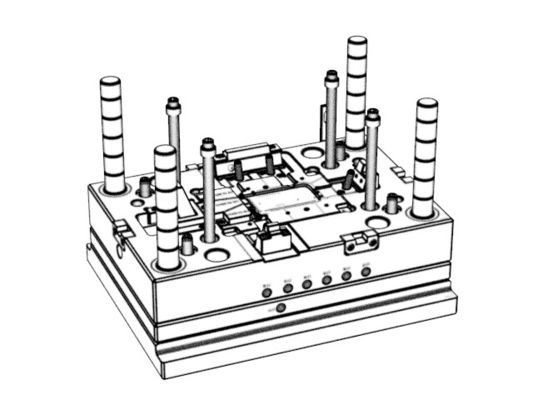

Display diagram
