OEM/ODM Custom Consumer Electronics Molds / Transparent earphone left rear cover trim (1*8) No.24215
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Earphone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 300 X 300 X 291 | IMM Tonnage | 100T |
|---|---|---|---|
| Mold Weight | 159KG | Standard | LKM |
| Injection/runner Type | Cold Runner | Type | Two-plates Mold |
| Lifters | 4 | Standard Mold Base P/N | CI2530.6010080. |
| Part Material | PC | Part Size | 9.90 X 4.61 X 31.60mm |
| Part Weight | 0.17g | Mold Type | Consumer Electronics Molds |
| High Light | Earphone Precision Injection Molding,LKM Precision Injection Molding,Cold Runner Two Plate Mold |
||

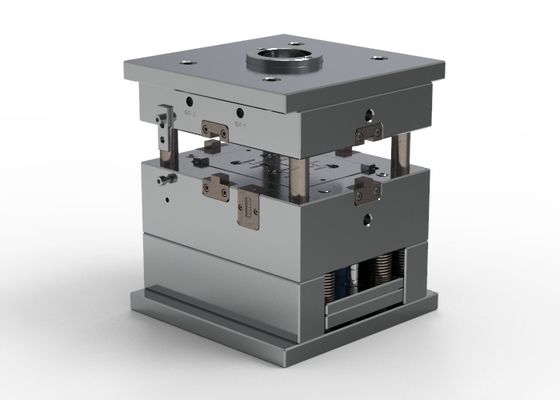

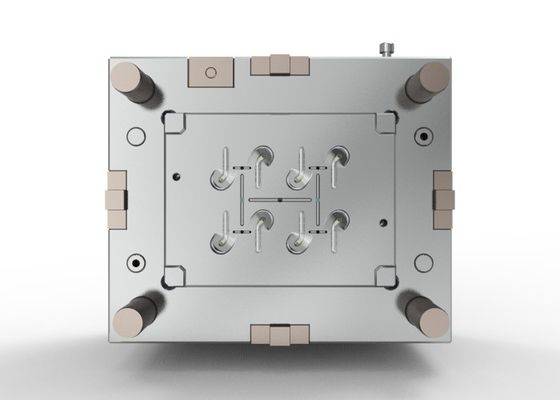

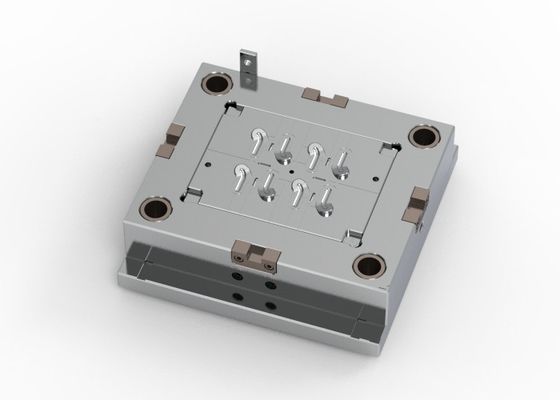

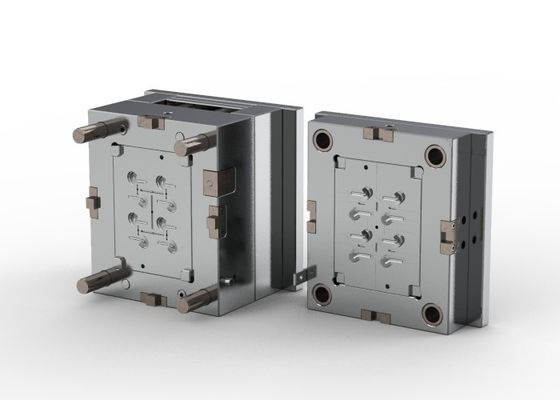

Product Description

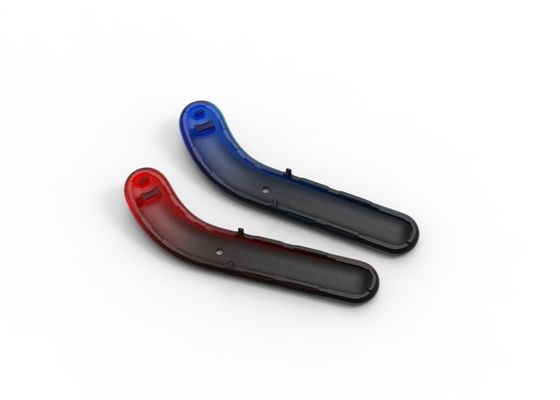

Transparent earphone
left rear cover trim (1*8)
No.24215
| Standard mold base P/N: CI2530.6010080. | |||||
| Length | 300 | Width | 300 | Height | 291 |
| Type | Two-plates mold | Partial surfaces polished to 1000# sandpaper | |||
|
Injection/runner type |
|||||
| Steel of cavity | Steel of core | ||
| Harden with 1*8/S136 | Harden with 1*8/S136 |
The mold is designed with cashew gate and 4 lifters and meet LKM standard. It has scientific
design, stable high quality, short cycle time, low cost, and the molded part has fine edges w/o
flash
| Part material | PC |
| Part size | 9.90 X 4.61 X 31.60mm |
| Part weight | 0.17g |
| IMM Tonnage | 100T |

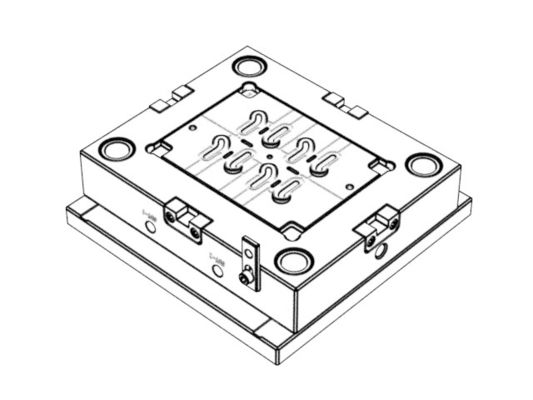

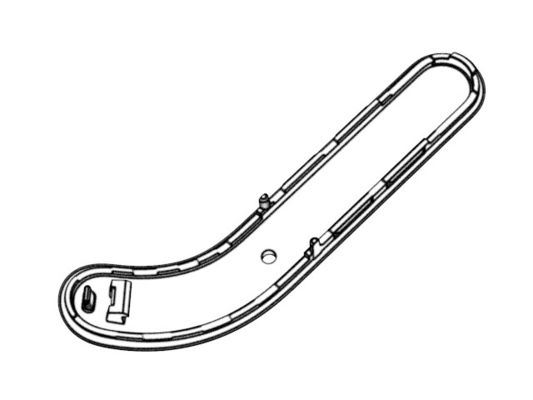

Display diagram
