OEM / ODM : custom molding / Earphone left rear cover inner bracket (1*8) No.24213
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Earphone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 250 X 250 X 241 | IMM Tonnage | 100T |
|---|---|---|---|
| Mold Weight | 92KG | Material | PC |
| Design Software | 3D:UG 4.0, 2D:CAD | Mould Life | ≥500000 Shots |
| Gate | Side Gate | Type | Two-plates Mold |
| Surface Finish | VDI24# | ||
| High Light | 500k Shots Precision Moulded Components,LKM Precision Moulded Components,100T Cold Runner Mould |
||
Product Description

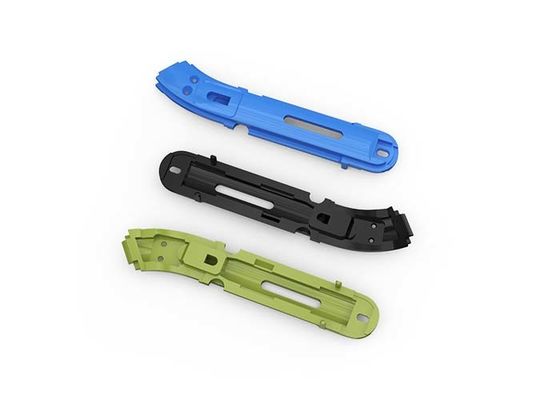

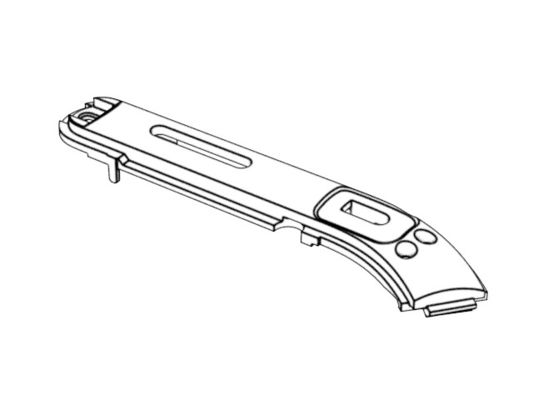

Earphone left rear
cover inner bracket (1*8)
No.24213
Standard mold base P/N: CI2020.507060.
| Length | Width | Height |
| 250 | 250 | 241 |
| Mold net weight | Part net weight | IMM Tonnage |
| 92kg | 0.11g | 100T |
| Injection/Runner Type: Cold runner | Gate: side gate | Type: Two-plates mold |
Part size: 5.99 X2.7 X27.25mm
| Surface finish | Steel of cavity | Steel of core | |||
| Partial surface EDM with VDI24# | Harden with 1*8/S136 | Harden with 1*8/S136 |
The mold was developed (designed and manufactured by Chitwing, LKM standard, with tool life
up to 500k shots, short cycle time, minimized cold slug and low production cost

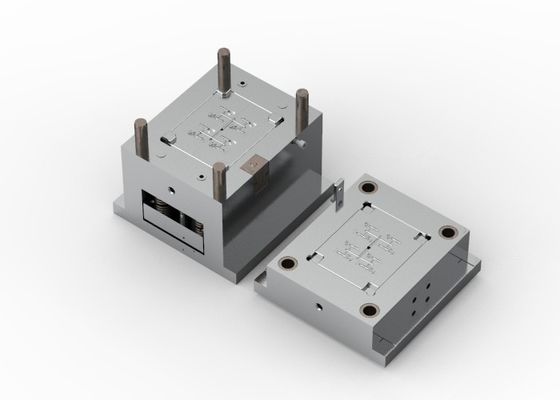

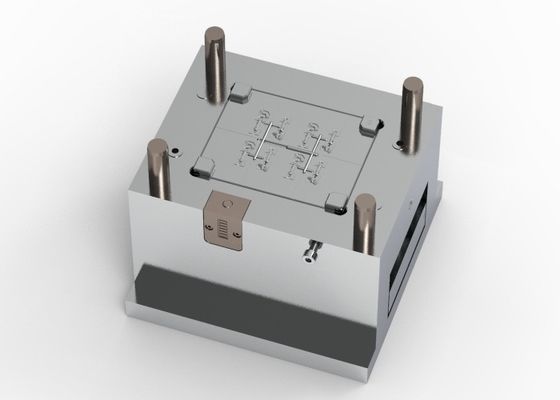

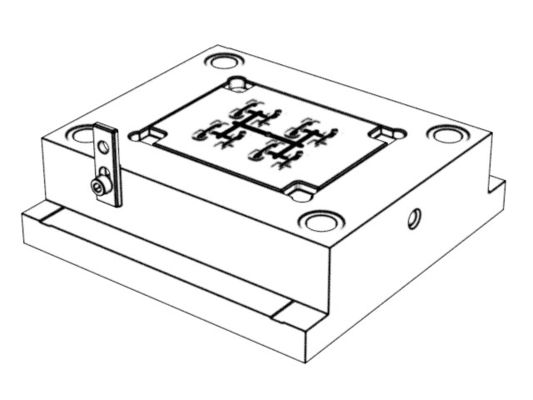

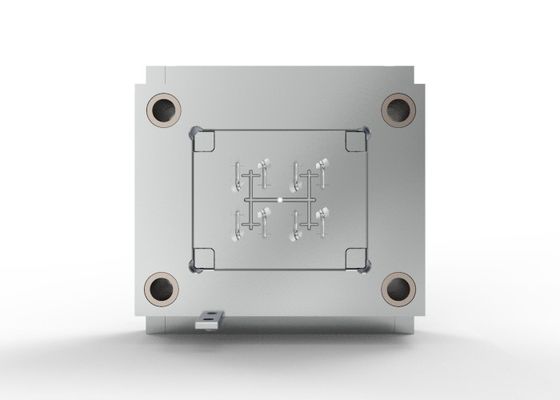

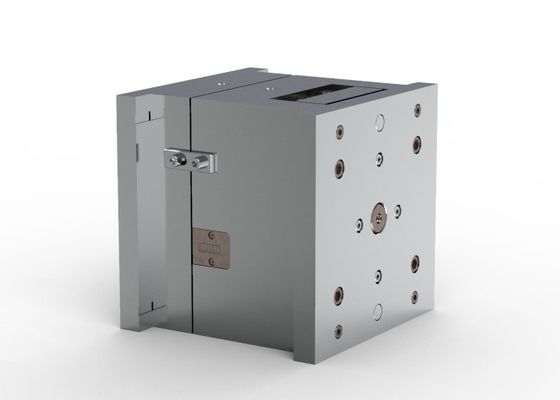

Display diagram
